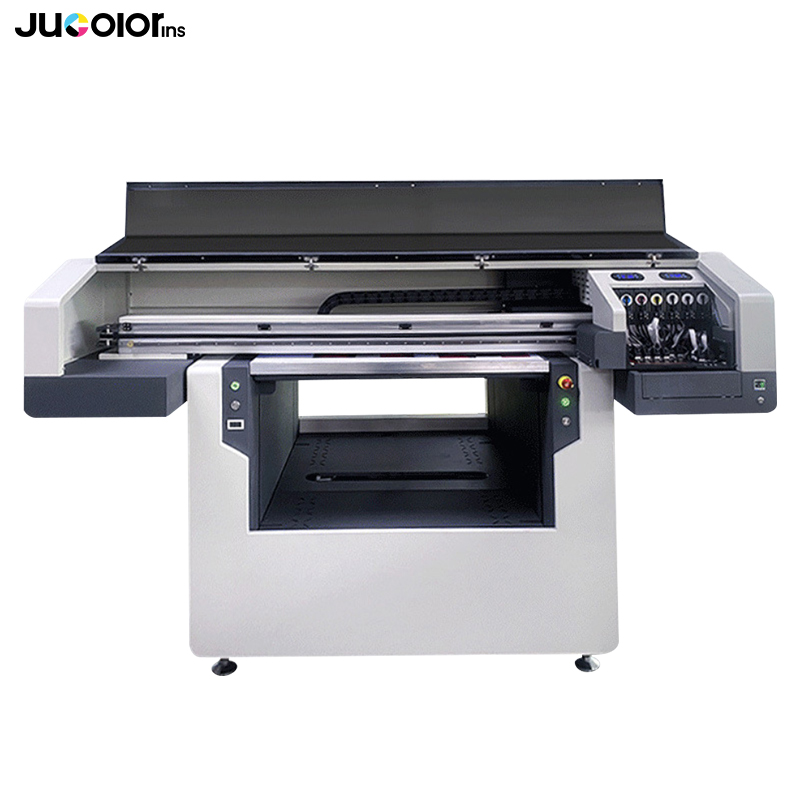

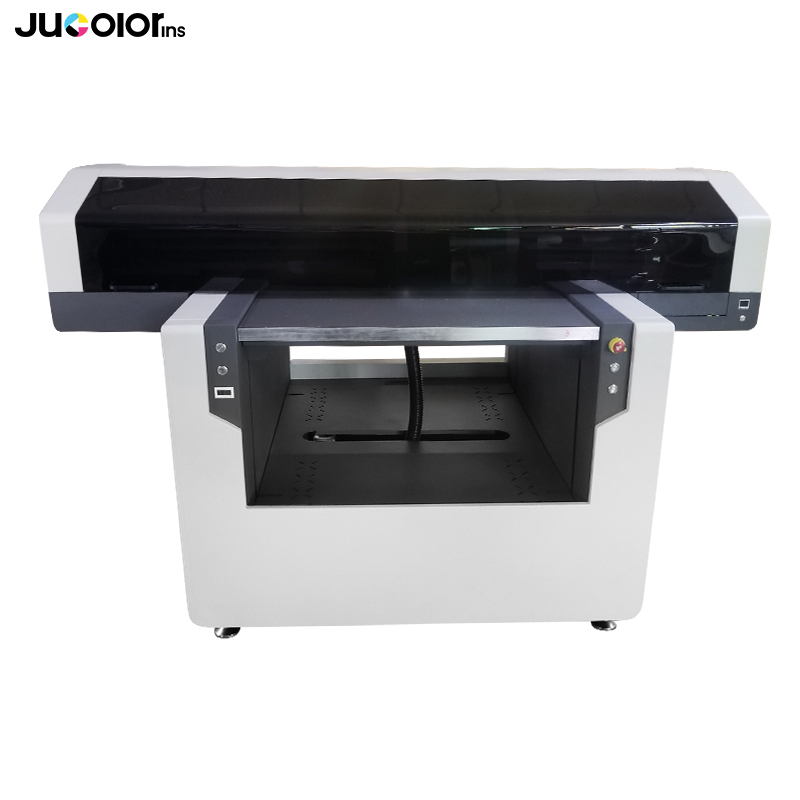

CJ-R9090UV A1+UV Printer
CJ-R9090UV A1+ flatbed UV printer adopts UV-led curable & direct printing technology(No plate making). equipped with Japan Ricoh industrial level GH2220/G5I print heads, 3.5PL drop volume, Negative pressure system for inks supply, effectively guarantees life of print head and high-quality print output.
|Product Name||Jucolor CJ-R9090UV A1+ Flatbed Printer
||Features||1.Ricoh print head high-quality printing|
|Machine Type||Automatic Flatbed Large UV Inkjet Printer||2.Total 6 Ball-screws driver on Y-axis and Z-axis|
|Printer Head||2-8 PCS Ricoh GH2220/G5i Print Heads||3.Rugged aluminum alloy machine structure|
|Max Printing Size||90*90 CM/35*35 Inch||4.Aluminum alloy automatic cleaning unit|
|Max Printing Gap||50 CM/19 Inch||5.Vacuum adsorption table with margin rule mark|
|Height Adjustment||Automatic with Sensor||6.Leakage protection device|
|Ink Color||Cyan, Magenta, Yellow, Black,White, Varnish||7.Max print height is 50CM|
|Ink Type||UV LED Curing Ink||8.Printing on most material directly|
|Ink Supply System||Negative pressure automatic ink supply system||9.Can printout with 3D emboss effect|
|Ink Supply||1000ml/Bottle||10.Finished product is water and scratch proof|
|Ink Consumption||9-15ml/SQM.||Operation System||Microsoft Windows 98 / 2000/XP/Win7/Win8/Win10|
|UV Curing System||LED UV lamp (Water Cooling)||Languages||English/Chinese|
|RIP Software||Maintop 6.0 or PhotoPrint DX Plus||Interface||USB2.0/3.0 Port|
|File Format||EPS/TIFF/PSD/BMP/JPG||Driving Power||110 V/ 220 V|
|Printing Method||Drop-on-demand Piezo Electric Inkjet||Power Consumption||1000 W|
|Printing Resolution||720*600dpi/720*900dpi/720*1200dpi||Working Environment||20 ~ 28 ℃ HR40-60%|
|Printing Speed||8 pass 6 m²/h||Power Requirement||50/60HZ 220V(±10%)<5A|
|Printing Direction||Smart Bi-directional Printing Mode||Machine Dimension||210*128*136 CM|
|Printing Quality||True Photographic Quality||Packing Size||230*135*145 CM|
|Applicable Materials||Pen,Phone Case,Bottle,Mug,Ceramic Tile,Lighter,Gift Box,USB,Card||Machine Net Weight||400 KG|
|Metal, Wood, Glass, Plastic, Leather, PVC, Marble,Paper,TPU,Etc||Gross Weight||550 KG|
|Media Feeding System||Auto/Manual||Packing||Plywood Case|
APPLICATIONS & SAMPLES
MORE PRODUCT DESCRIPTION
FACTORY PACKING & SERVICE
To provide customers with the best service are our eternal goal.
* We are original manufacturer who design and produce our printers,our own professional engineer team knows well about
* One to one professional technical operation free training ,remote guidance maintenance,online technical service is more speedy and efficiency
* Long-term supply of high quality oniginal ink and spare parts.
Q1:Are you the manufacturer?
A: Yes, our factory specialized in the UV printer, t-shirt printer and eco solvent printer in Shanghai. Welcome to visit us, and it will be great if you are interested to be our agent in your country.
Q2:How can we start to use the printer ?
A:When you got the printer ,our engineer will service you at first ,They will tell you how to start and teach you use it one by one until you can use it by yourself
Q3:where can I purchase more inks or parts from?
A:Our factory also provide inks ,kinds of rotary and other parts,you can buy from us or other suppliers in you local market
Q4:What's the printing cost ?
A:Usually the A3 full size cost about 0.06USD So the printing cost is very low
Q5:Does the uv printer can print the 3D embossed effect ?
A:yes ,its can print out that effect ,please contact us for more information and printing videos
Q6:How to maintenance the printer ?
A:About the maintenance ,we suggest to power on the printer once a day .If you don't use the printer more than 3 days ,please clean the print head with cleaning liquid and put in the protective cartridges on the printer ,protective cartridges are specially used for protect print head
Leakage protection device
