Printing on Cylindrical Jucolor High-Resolution Water Bottle A1 UV Printer

Short Description:


  • Print Size: 90*90 CM/35*35 Inch
  • Print Height: 50 CM/19 Inch
  • Print Heads: 2-8 Pcs Ricoh Gh2220 3.5PL /G5i
  • UV Inks: CMYK White Varnish
  • Advantage: Negative Pressure System
  • Contact Us: https://wa.me/8618221750691
  • Product Detail

    Product Tags

    uv cylinder printer

    CJ-9090 UV printer with 2-8 pcs Ricoh industrial level GH2220/G5I print heads, 3.5PL drop volume, Negative pressure system for inks supply, effectively guarantees life of print head and high-quality print output.

    bottle rotary printer

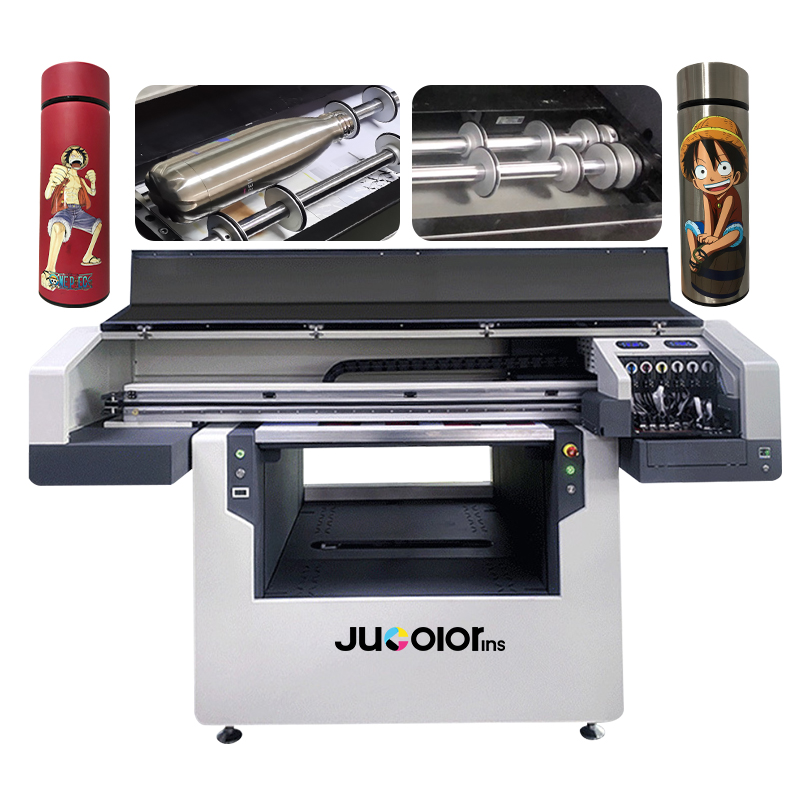

    Jucolor A1+ UV wrap around printer ,with rotary jig can print 2-5 pcs bottles onece time,It can instant dry in prints directly on the entire surface of the Cup, beer & wine bottle, Beverage cans etc.High commercial value

    varnish uv machine

    Jucolor A1 uv led printer with 2-8 pcs print heads can print CMYK white and varnish inks together ,printout with 3D embossed glossy effect ,which let the items more gorgeous and valuable.

    high jet uv printing

    Jucolo A1+uv led printer with industrial-grade Ricoh print heads, 14mm high drop print, can be used to print luggage, speakers, footballs, and other irregular items, which expands the scope of the printing and brings more business opportunities for you

    Product Name Jucolor CJ-R9090UV A1+ Flatbed Printer
    Features 1.Ricoh print head high-quality printing
    Machine Type Automatic Flatbed Large UV Inkjet Printer 2.Total 6 Ball-screws driver on Y-axis and  Z-axis
    Printer Head 2-8 PCS Ricoh GH2220/G5i Print Heads 3.Rugged aluminum alloy machine structure
    Max Printing Size 90*90 CM/35*35 Inch 4.Aluminum alloy automatic cleaning unit
    Max Printing Gap 50 CM/19 Inch 5.Vacuum adsorption table with margin rule mark
    Height Adjustment Automatic with Sensor 6.Leakage protection device
    Ink Color Cyan, Magenta, Yellow, Black,White, Varnish 7.Max print height is 50CM
    Ink Type UV LED Curing Ink 8.Printing on most material directly

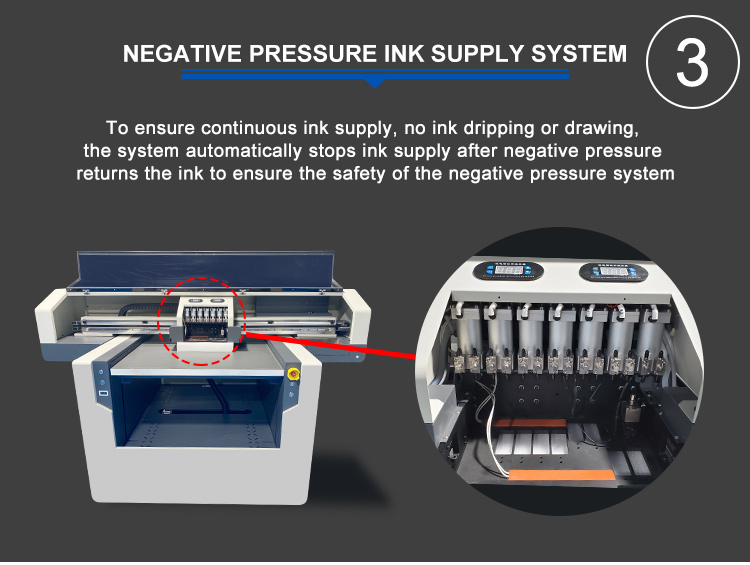

    Ink Supply System Negative pressure automatic ink supply system 9.Can printout with 3D emboss effect
    Ink Supply 1000ml/Bottle 10.Finished product is water and scratch proof
    Ink Consumption 9-15ml/SQM. Operation System Microsoft Windows 98 / 2000/XP/Win7/Win8/Win10
    UV Curing System LED UV lamp (Water Cooling) Languages English/Chinese
    RIP Software Maintop 6.0 or PhotoPrint DX Plus Interface USB2.0/3.0 Port
    File Format EPS/TIFF/PSD/BMP/JPG Driving Power 110 V/ 220 V
    Printing Method Drop-on-demand Piezo Electric Inkjet Power Consumption 1000 W
    Printing Resolution 720*600dpi/720*900dpi/720*1200dpi Working Environment 20 ~ 28 ℃ HR40-60%
    Printing Speed 8 pass 6 m²/h Power Requirement 50/60HZ 220V(±10%)<5A
    Printing Direction Smart Bi-directional Printing Mode Machine Dimension 210*128*136 CM
    Printing Quality True Photographic Quality Packing Size 230*135*145 CM
    Applicable Materials Pen,Phone Case,Bottle,Mug,Ceramic Tile,Lighter,Gift Box,USB,Card Machine Net Weight 400 KG
    Metal, Wood, Glass, Plastic, Leather, PVC, Marble,Paper,TPU,Etc Gross Weight 550 KG
    Media Feeding System Auto/Manual Packing Plywood Case

    2

    APPLICATIONS & SAMPLES

    uv-printer-samples

    2

    MACHINE ADVANTAGE

    uv printer with ricoh headuv printerA1 uv printer9060 uv flatbed printerA1 inkjet printer

    2

    MORE PRODUCT DESCRIPTION

    uv printer

    uv printer A1

    uv printer 6090

    2

    CUSTOMERS FEEDBACK

    uv-printer-feedback

    2

    FACTORY PACKING & SERVICE

    uv printer supplier

    To provide customers with the best service are our eternal goal.

    * We are original manufacturer who design and produce our printers,our own professional engineer team knows well about
    * One to one professional technical operation free training ,remote guidance maintenance,online technical service is more speedy and efficiency
    * Long-term supply of high quality oniginal ink and spare parts.

    FAQ

    Q1:Are you the manufacturer?

    A: Yes, our factory specialized in the UV printer, t-shirt printer and eco solvent printer in Shanghai. Welcome to visit us, and it will be great if you are interested to be our agent in your country.

    Q2:How can we start to use the printer ?

    A:When you got the printer ,our engineer will service you at first ,They will tell you how to start and teach you use it one by one until you can use it by yourself

    Q3:where can I purchase more inks or parts from?

    A:Our factory also provide inks ,kinds of rotary and other parts,you can buy from us or other suppliers in you local market

    Q4:What's the printing cost ?

    A:Usually the A3 full size cost about 0.06USD So the printing cost is very low

    Q5:Does the uv printer can print the 3D embossed effect ?

    A:yes ,its can print out that effect ,please contact us for more information and printing videos

    Q6:How to maintenance the printer ?

    A:About the maintenance ,we suggest to power on the printer once a day .If you don't use the printer more than 3 days ,please clean the print head with cleaning liquid and put in the protective cartridges on the printer ,protective cartridges are specially used for protect print head

    Leakage protection device
