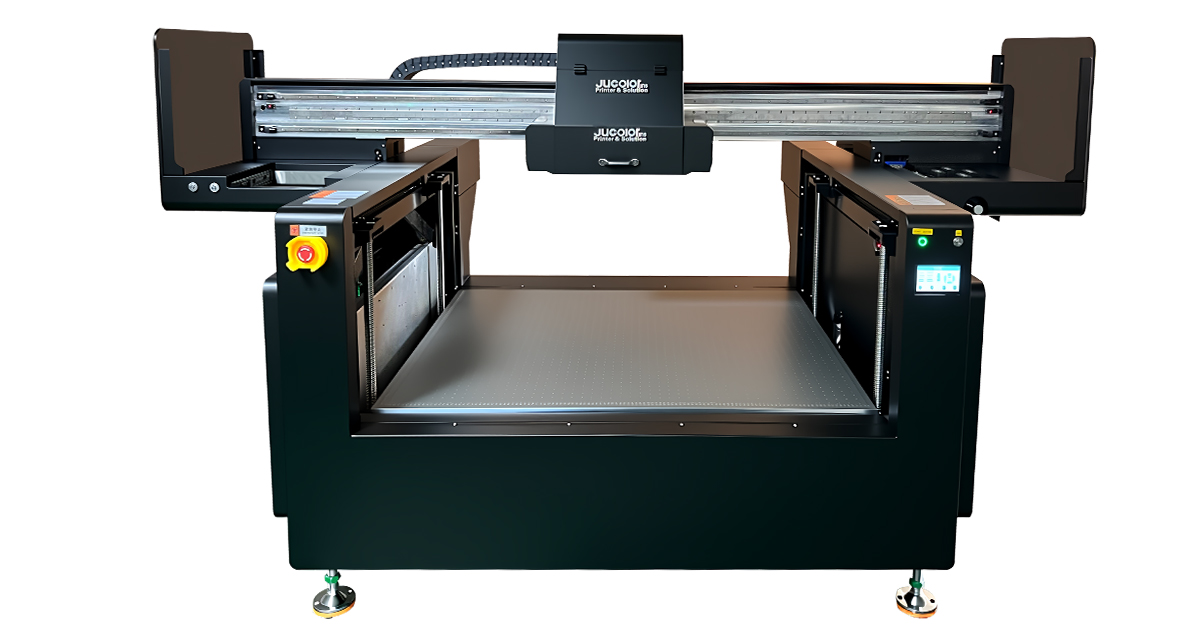

Jucolor Popular UV Printer Double 6090 A0 UV Fltabed Printer

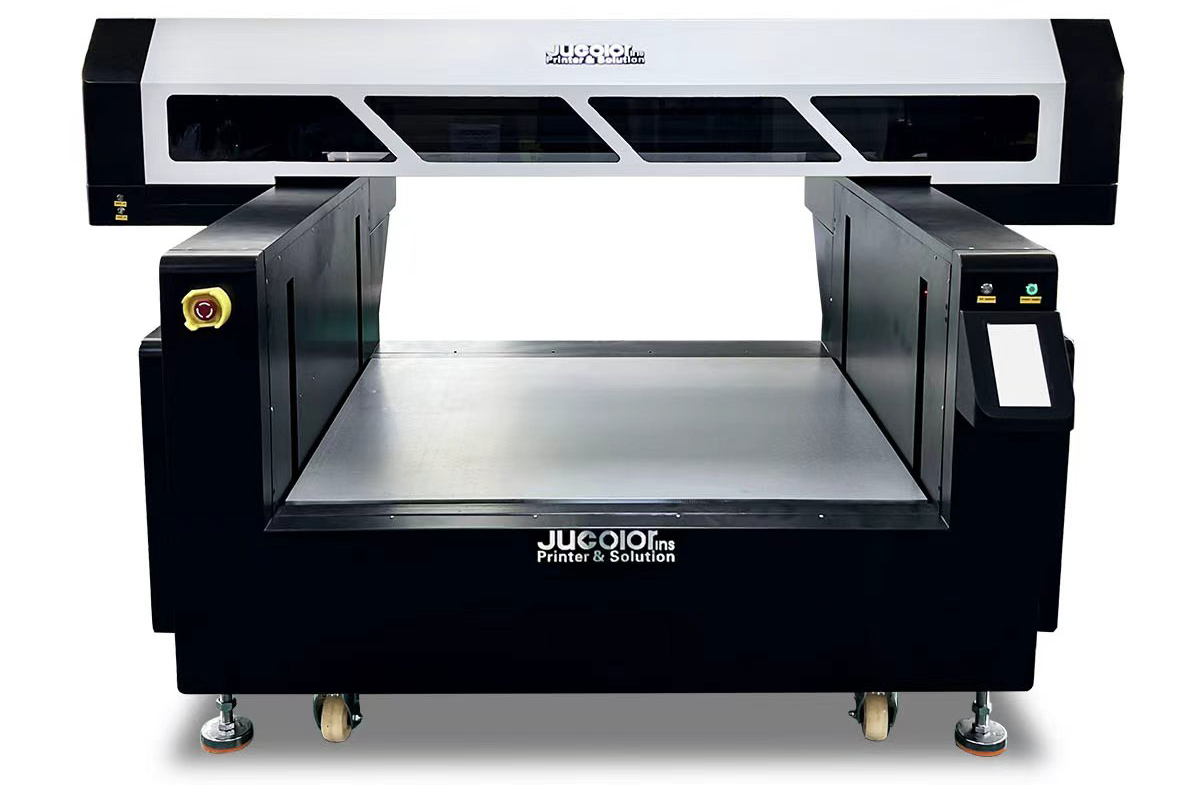

CJ-UVF1210Pro-RIcoh A0 120*100cm/4*3.3' A0 size Industrial UV Flatbed Printer is newest generation industrial printer developed by Jucolor team.
Adopts Ricoh industrial printing engine (RICOH MH5320, MH5420 metal heads) and professional industrial printing control board system
Stronger stability, longer work lifespan, faster print speed, and greater high droplet print, which greatly meets customers' requirements for faster printing speed, high accuracy printing and high droplet printing.
Effectively used in the fields of personalized souvenirs, customized gifts, suitcases, furniture, advertising printing,
industrial production, etc.Can print almost any medias, include hard and soft materials, such as metal, toys, bottles, Braille, small tubes, pens, mobilephone cases, glass, plastic, wood, leather, rubber, lighters, wood, PVC, acrylic, aluminum, tiles, marble, etc.
Optional AI-scanner visual auto position system makes printing easier without complex positioning and calculation
| Printer Model | CJ-UVF1210Pro-RIcoh | Print Head | 4 PCS RICOH MH5420(GEN5)/MH5320(GEN6) industry metal print heads |
| Max Print Size | 120*100 cm/ 47.24''* 39.37'' | Accepted Material's Height | 50 cm/ 19.68'' |
| Printing Direction | Smart Bi-directional Printing | Print Resolution | 720dpi 900dpi 1200dpi, 1800DPI |
| Special Remarks | Customized is available | High Gap Printing Distance | 15/20/30 mm able to print on uneven and irregular materials |
| Weight of Material | Panel:≤ 50 kg/m2 | Ink Colors | 10-color, White+CMYK,LC,LM,Gray,Red+Varnish |
| Machine Standard Configuration | The Advantages | ||
| 120*100 cm/ 47.24''* 39.37'' | Double 90*60cm/3*2ft print size, improve printing efficiency, 1 printer=2 printers, but just need 1 people to operate and 1 printer cost | ||
| 50 cm/19.68'' max print thickness | Highly meet bigger and higher medias printing needs | ||
| Vacuum air suction platform with mark | Anti-corrosion, anti-oxidation, easy to clean,locate the printing position quickly | ||
| Negative pressure ink supply systems | Ensure the continuous ink flow, Effectively protect print head from blocked, easy maintenance | ||
| High-strength steel fuselage structure | High strength , no deformation, Ensure high-quality printouts and extend the life of your printer | ||
| Y axis double screw rod guide | Stable and precise movement, high precision printing | ||
| Auto medias height checking system | Helpful for customer setting proper print height in quickly | ||
| Ink heating system | Maintain the fluency of ink, the printer can also work normally in winter | ||
| Anti-collision system | Protects the printhead from touching or impacting the media | ||
| RIP Software | USA Sai brand Flexi print 2024 Jucolor Edition | high droplet distance | 15/20/30 mm able to print on uneven and irregular materials |
| Software | Photoshop, CorelDraw, Illustrator, | Languages | English |
| Interface | Hanson | Operating system | Windows XP/ME/Vista/Win7/Win10 |
| Ink Supply | 500 ml/bottle | Ink Consumption | 15 ML/SQM. |
| Driving Power | 110 V/ 220 V. | Power Consumption | 2500 W/ Hour. |
| Machine Size | 2650*1755*1378cm,550 kg | Packing Size | 2850*190*160 cm ,800 kg |
| Packing | Plywood packing | Delivery | 7-10 days |
| Applicable Industry | mugs, bottles. balls, Phone case, pen, banner, PVC board, ceramic tile, glass, plastic, leather, rubber, candles, metal, wood, porcelain, ABS, acrylic, aluminum, marble, granite, paperboard etc | ||

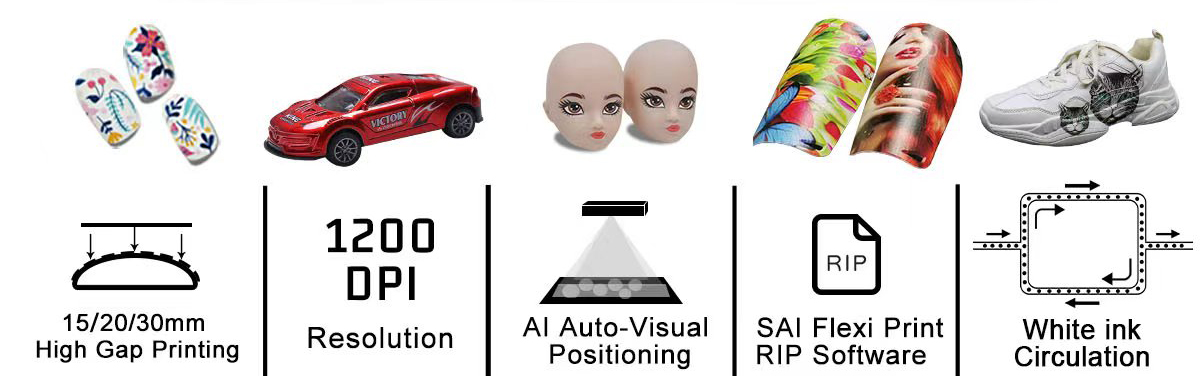

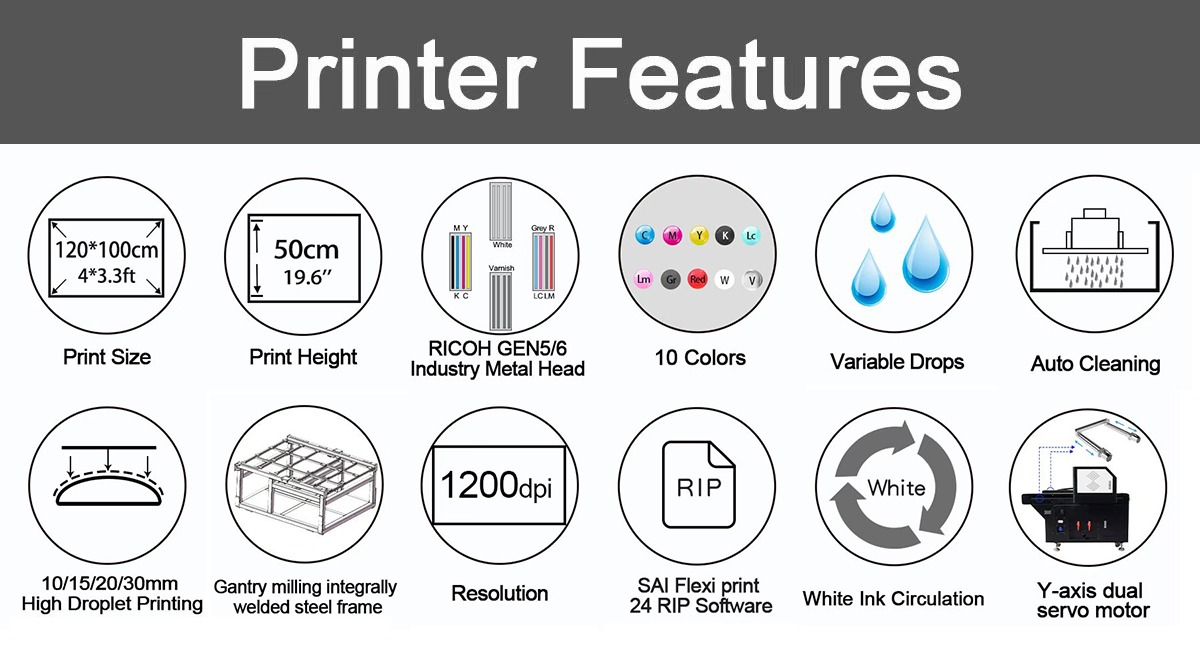

* RICOH GEN5/6 industrial metal inkjet heads
* 10-color ink, white, CMYK, LC, LM, gray, red varnish
* Photo-level printing output
* High drop printing up to 15/20/30 mm
* 120*100cm/47.24*39.37'' max print size, 50cm/19.68" max print height
* Optional AI camera automatic visual positioning system
* 3D embossed printing, varnish glossy & matte printing
* Variable droplet technology minimizes graininess
* SAI Flexi print 2024 Jucolor edition
* High-speed print, bidirectional printing available
* High stability, low maintenance, open design, easy maintenance
* Magnetic grating, more accurate printing, lower failure rate
* Dual negative pressure ink supply system, stainless steel large-capacity air bottle is more stable, continuous ink supply
* White ink circulation, effectively avoid ink precipitation
* Ink constant temperature heating system, effectively ensure ink fluency
* Automatic cleaning and moisturizing unit
* Automatic ink wipe system, no need manual ink wiping
* High-sensitivity anti-collision & light-avoiding system
* High-precision laser height measurement, more accurate
* Y-axis dual servo motors, smoother running, higher precision, effectively avoiding printing deviation
* Dual silent ball screw guides
* LED touch display
* 120*100cm anti-scratch Teflon coated vacuum adsorption platform with built-in auxiliary positioning pins
* Y-axis high-precision screw drive, smoother operation

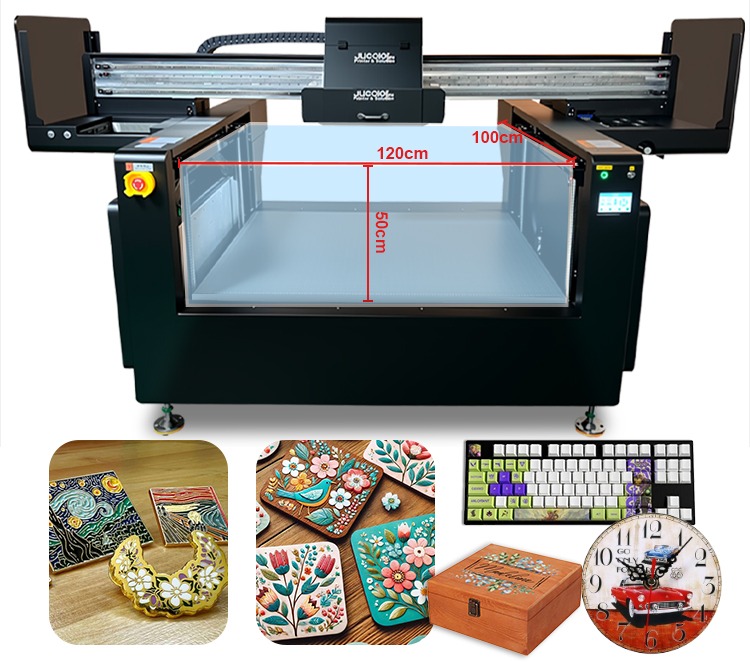

Max Print Size 120*100cm/4*3.3feet
120*100cm/47.2''*39.3'' print size=double 60*90cm size.120 cm print length can provide customers with faster printing speed and large print size, Effectively improveprinting efficiency, 50cm/19.6'' max print thickness, highly meet customers' bigger and higher medias printing needs.

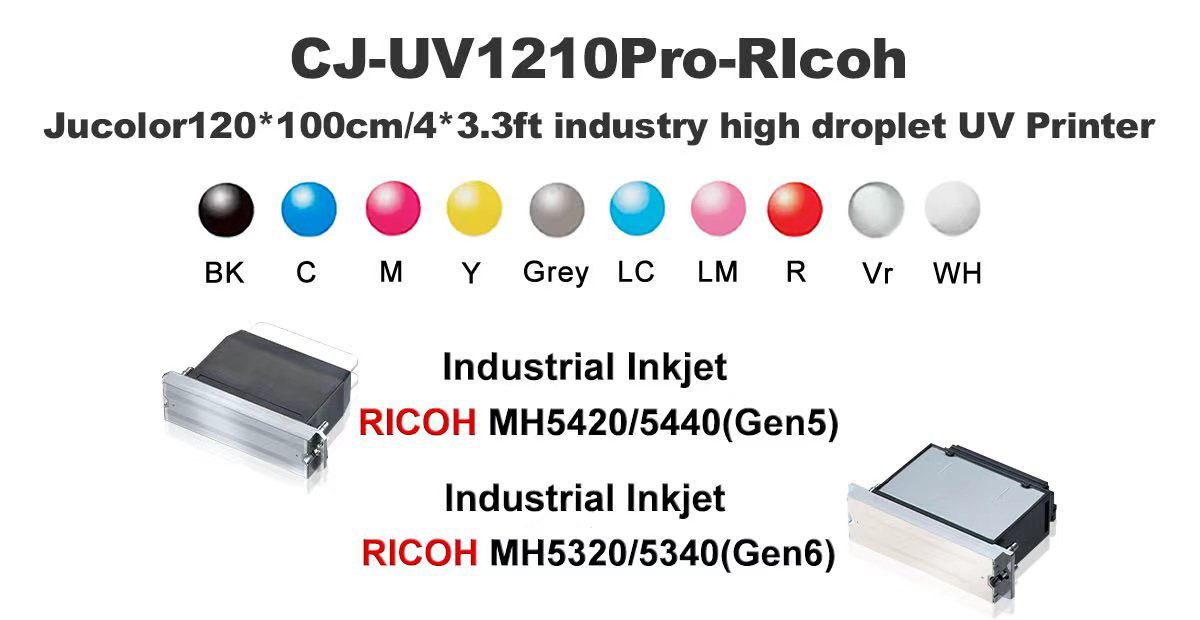

Adopting Japan Ricoh Gen6 (MH5320/MH5340) metal industry inkjet head,
Ricoh head adopts all-steel structure, with strong corrosion resistance, ultra-long working life of up to 4-6 years, high stability, greatly reducing maintenance time and cost, variable drop technology produces excellent print output quality,
54.1mm effective print width allows the printer to obtain a much faster print speed than EPSON heads
High droplet printing up to: 10/15/20mm, special ink up to 30mm
1,280 nozzles, print width 5.41 cm Made of stainless steel, with excellent durability and extended service life.
Built-in heater
Variable drop capacity 5PL, 10PL, 15PL
3D relief printing, because equipped with 4 pcs Ricoh Gen5/Gen6 print heads, varnish and white ink have independent nozzles for printing, which can quickly print out 3D relief effects with a strong three-dimensional effect
10-color ink for photo-level printouts.
Jucolor UVF1210Pro high droplet industry uv printer adopt 10-COLOR White+KCMY, LC, LM, Grey, Red+Varnish eco friendly uv led curing ink. White+KCMY, LC, LM, Grey, Lgrey/Red+Varnish color uv led curing ink. , The light-colored ink effectively improves the saturation, delivers bright, colorful, tactile prints with low graininess and smooth gradation. Print output quality is much more higher than CMYK or CMYK ,CL ,LM
Variable drop technology,
Small/middle/large,, three different dot sizes switched freely, provide smooth quality and less graininess high quality printing without noticeable banding
3D relief printing
Because equipped with 4 pcs Ricoh Gen5/Gen6 print heads, varnish and white ink have independent nozzles for printing, which can quickly print out 3D relief effects with a strong three-dimensional effect

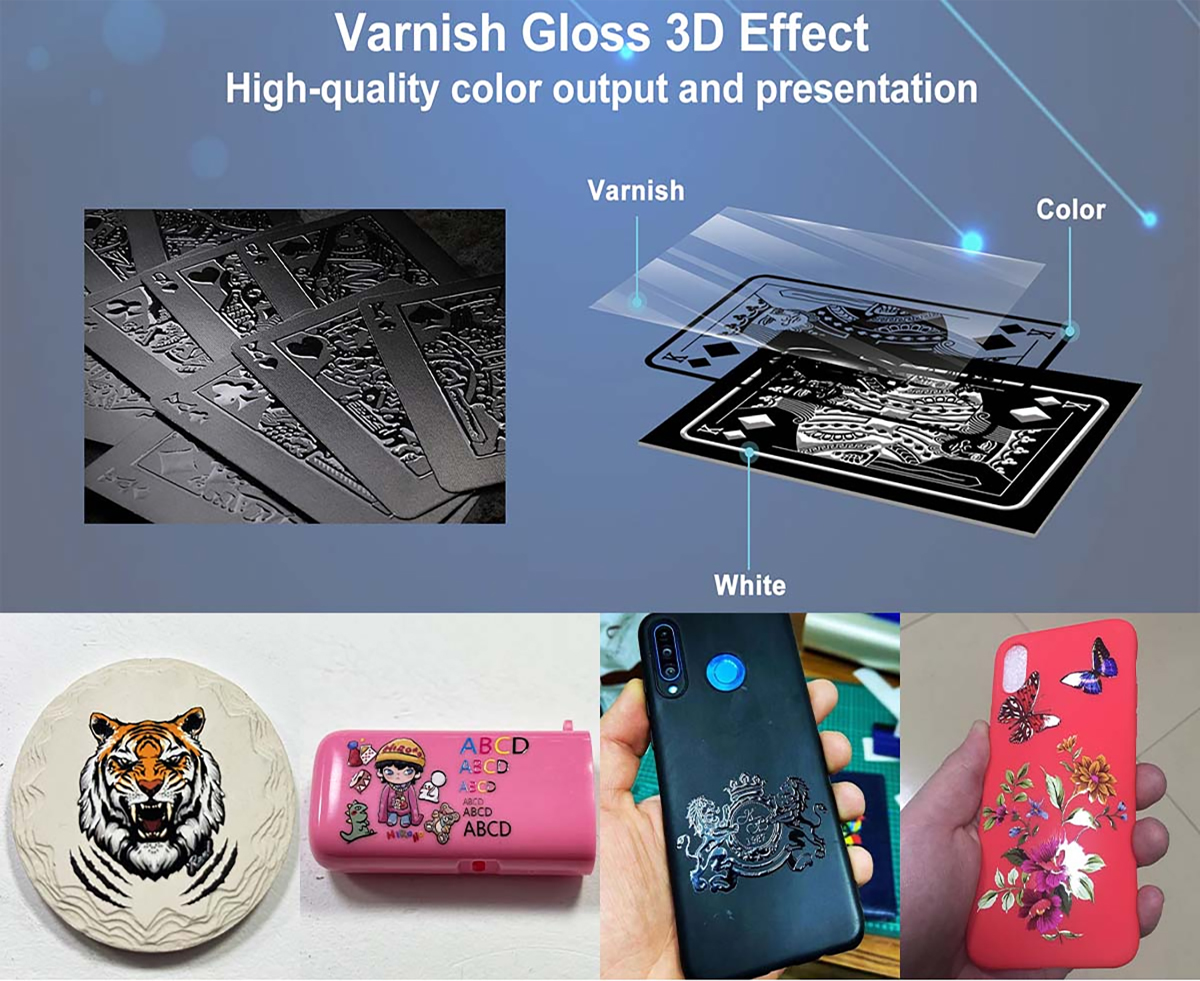

Varnish gloss and matte printing
supports white, color and varnish inks printing together, outputs good varnish glossy effects, also can prints matte varnish effects. Printing varnish inks on top of printed medias can also protect the printed image to avoid scratches
All Lifetime Service
About Jucolor After-sales Service
Jucolor Warranty and service guarrantee:
1.One year warranty, all lifespan service
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free, except for the print head.
3. Convenient online consultation
The technician will keep online, No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it.
Unsere Kunden sind auf der ganzen Welt. In der UV-Druckerbranche ist JUCOLOR sehr professionell und führend. Wir verlassen uns auf unser solides Fundament und unser starkes After-Sales-Team, um in den Herzen vieler Kunden sehr gute Ergebnisse zu erzielen.
Our products are sold in more than 60 countries on five continents around the world. If you have any needs or doubts, we can give you corresponding praise. You are completely free from worries and can purchase our products at any time.
The printer has 1 year warranty, during this period, any parts are damaged, we will repair and replace new for you, except print head, all shipping cost of after-sale is our responsibility
We established a professional engineers team, we will give you lifetime service. When you get the printer, our engineers team will set up a group to provide you with one on one technical support, guide you how to operate the printer step by step till you use well
Jucolor adopts latest technology, strict quality control for every parts before printer shipment, hope you can get a good cooperation experience with us.
We have a certain amount of inventory and can complete the shipment within 1-3 days.
We use good packaging for our products, which allows them to safely reach customers during transportation.
