Jucolor CJ-UVF1210Pro Double 6090 industry A0 UV Printer with RICOH Gen5/Gen6 metal print heads

Short Description:

  CJ-UVF1210Pro-RIcoh double 9060 Industrial A0 UV Flatbed Printer adopts Ricoh industrial printing engine (RICOH MH5320, MH5420 metal heads) and professional industrial printing control board system.
  120*100cm/47.2”*39.3” print size=double 60*90cm size.120 cm print length can provide customers with faster printing speed and large print size, Effectively improve printing efficiency,
  50cm/19.6” max print thickness, highly meet customers’ bigger and higher medias printing needs.
  Can print almost any medias, include hard and soft materials, such as metal, toys, bottles, Braille, small tubes, pens, mobile phone cases, glass, plastic, wood, leather, rubber, lighters, wood, PVC, acrylic, aluminum, tiles, marble, etc.
  10-color, White+CMYK+LC, LM, Grey, Red+Varnish, Photo-level printing out
  15/20/30 mm max high droplet/throw printing
  AI Camera Auto-Visual Position system optional

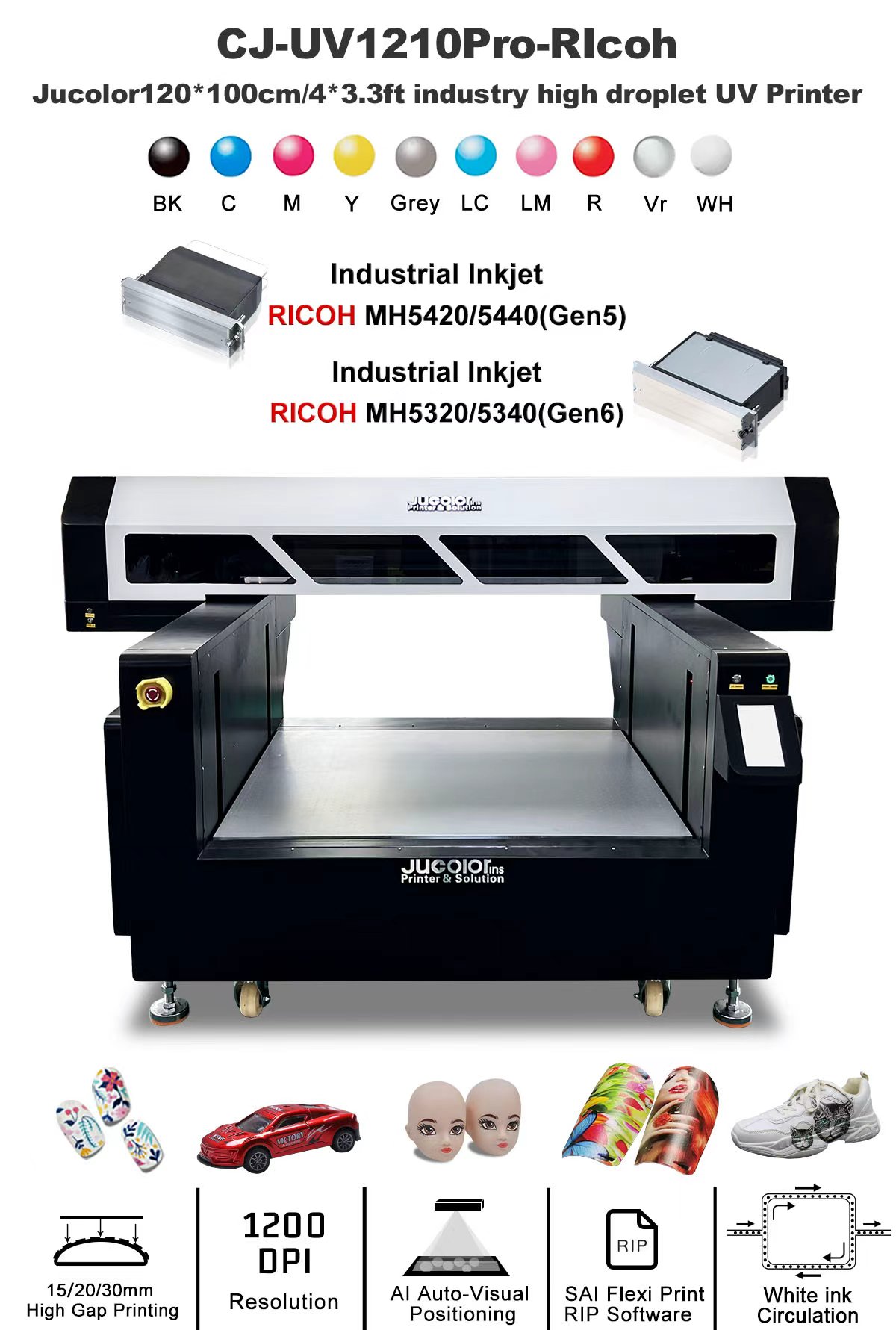

  • Model: CJ-UVF1210Pro-RIcoh
  • Print Head: RICOH MH5420/MH5320 Industry metal heads
  • Ink Color : 10-color CMYK, LC,LM,Gray, Red White, Varnish
  • Workable Medias:: Bottles, Balls, Phone case, Pen, Puzzle,Tumbler, Button,PVC, Ceramic tile, Glass, Plastic, Leather, rubber, sign, Candle, Metal, Wood, Porcelain, ABS, Acrylic, Aluminum, Mugs,Marble, Granite, Toys, Glasses case, Surfboard, Shoes, Helmets, Electrical panels, Cabinets, Hairpins, Accessories, Cups, etc
  • Print Size: 120*100cm/47.2''*39.3'' print siz
  • Max print height: 50cm/19.68''
  • Advantage: 15/20/30mm max high droplet/throw printing
  • Resolution: 720DPI, 900DPI, 1200DPI
  • Ink Supply System: Negative Pressure System
  • RIP Software: USA Sai Brand Flexi Print
  • Product Detail

        CJ-UVF1210Pro-RIcoh A0 Multi-function Industrial UV Flatbed Printer is newest generation industrial printer developed by Jucolor team. Adopts Ricoh industrial printing engine (RICOH MH5320, MH5420 metal heads) and professional industrial printing control board system,
   Stronger stability, longer work lifespan, faster print speed, and greater high droplet print,  which greatly meets customers' requirements for faster printing speed, high accuracy printing and high droplet printing.
   Effectively used in the fields of personalized souvenirs, customized gifts, suitcases, furniture, advertising printing, industrial production, etc.
   Can print almost any medias, include hard and soft materials, such as metal, toys, bottles, Braille, small tubes, pens, mobile phone cases, glass, plastic, wood, leather, rubber, lighters, wood, PVC, acrylic, aluminum, tiles, marble, etc.
  Optional AI-scanner visual auto position system makes printing easier without complex positioning and calculation

       CJ-UVF1210Pro-RIcoh A0 120*100cm/4*3.3' A0 size Industrial UV Flatbed Printer is newest generation industrial printer developed by Jucolor team. Adopts Ricoh industrial printing engine (RICOH MH5320, MH5420 metal heads) and professional industrial printing control board system
      Stronger stability, longer work lifespan, faster print speed, and greater high droplet print, which greatly meets customers' requirements for faster printing speed, high accuracy printing and high droplet printing.
      Effectively used in the fields of personalized souvenirs, customized gifts, suitcases, furniture, advertising printing,
    i  ndustrial production, etc.Can print almost any medias, include hard and soft materials, such as metal, toys, bottles, Braille, small tubes, pens, mobilephone cases, glass, plastic, wood, leather, rubber, lighters, wood, PVC, acrylic, aluminum, tiles, marble, etc.
      Optional AI-scanner visual auto position system makes printing easier without complex positioning and calculation

    Printer Model CJ-UVF1210Pro-RIcoh Print Head 4 PCS RICOH MH5420(GEN5)/MH5320(GEN6) industry metal print heads
    Max Print Size 120*100 cm/ 47.24''* 39.37'' Accepted Material's Height 50 cm/ 19.68''
    Printing Direction Smart Bi-directional Printing Print Resolution 720dpi 900dpi 1200dpi, 1800DPI
    Special Remarks Customized is available High Gap Printing Distance 15/20/30 mm able to print on uneven and irregular materials
    Weight of Material Panel:≤ 50 kg/m2 Ink Colors 10-color, White+CMYK,LC,LM,Gray,Red+Varnish
    Machine Standard Configuration The Advantages
    120*100 cm/ 47.24''* 39.37'' Double 90*60cm/3*2ft print size, improve printing efficiency, 1 printer=2 printers, but just need 1 people to operate and 1 printer cost
    50 cm/19.68'' max print thickness Highly meet bigger and higher medias printing needs
    Vacuum air suction platform with mark Anti-corrosion, anti-oxidation, easy to clean,locate the printing position quickly
    Negative pressure ink supply systems Ensure the continuous ink flow, Effectively protect print head from blocked, easy maintenance
    High-strength steel fuselage structure High strength , no deformation, Ensure high-quality printouts and extend the life of your printer
    Y axis double screw rod guide Stable and precise movement, high precision printing
    Auto medias height checking system Helpful for customer setting proper print height in quickly
    Ink heating system Maintain the fluency of ink, the printer can also work normally in winter
    Anti-collision system Protects the printhead from touching or impacting the media
    RIP Software USA Sai brand Flexi print 2024 Jucolor Edition  high droplet distance 15/20/30 mm able to print on uneven and irregular materials
    Software Photoshop, CorelDraw, Illustrator, Languages English
    Interface Hanson Operating system Windows XP/ME/Vista/Win7/Win10
    Ink Supply 500 ml/bottle Ink Consumption 15 ML/SQM.
    Driving Power 110 V/ 220 V. Power Consumption 2500 W/ Hour.
    Machine Size 2650*1755*1378cm,550 kg Packing Size 2850*190*160 cm ,800 kg
    Packing Plywood packing Delivery 7-10 days
    Applicable Industry mugs, bottles. balls, Phone case, pen, banner, PVC board, ceramic tile, glass, plastic, leather, rubber, candles, metal, wood, porcelain, ABS, acrylic, aluminum, marble, granite, paperboard etc



    jucolor uvprinters samples

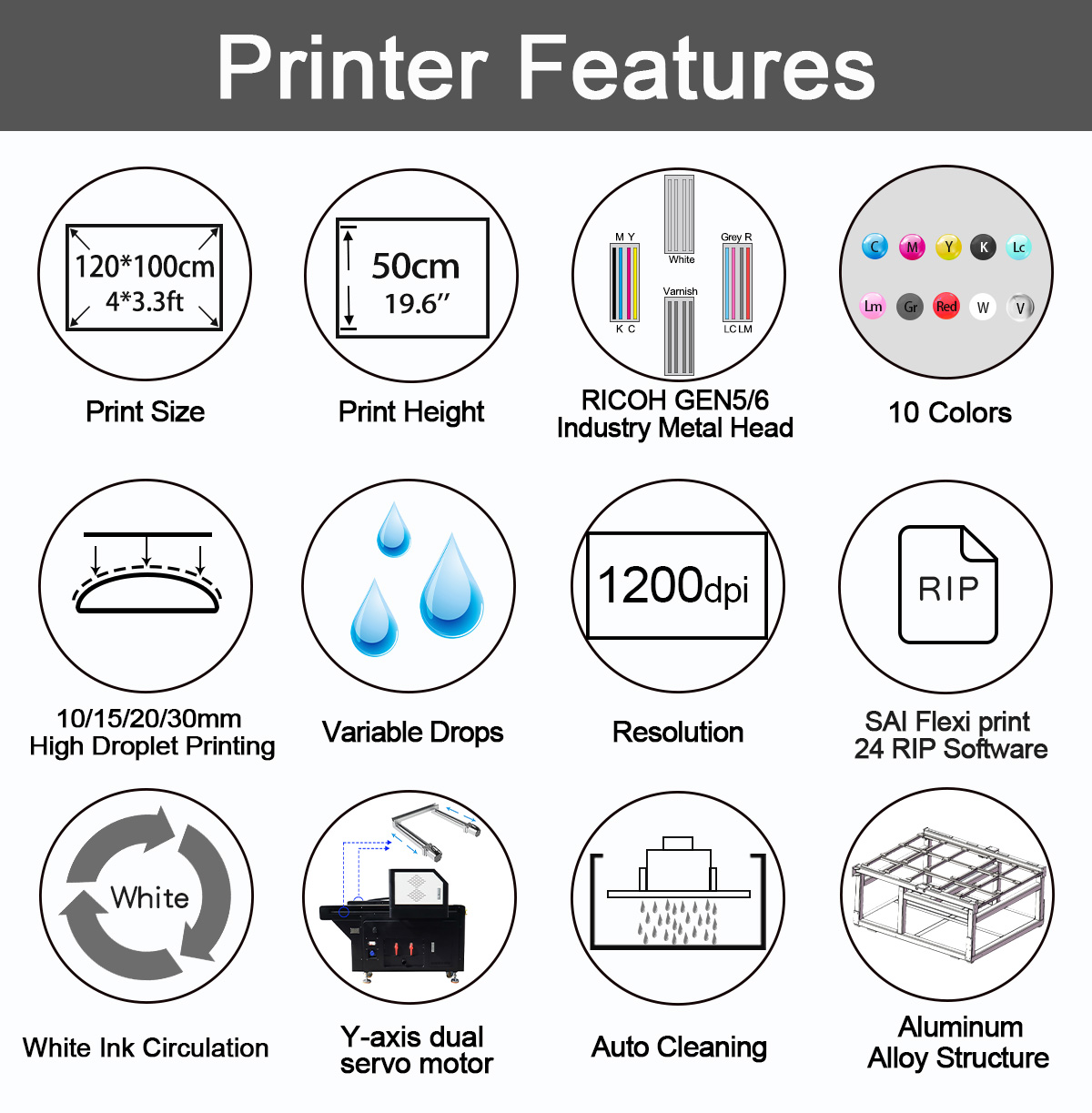

    微信图片_20250411154135

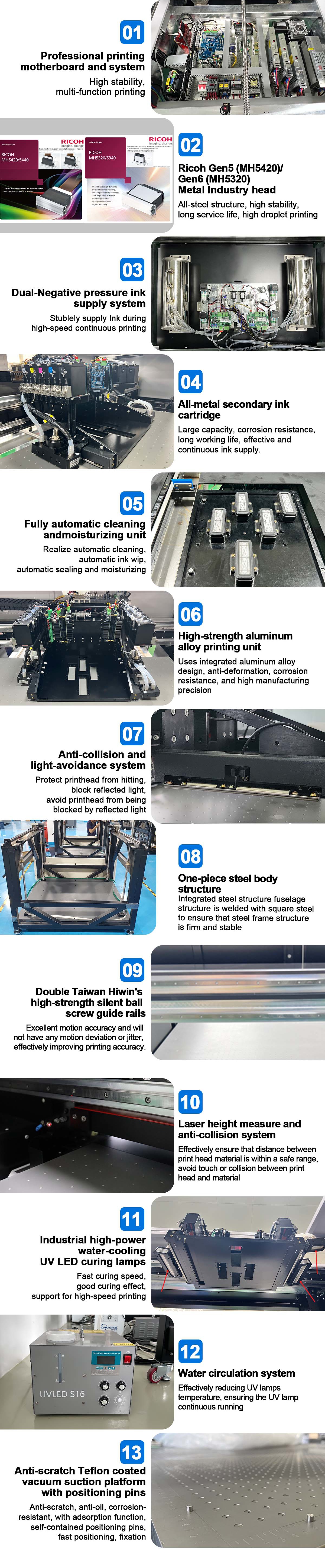

    * RICOH GEN5/6 industrial metal inkjet heads
    * 10-color ink, white, CMYK, LC, LM, gray, red varnish
    * Photo-level printing output

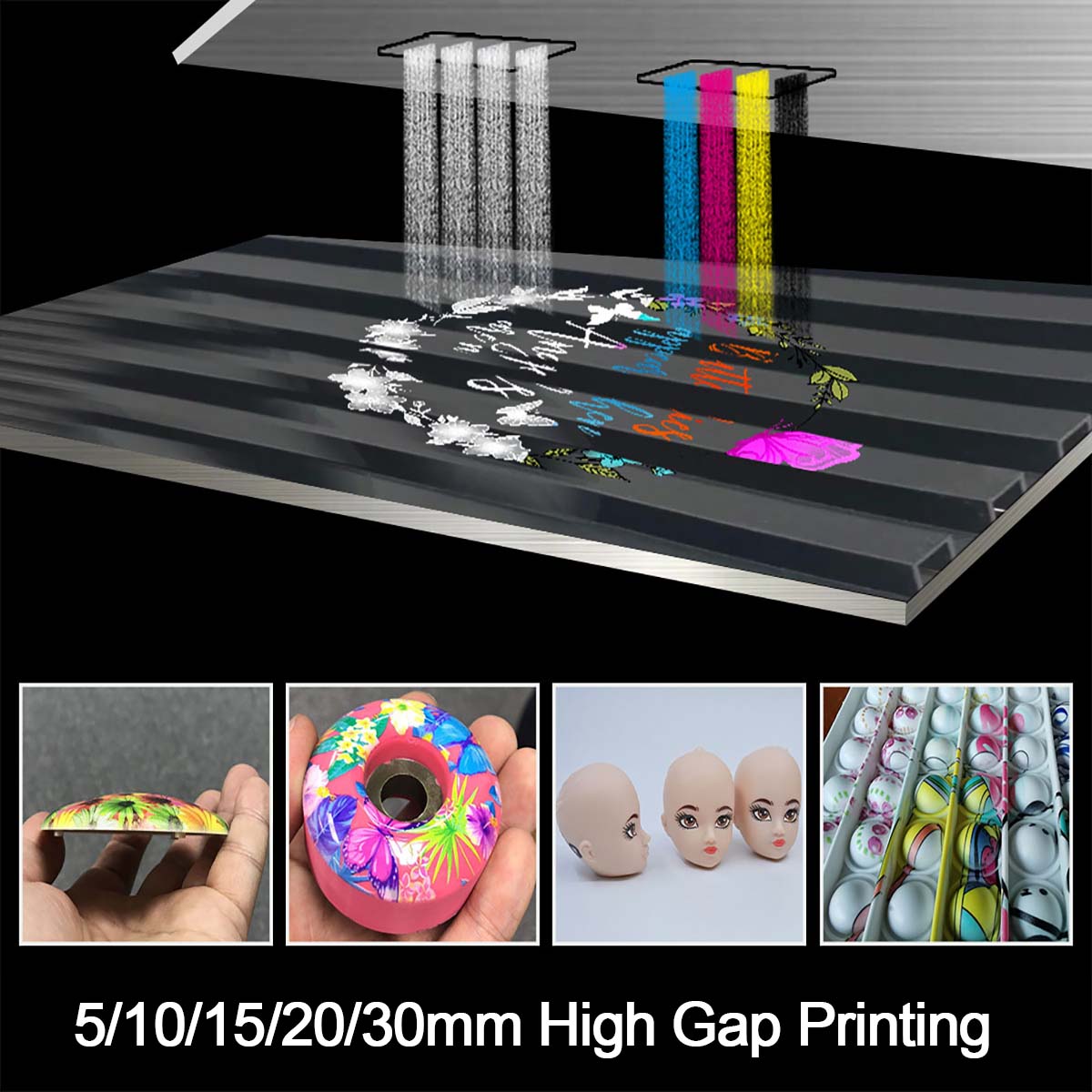

    * High drop printing up to 15/20/30 mm
    * 120*100cm/47.24*39.37'' max print size, 50cm/19.68" max print height
    * Optional AI camera automatic visual positioning system
    * 3D embossed printing, varnish glossy & matte printing
    * Variable droplet technology minimizes graininess
    * SAI Flexi print 2024 Jucolor edition
    * High-speed print, bidirectional printing available
    * High stability, low maintenance, open design, easy maintenance
    * Magnetic grating, more accurate printing, lower failure rate
    * Dual negative pressure ink supply system, stainless steel large-capacity air bottle is more stable, continuous ink supply
    * White ink circulation, effectively avoid ink precipitation
    * Ink constant temperature heating system, effectively ensure ink fluency
    * Automatic cleaning and moisturizing unit
    * Automatic ink wipe system, no need manual ink wiping
    * High-sensitivity anti-collision & light-avoiding system
    * High-precision laser height measurement, more accurate
    * Y-axis dual servo motors, smoother running, higher precision, effectively avoiding printing deviation
    * Dual silent ball screw guides
    * LED touch display
    * 120*100cm anti-scratch Teflon coated vacuum adsorption platform with built-in auxiliary positioning pins
    * Y-axis high-precision screw drive, smoother operation



    14

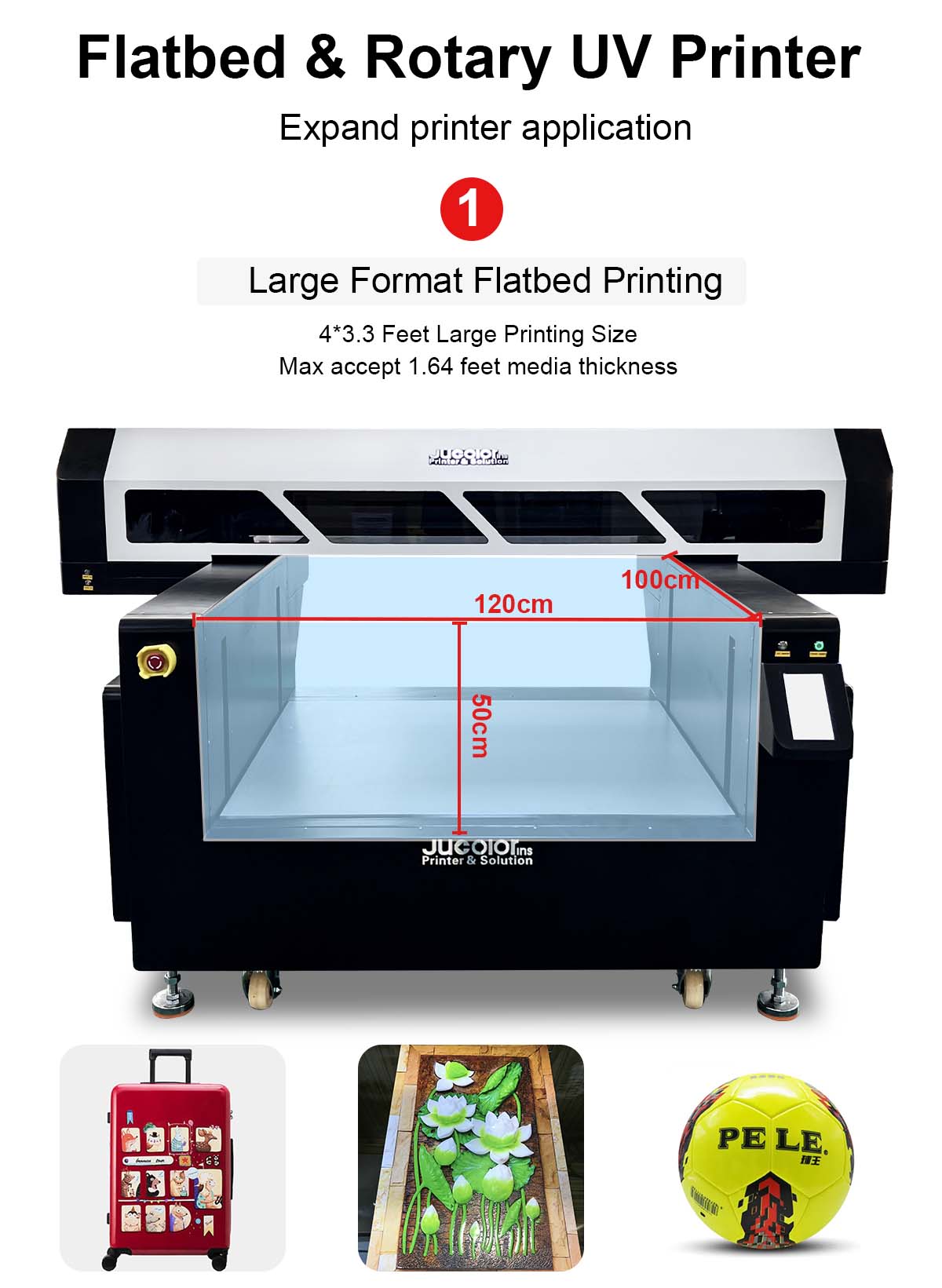

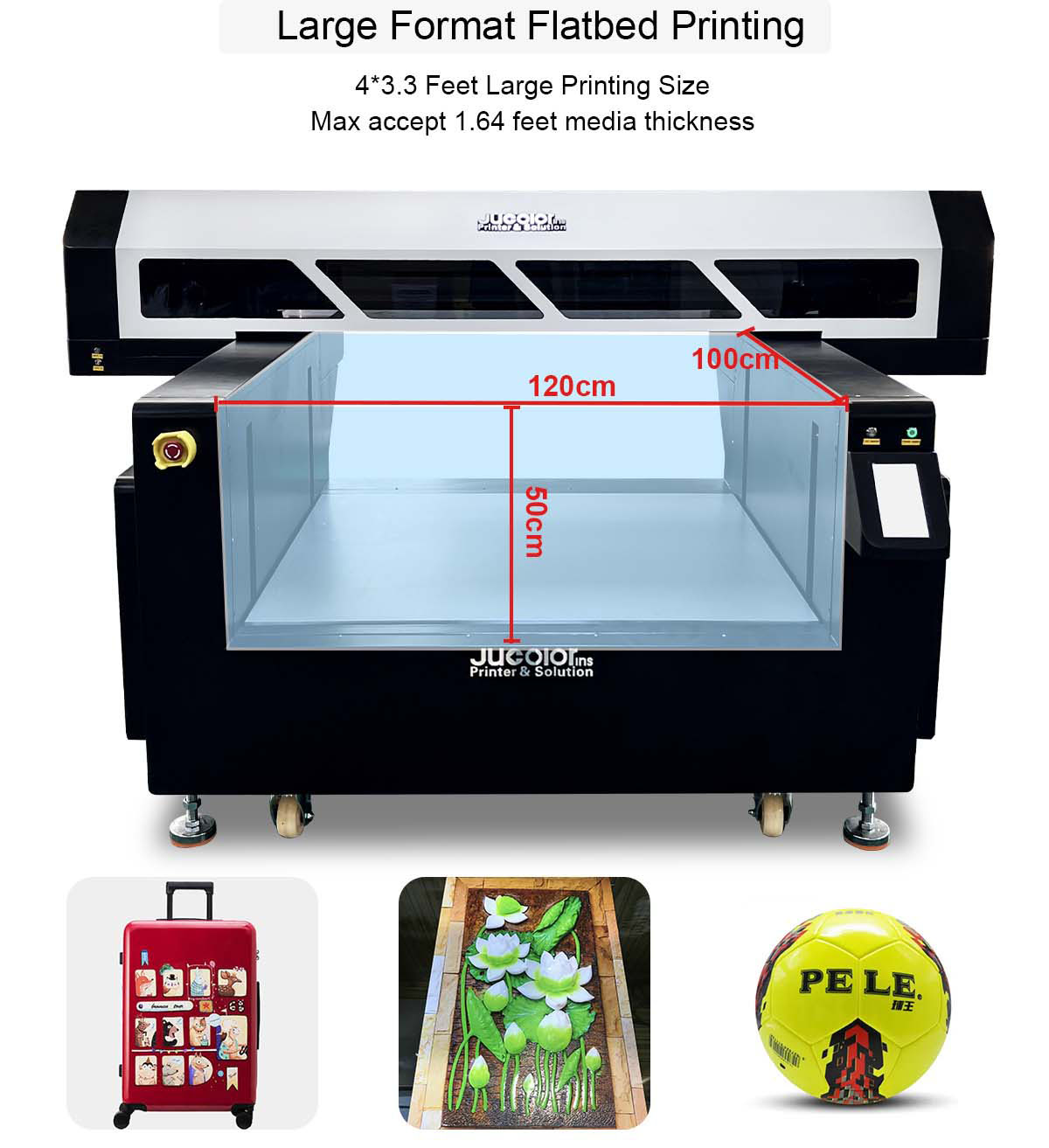

    Max Print Size 120*100cm/4*3.3feet
      120*100cm/47.2''*39.3'' print size=double 60*90cm size.120 cm print length can provide customers with faster printing speed and large print size, Effectively improveprinting efficiency, 50cm/19.6'' max print thickness, highly meet customers' bigger and higher medias printing needs.

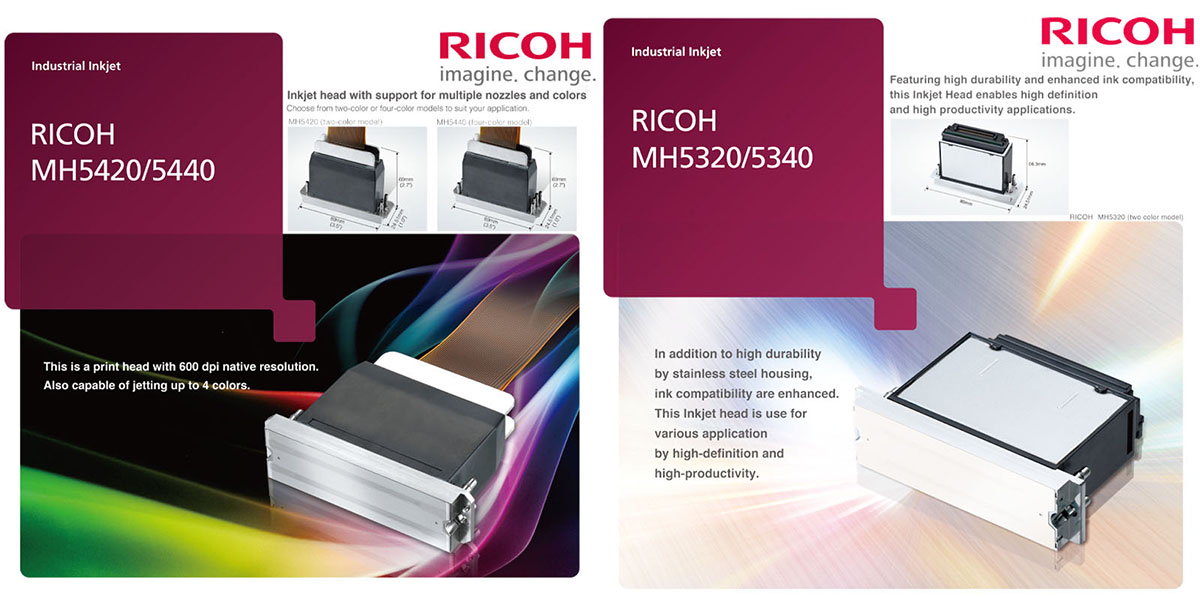

    Ricoh print heads

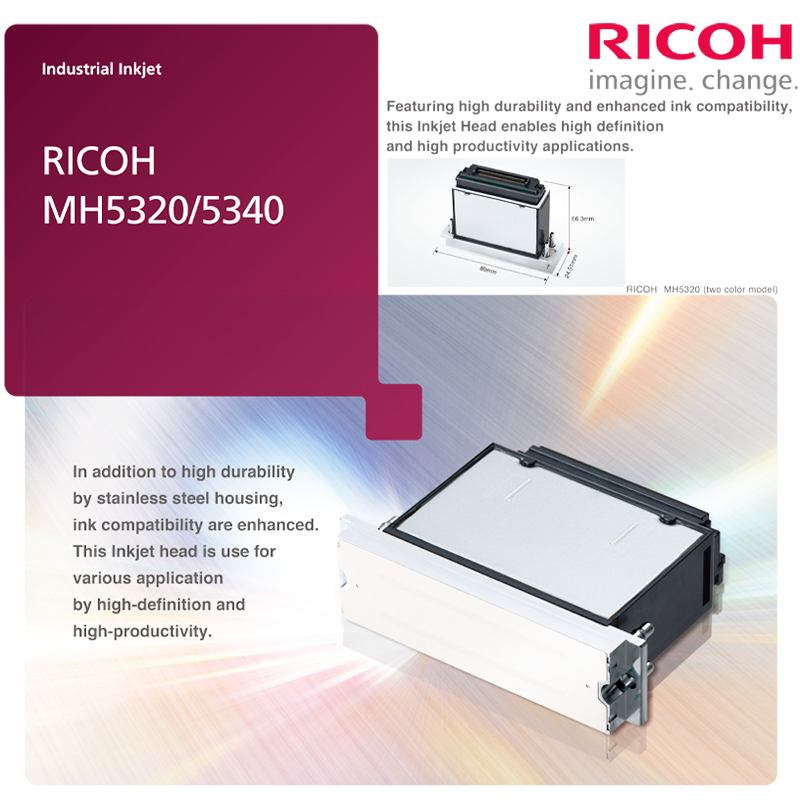

      Adopting Japan Ricoh Gen6 (MH5320/MH5340) metal industry inkjet head,
      Ricoh head adopts all-steel structure, with strong corrosion resistance, ultra-long working life of up to 4-6 years, high stability, greatly reducing maintenance time and cost, variable drop technology produces excellent print output quality,
      54.1mm effective print width allows the printer to obtain a much faster print speed than EPSON heads

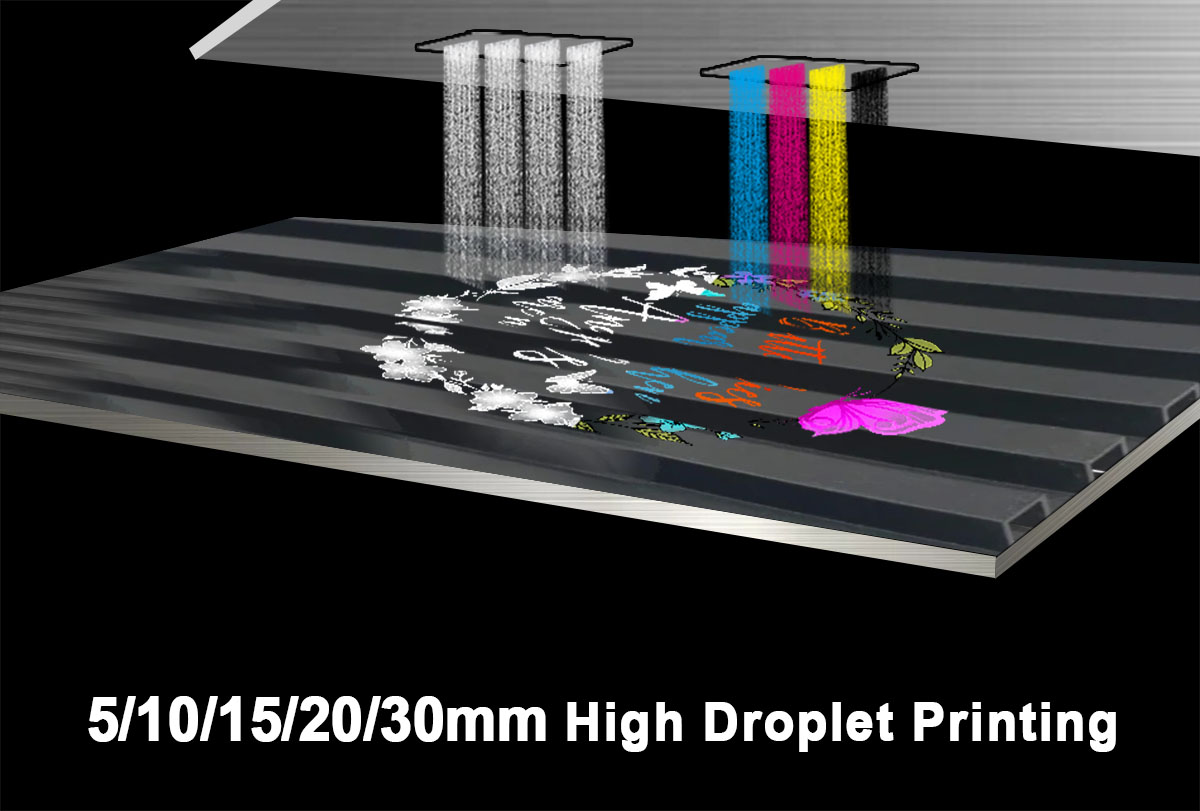

      High droplet printing up to: 10/15/20mm, special ink up to 30mm
      1,280 nozzles, print width 5.41 cm Made of stainless steel, with excellent durability and extended service life.
      Built-in heater
      Variable drop capacity 5PL, 10PL, 15PL
      3D relief printing, because equipped with 4 pcs Ricoh Gen5/Gen6 print heads, varnish and white ink have independent nozzles for printing, which can quickly print out 3D relief effects with a strong three-dimensional effect

    Google-10color

    10-color ink for photo-level printouts.

      Jucolor UVF1210Pro high droplet industry uv printer adopt 10-COLOR White+KCMY, LC, LM, Grey, Red+Varnish eco friendly uv led curing ink. White+KCMY, LC, LM, Grey, Lgrey/Red+Varnish color uv led curing ink. , The light-colored ink effectively improves the saturation, delivers bright, colorful, tactile prints with low graininess and smooth gradation. Print output quality is much more higher than CMYK or CMYK ,CL ,LM

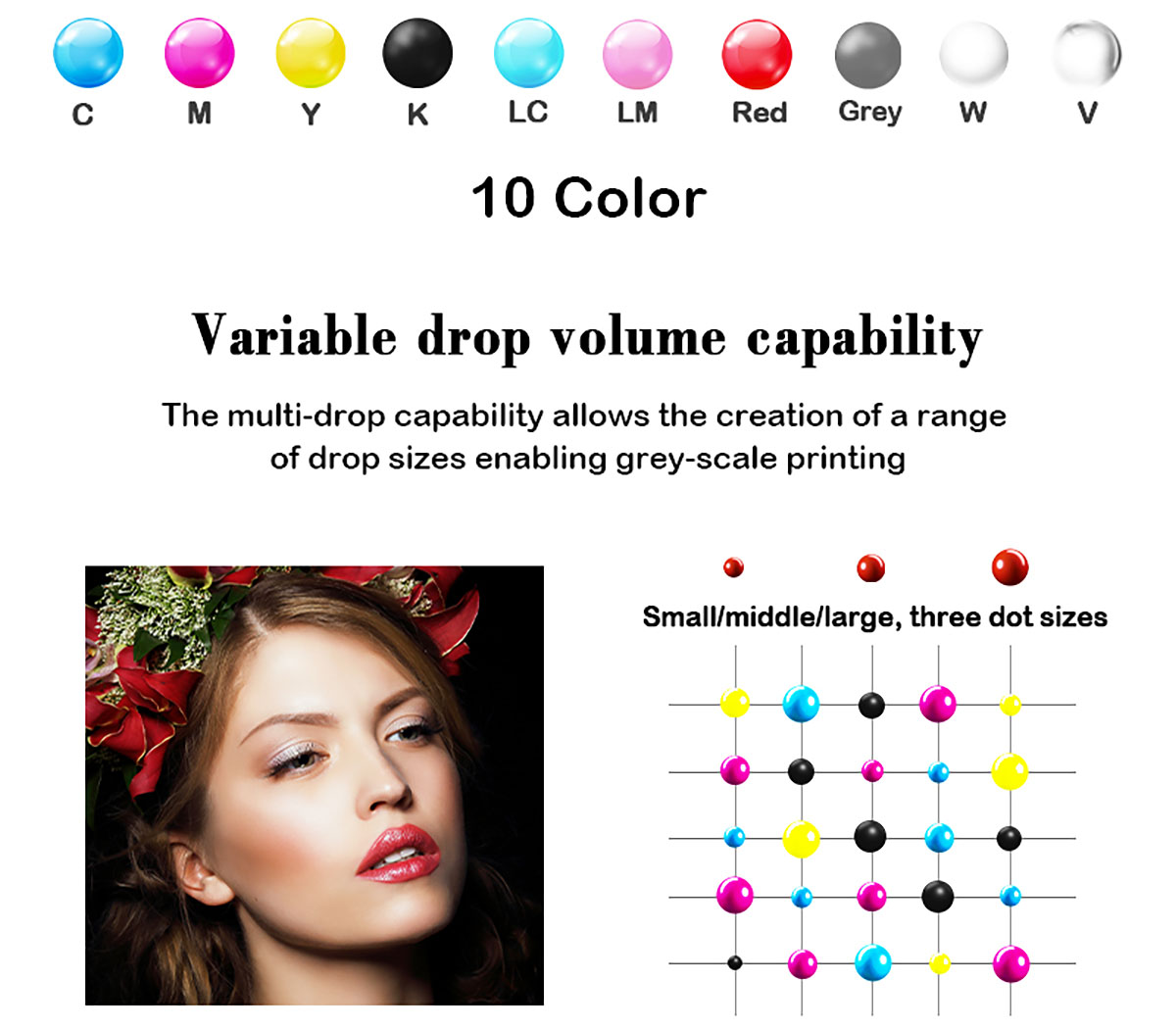

      Variable drop technology,
    Small/middle/large,, three different dot sizes switched freely, provide smooth quality and less graininess high quality printing without noticeable banding

    10-COLOR Photo level printing quality
    Jucolor 1210 inkjet industry uv printer equipped 10-COLOR  White+KCMY, LC, LM, Grey, Red+Varnish eco friend uv led curing ink.
   The light-colored ink effectively improves the saturation, delivers bright, colorful, tactile prints with low graininess and smooth gradation, get to photo-level printing quality, so the 10-color inks Print output quality is much more higher than CMYK or CMYK , LC, LM

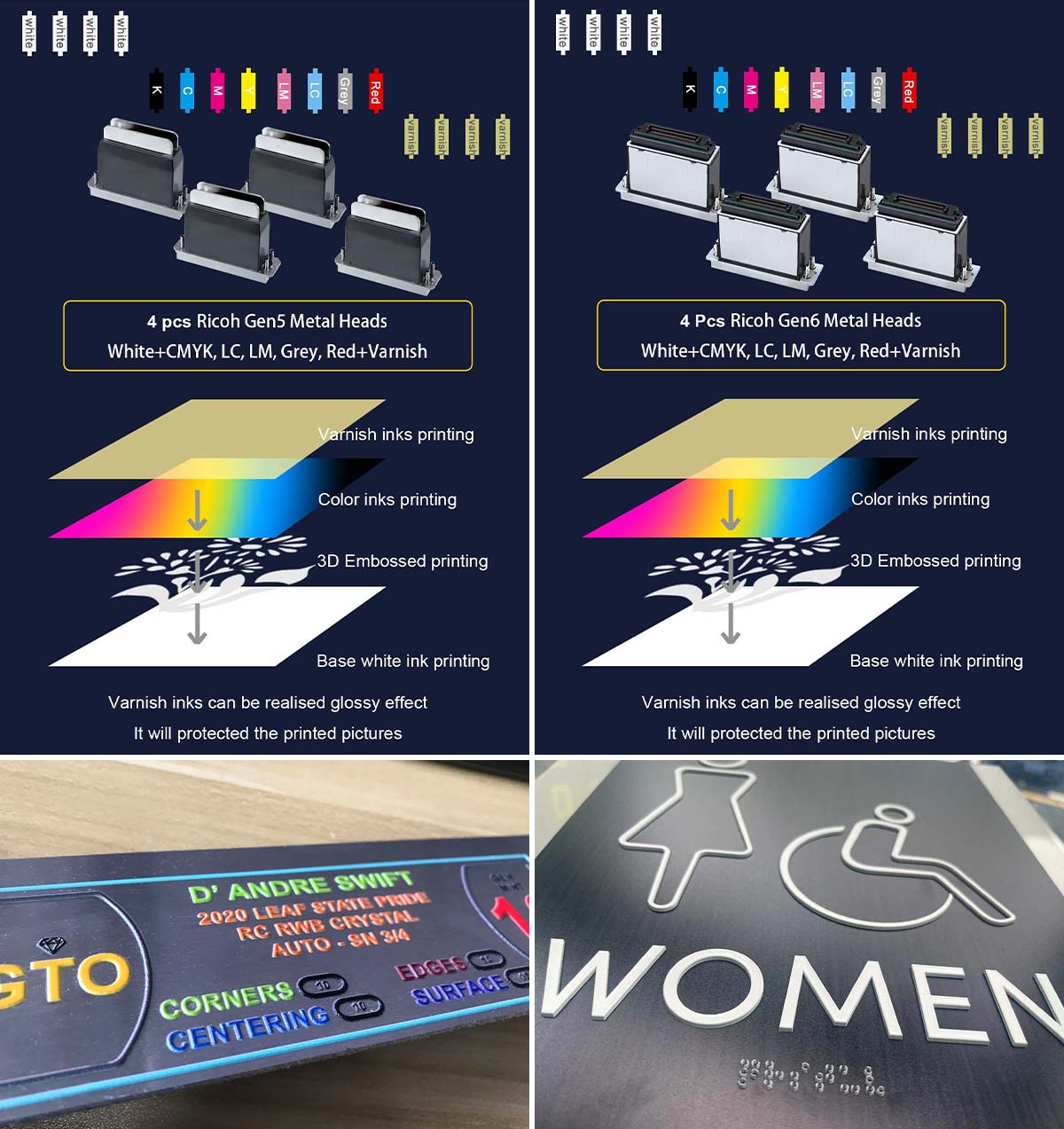

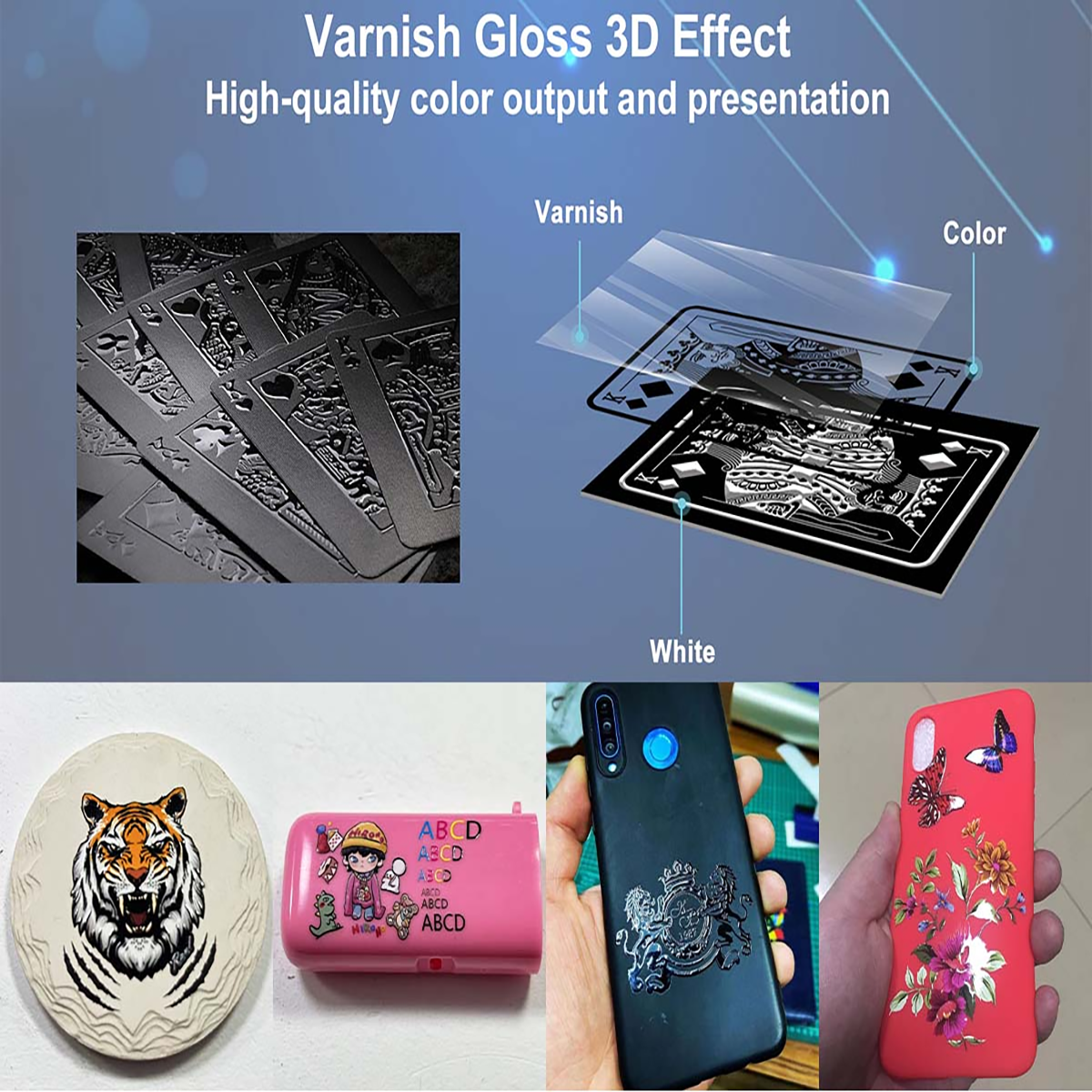

      3D relief printing
      Because equipped with 4 pcs Ricoh Gen5/Gen6 print heads, varnish and white ink have independent nozzles for printing, which can quickly print out 3D relief effects with a strong three-dimensional effect

    4

    Varnish gloss and matte printing
      supports white, color and varnish inks printing together, outputs good varnish glossy effects, also can prints matte varnish effects. Printing varnish inks on top of printed medias can also protect the printed image to avoid scratches

    9
