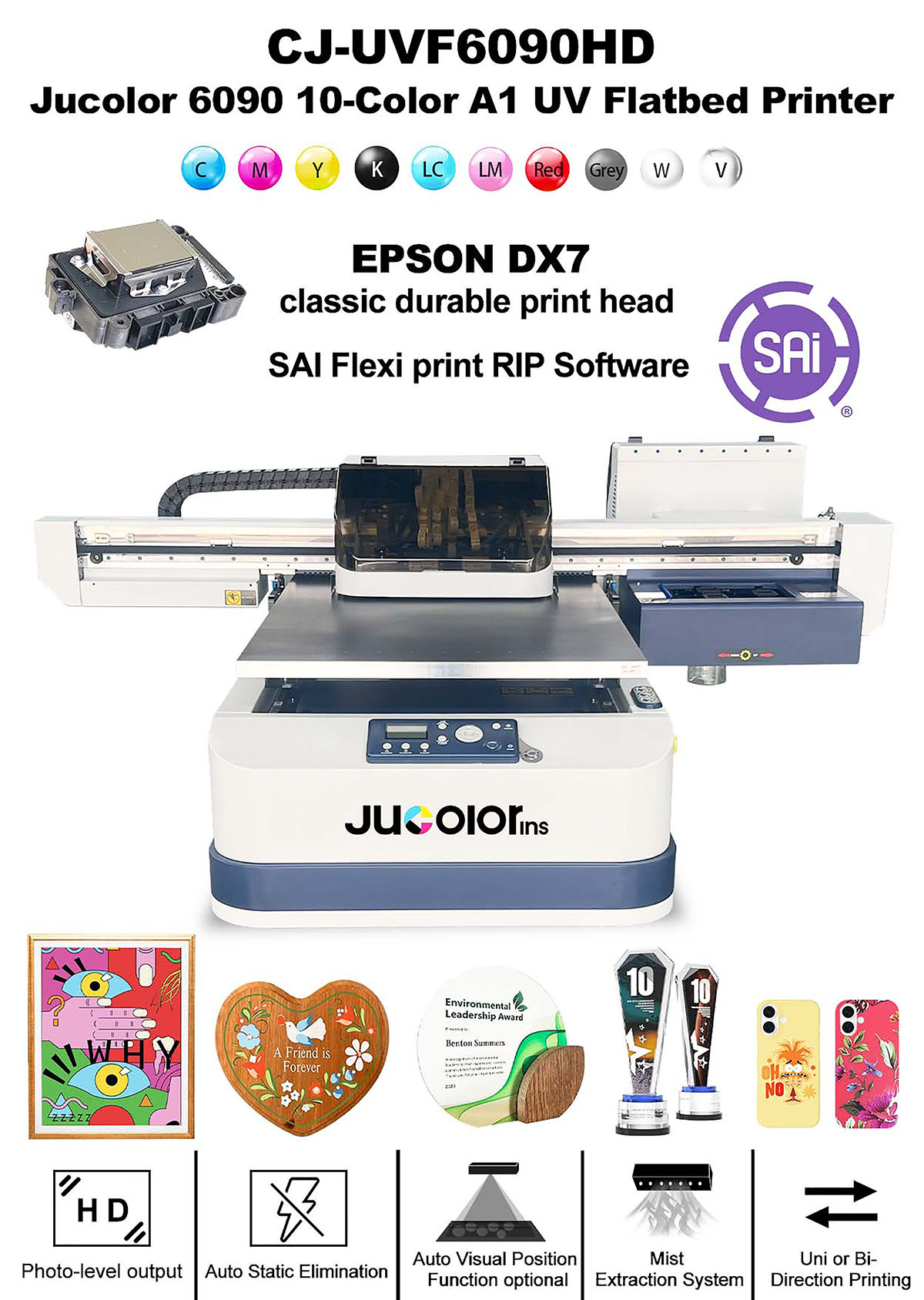

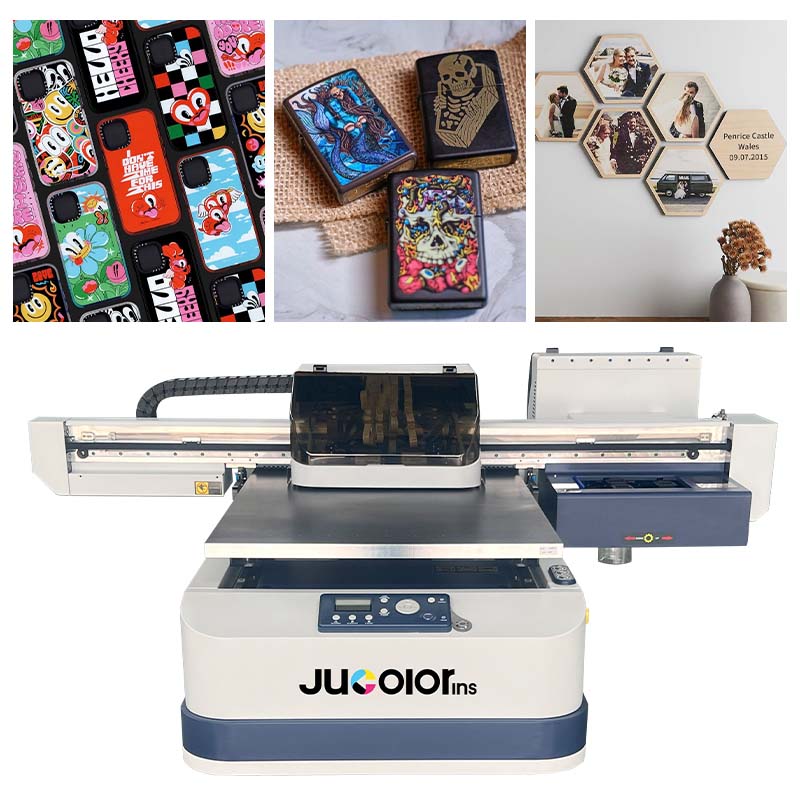

Jucolor CJ-UV6090HD 10-color A1 HD UV Led Flatbed printer with ESPON DX7 print heads
JuColor CJ-UVF6090HD A1 HD UV Flatbed Printer, equipped with EPSON DX7 classic durable high-resolution piezo electric grayscale print heads, prints out vivid colors and fine details, at the same time, works seamlessly with professional SAI Flexi print management software.
60*90cm/2*3' print size, 13cm/5.11'' max print thickness highly expend this printer's printing business field.
10-color ink for photo-level printouts
White + KCMY, LC, LM, gray, red, varnish, 10-color environmentally friendly UV-curable inks, providing bright, colorful, good touch, low graininess, and smooth layered printing effects.
Stable printing performance, and easier operation, enables many more business opportunities, like printing on customized gifts, paintings, etc.
Available print on Braille, Acrylic, Buttons, Wood, Plastic, Metal, Glass, Ceramic, KT board, CD, ball, Pen, Stone, Wallet, ABS, PVC, Ceramic, U disk, Pen, lD card, Leather, etc
* EPSON DX7 classic durable high-resolution piezo electric grayscale print heads
* 10-color ink White+CMYK+LC, LM, Gray, Red+Varnish
* Photo-level printing out
* 60*90cm/2*3' print size, 13cm/5.11'' print height
* 3D embossed printing, Varnish glossy & matte printing
* Bi-direction Faster printing
* AI Camera Auto-Visual Position system optional
* Mist Extraction System
* Static Eliminator
* White ink circulation device
* Automatic collision avoidance system
* Automatic medias height detecting system
* Anti-scratch Teflon Coated Vacuum Table
| Printer Model | CJ-UV6090HD | Print Head | 2-4 pcs DX7/i3200-U1 |
| Max Print Size | 61*91cm/ 2 * 3 feet | Accepted Material's Height | 13 cm/ 5.11 inch |
| Printing Direction | Smart Bi-directional Printing | Print Resolution | 720*1080DPI, 720*1440DPI. 1440*1440 DPI |
| Special Remarks | Customized is available | Print quality | Photo level print out |
| Weight of Material | Panel:≤ 20 kg/m2 | Ink Colors | 10-color, White+CMYK,LC,LM,Grey, LGrey/Red+Varnish |
| Machine Standard Configuration | The Advantages | ||
| 61*91 cm/2*3 feed print size | Popular 6090 UV printer,Effectively improve printing efficiency | ||
| 13 cm max print thickness | Highly meet bigger and higher medias printing needs | ||
| Vacuum air suction platform with mark | Anti-corrosion, anti-oxidation, easy to clean,locate the printing position quickly | ||
| Y axis double screw rod guide | Stable and precise movement, high precision printing | ||
| Auto medias height checking system | Helpful for customer setting proper print height in quickly | ||
| Ink heating system | Maintain the fluency of ink, the printer can also work normally in winter | ||
| Anti-collision system | Protects the printhead from touching or impacting the media | ||
| RIP Software | USA Sai brand Flexi print | Drop Volume Size | 3.0 picolitre |
| Software | Photoshop, CorelDraw, Illustrator, | Languages | English |
| Ink Supply | 500 ml/bottle | Ink Consumption | 15 ML/SQM. |
| Driving Power | 110 V/ 220 V. | Power Consumption | 2500 W/ Hour. |
| Machine Size | 152*165*72cm,200KG | Packing Size | 170*185*100cm, 350 KG |
| Packing | Plywood packing | Delivery | 1-3 days |
| Applicable Industry | mugs, bottles. balls, Phone case, pen, banner, PVC board, ceramic tile, glass, plastic, leather, rubber, candles, metal, wood, porcelain, ABS, acrylic, aluminum, marble, granite, paperboard etc | ||
10-COLOR Photo level printing quality
Jucolor 6090HD inkjet HD uv printer equipped 10-COLOR White+KCMY, LC, LM, Gray, Red+Varnish eco friendly uv led curing ink.
The light-colored ink effectively improves the saturation, delivers bright, colorful, tactile prints with low graininess and smooth gradation. so the 10-color inks Print output quality is much more higher than CMYK or CMYK , LC, LM

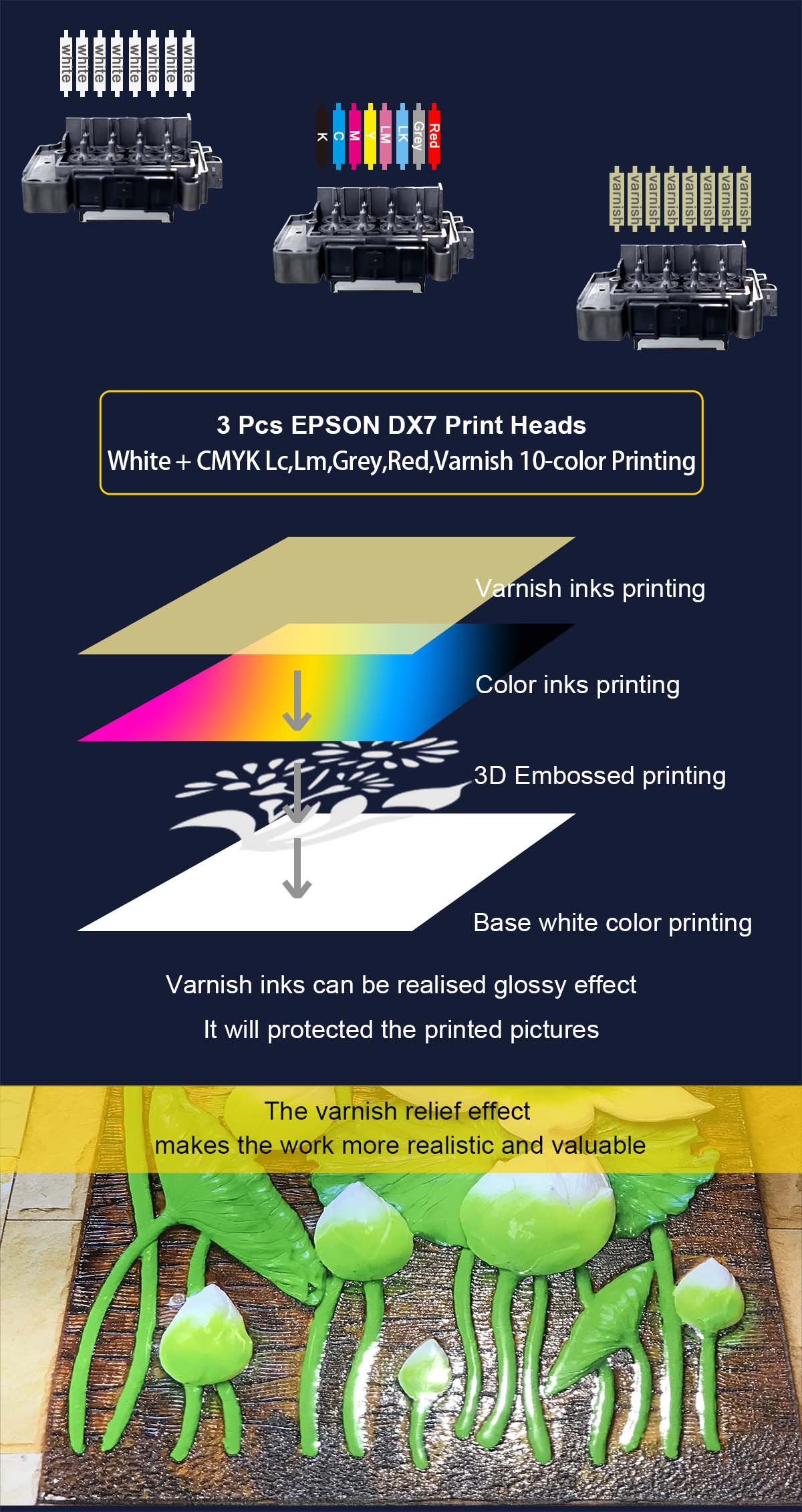

3D embossed printing
Jucolor 6090HD A1 uv printing machine equipped with 3 pcs EP SON classic durable DX7 print heads
Support, White+CMYK+lc+lm,Gray+Red +Varnish inks print one pass 3D embossed printing

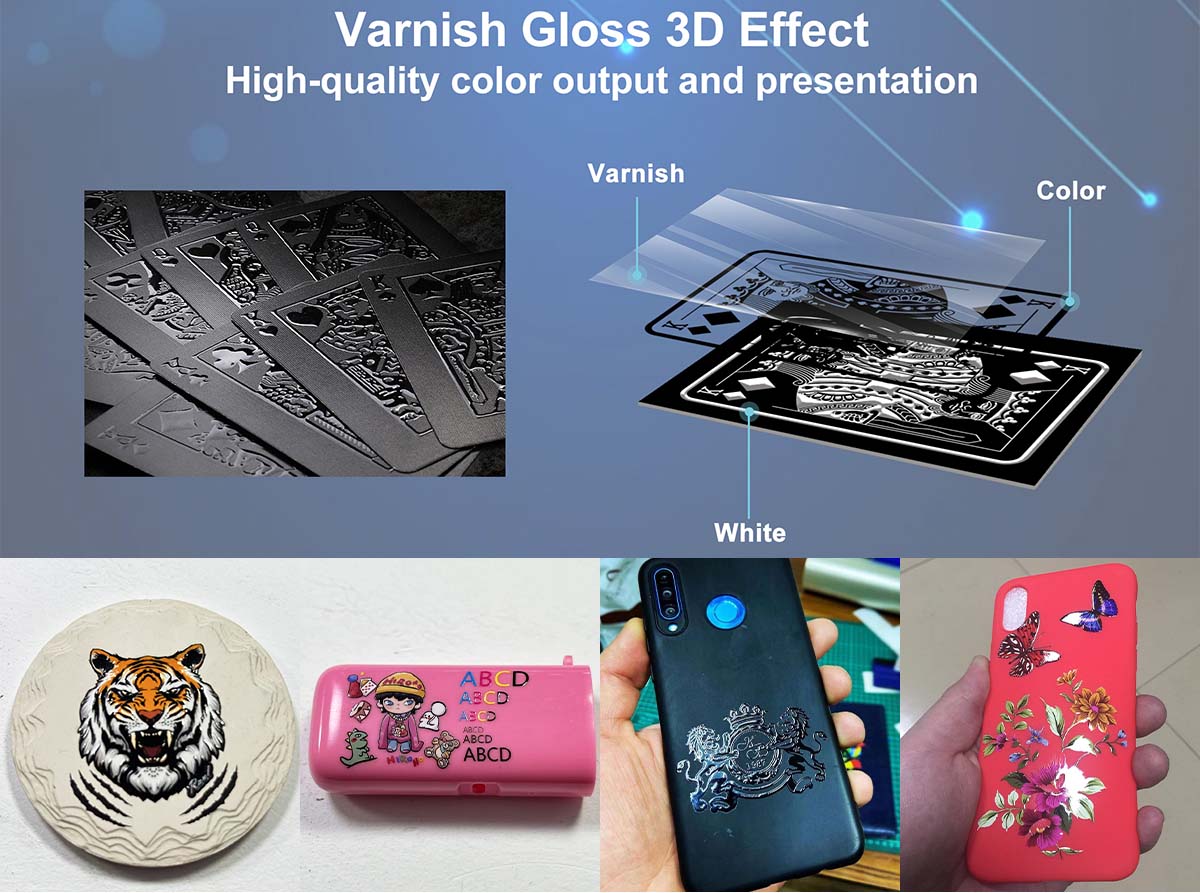

varnish gloss and matte printing
supports white, color and varnish inks printing together, outputs good varnish glossy effects, also can prints matte varnish effects.
Printing varnish inks on top of printed medias can also protect the printed image to avoid scratches

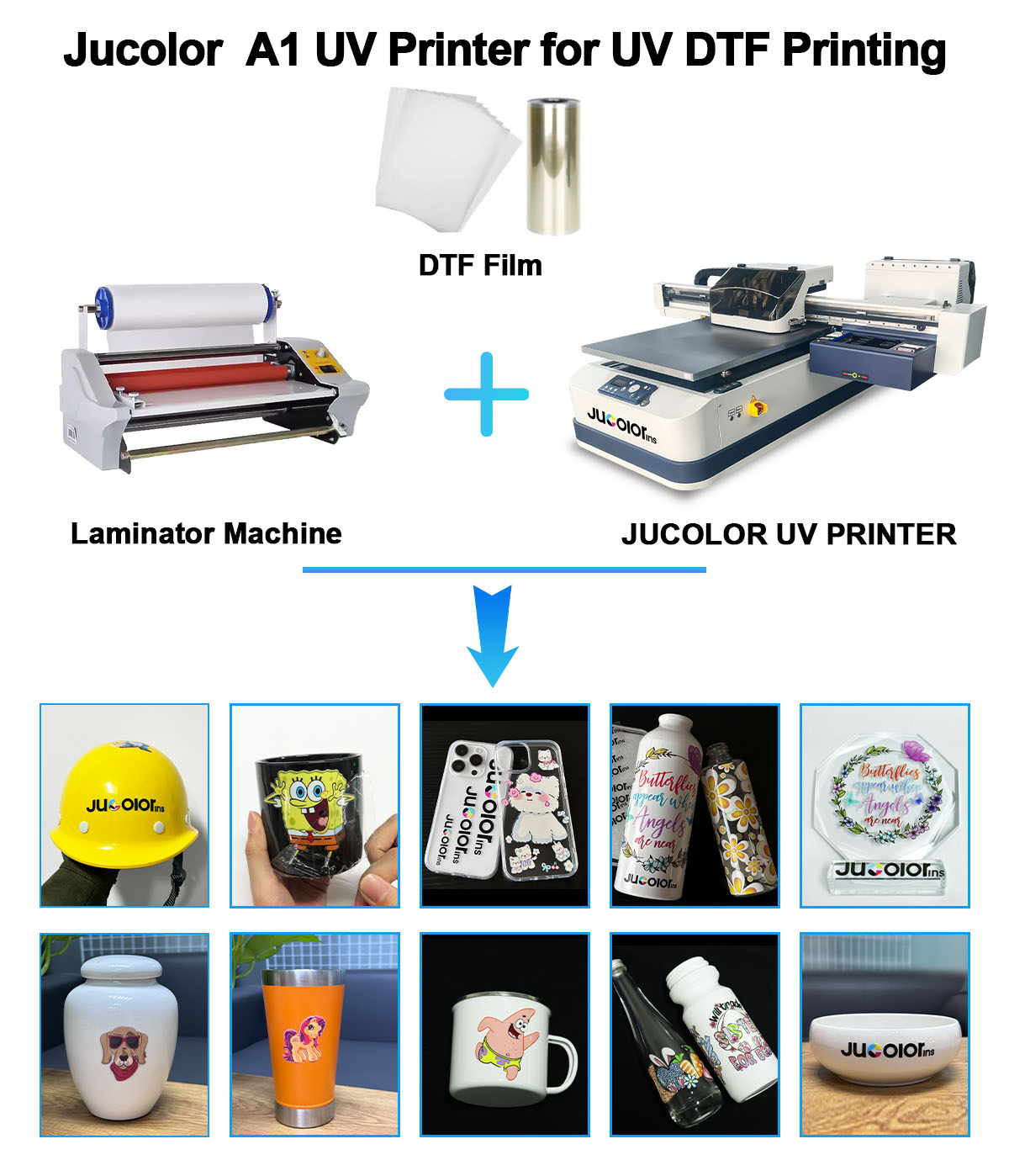

UV crystal DTF printing machine
This Jucolor uv dtf printer machine supports UV DTF printing Print directly on the uv dtf film, then use laminating machine to laminate after printing, then cut and stick to the medias
The working principle of uv dtf printer is to print the picture on the glue, and stick it to the material you want to print. It is flexible and convenient, suitable for label printing of consumables, but also has disadvantages such as non-waterproof, poor adhesion, and non-ultraviolet protection

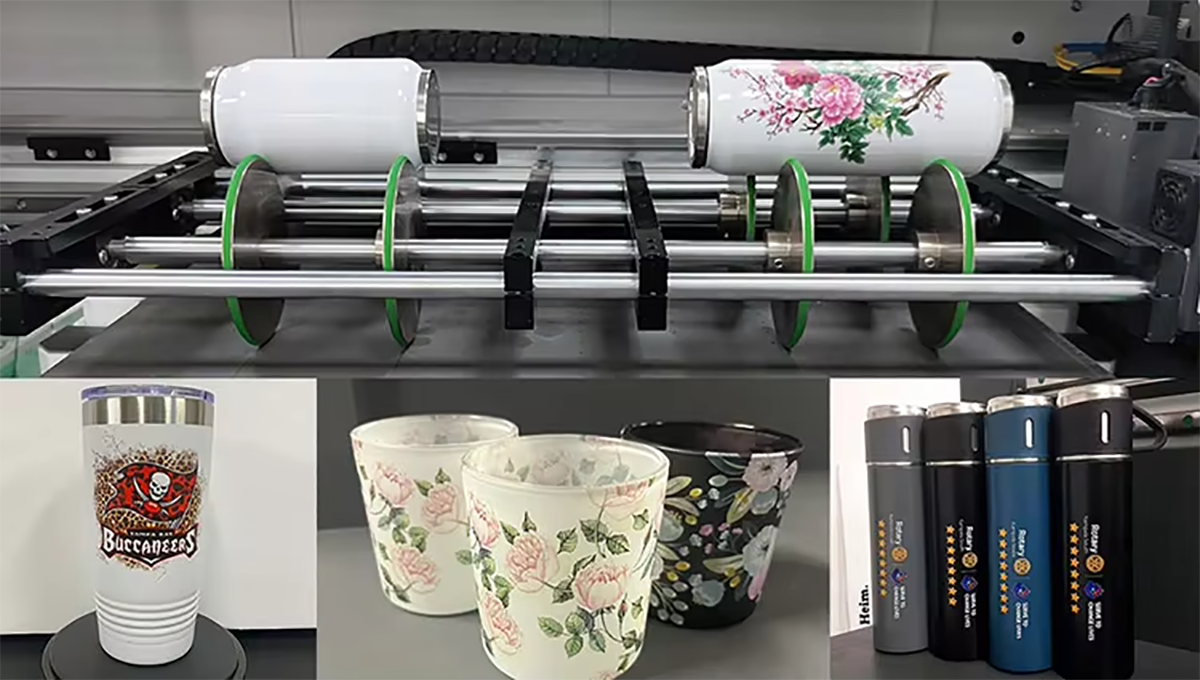

Flat-rotary dual-purpose UV printer
This Jucolor 6090HD model A1 size uv printer can not only print flat objects but also cylindrical materials. It is equipped with a rotating fixture independently developed by Jucolor group, can directly print various cups, such as straight-through cups, thermos cups, electronic cigarettes, candles.

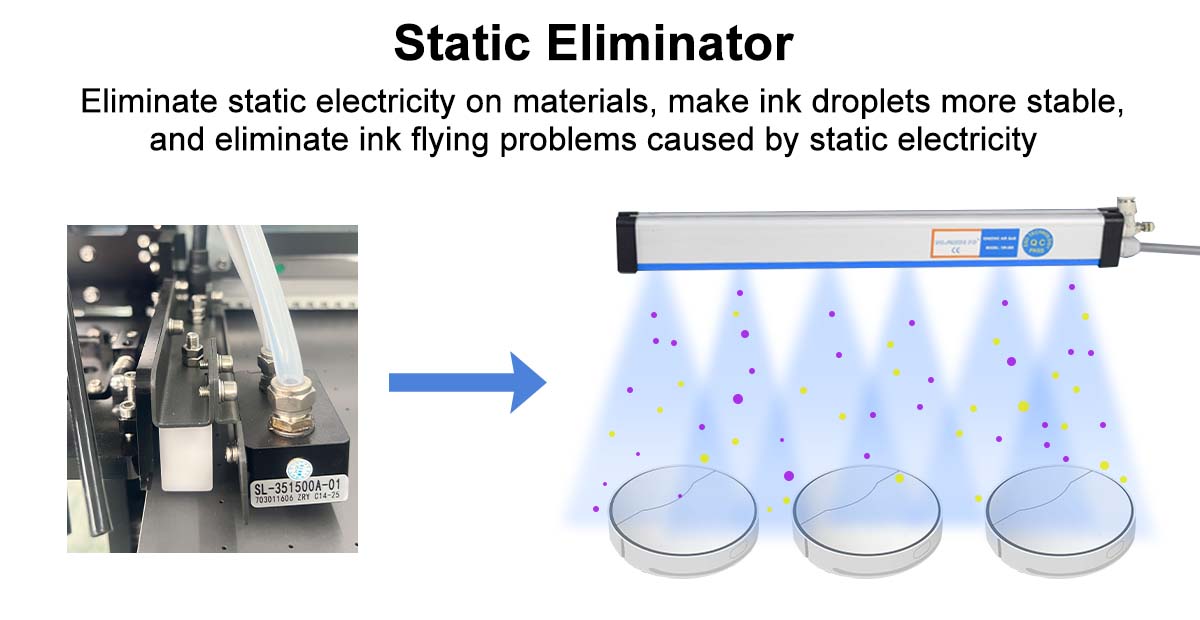

Static Eliminator
Jucolor uv dtf printer Eliminate static electricity on materials, make ink droplets more stable, and eliminate ink flying problems caused by static electricity

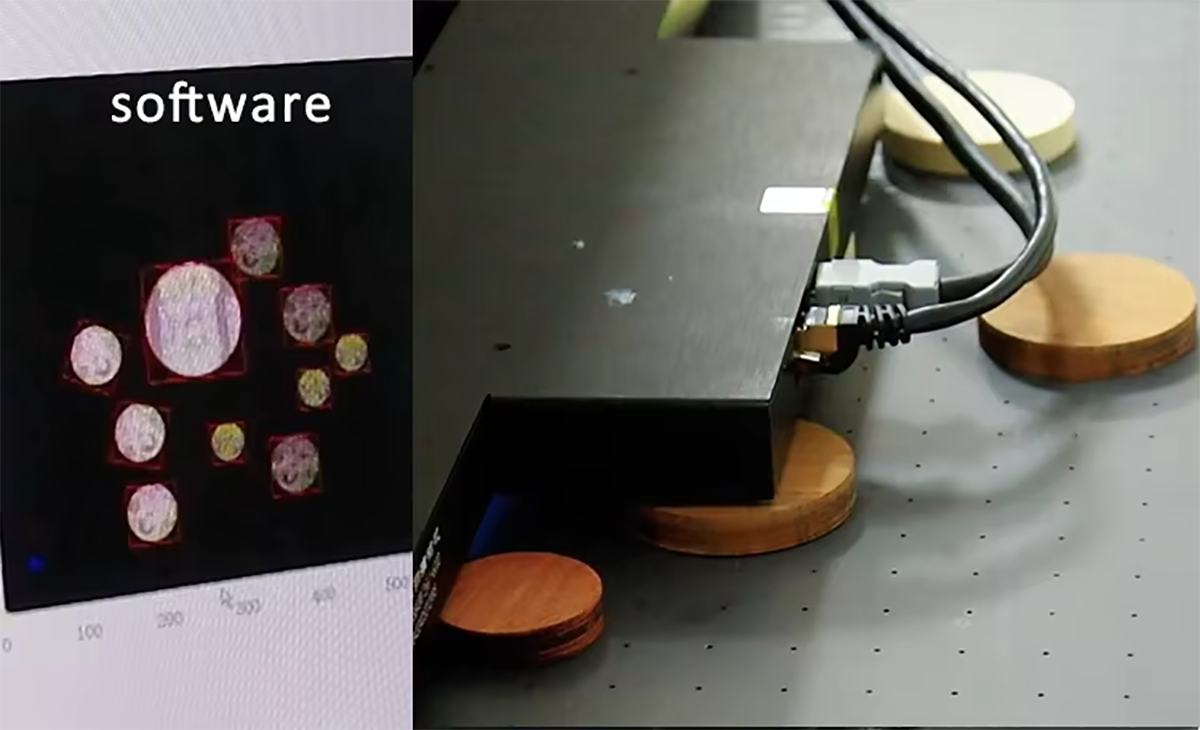

AI Camera Auto-Visual Position system optional
Use the newest technology, AI Camera Auto-Visual Position system,
Automatically identify the position, quantity, and shape of materials, and automatically achieve accurate matching of the position and size of images and materials without manual typesetting
and control of recognition error within ±0.1mm.

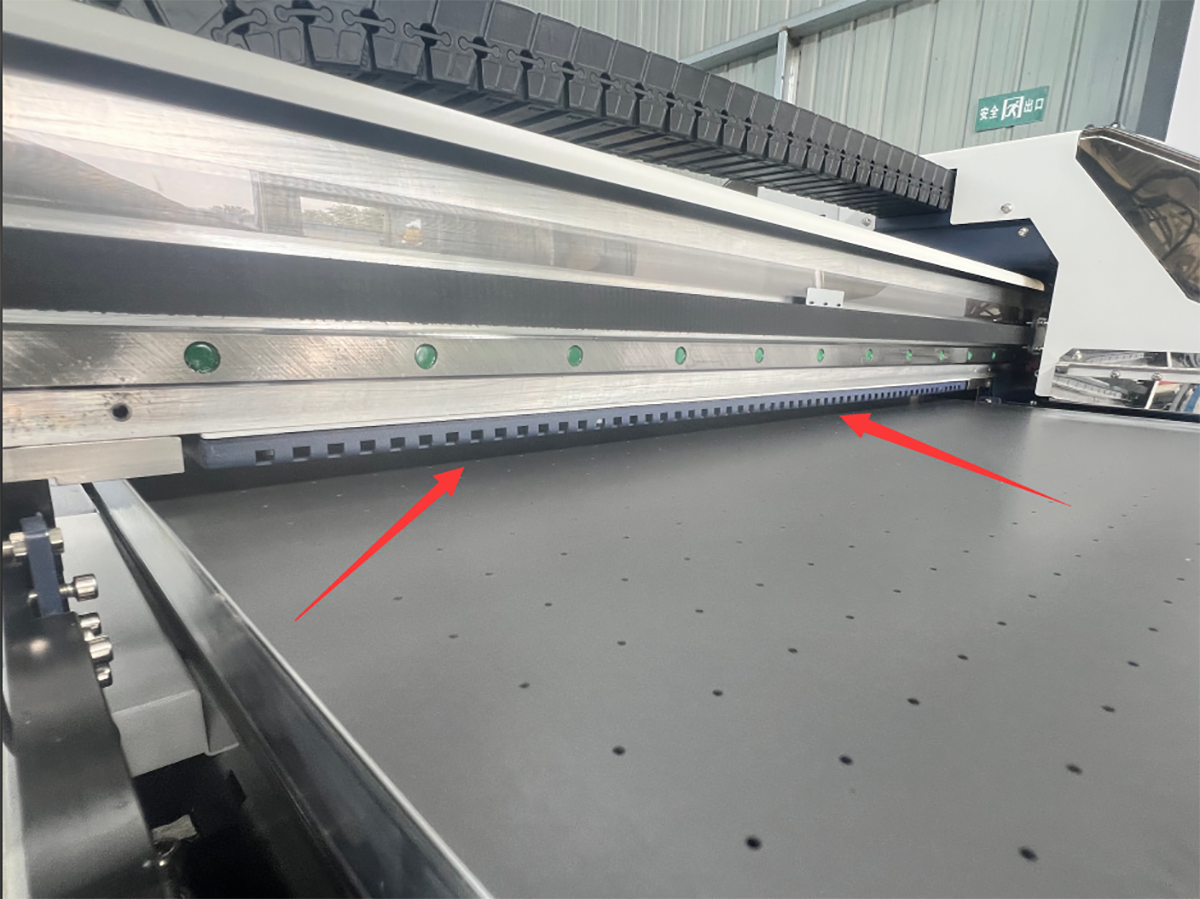

Mist Extraction System
Used to prevent build up of ink and other debris.
This mist extraction unit consists of fan and filter system and Large nozzles that suck the inks mist and other particles
Helps to maintain eco- friendly work environment and keep good printing quality
The printer has 1 year warranty, during this period, any parts are damaged, we will repair and replace new for you, except print head, all shipping cost of after-sale is our responsibility
We established a professional engineers team, we will give you lifetime service. When you get the printer, our engineers team will set up a group to provide you with one on one technical support, guide you how to operate the printer step by step till you use well
Jucolor adopts latest technology, strict quality control for every parts before printer shipment, hope you can get a good cooperation experience with us.
Choose Jucolor 6090 UV Printer
Starting Your Business with High Quality Machine
We have a certain amount of inventory and can complete the shipment within 1-3 days.
We use good packaging for our products, which allows them to safely reach customers during transportation.
If you want to know more about 6090 uv printer, please go to our new website.
