Jucolor A0 size 10-color 160*130cm/5*4ft print size, 36cm/14in print thickness Industry UV Printer with AI-scanner camera

Short Description:

  Jucolor  CJ-UVF1613Pro-10C  A0 Industry UV Printer is designed and produced by Jucolor group. 160*130cm/5*4ft effective print size and 36cm/14in print height meet customers‘ needs for medium-sized printing size and large thickness printing. Industrial-grade board control system has strong stability, ease of use, and versatility.
  Ricoh Gen5/Gen6 stainless steel all-metal print head, stronger stability, faster print speed, and larger effective spray distance, greatly meet customers’ speed and printing accuracy and high-jet printing requirements. Support high-quality output,
  10-color, White+KCMY,LC,LM, Grey, LGrey/Red+Varnish, photo-level printing output, provide bright, colorful, good touch, low graininess, and smooth layering printing effects.
  Ideal cost-effective solution for personalized souvenirs, customized gifts, advertising printing,industrial production and special promotional materials. can print thick media with high print quality, large print droplet printing, low maintenance and flexible printing.

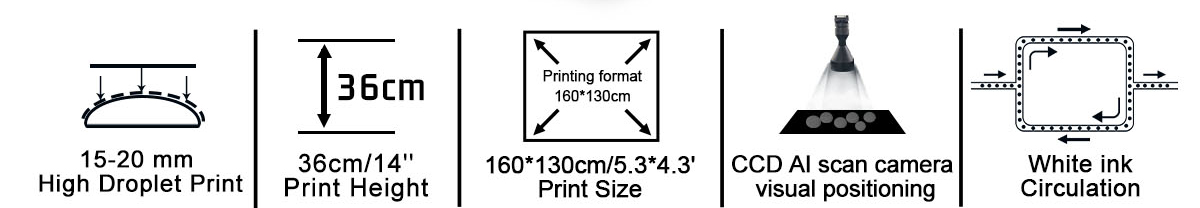

  Optional AI-scanner visual automatic positioning system makes printing easier without complex positioning and calculation


  • Print model: CJ-UVF1613Pro-10C
  • Print Size: 160*130cm/5*4ft, 15cm print height
  • Print thickness: 1-360mm/0-14inches
  • Print Head: RICOH GEN6(MH5340) Industry Inkjet Print Head
  • Ink Color: 10-color, White+CMYK/CMYK,LC,LM+Grey, Lgrey/RedVarnish
  • Resolution: 720dpi, 900dpi, 1200dpi
  • Application: Wood, PVC,Glass, Metal, MDF,board, leather,ext
  • Advantage: 15mm/20mm max high droplet printing
  • Product Detail

    https://www.instagram.com/jucoloruvprinter/
    https://www.instagram.com/jucoloruvprinter/
    新款2513-2

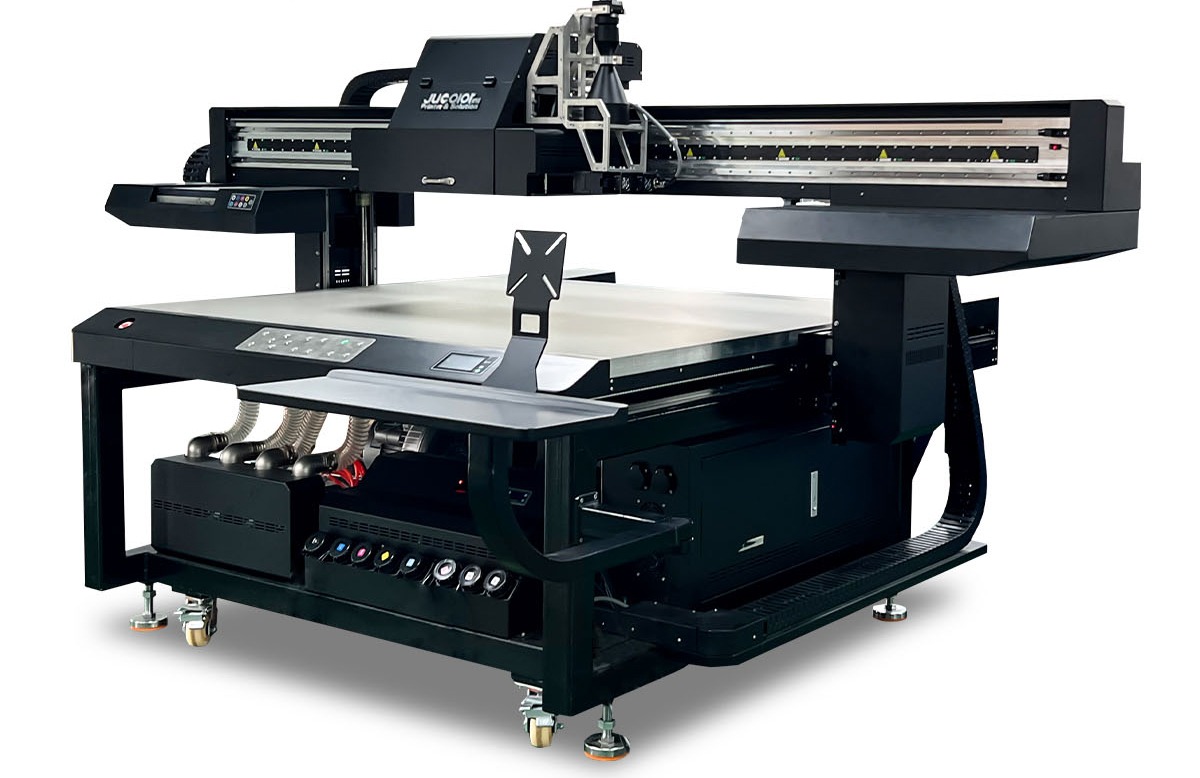

    Jucolor CJ-UVF1613Pro-10C, 10-color A0 Industry uv led flatbed printer with  AI-scanner visual automatic positioning system

    Model

    CJ-UVF1613Pro-10C

    Ink type

    Uv led curing ink

    Print head

    RICOH GEN6 Industry print heads

    Ink color

    CMYK, LC,LM,Grey, LGrey/Red , White, Varnish

    Print size

    160*130cm/5*4ft

    Print height

    36cm/14in

    Numbers of print heads

    4/6

    Cartridge Capacity

    1500 ML each color, lack of ink alarm,White Ink Stirring

    Printing medias

    Glass, Acrylic, Wood, , Metal sheet, PVC,Plastic,Ceramic,Paper Leather, PP, PE, PTFE… etc

    Printing speed

    Print heads

    4pcs

    6 pcs

    Draft

    13.8㎡/h

    27.7㎡/h

    Production

    10.4㎡/h

    17.8㎡/h

    Quality

    7.8㎡/h

    12.4㎡/h

    High quality

    6.2㎡/h

    8.3㎡/h

    Resolution

    720DPI, 900DPI,1200DPI

    Power Supply

    50/60Hz, 220-240V 5KW

    Working temperature

    16℃-30℃(62℉-86℉)

    RIP software

    SAI flexi print

    Working humidity

    40%-60%

    Printer size

    3175*2165*1420mm,1000KG

    Packing size

    3450*2250*1560mm, 1500KG



    https://www.instagram.com/jucoloruvprinter/

      This UV printer A0 Using Japan's Ricoh Gen6 all-metal industry print head, Ricoh Gen6 print head adopts an all-steel structure, which is extremely corrosive, long working life, can work more than 4 years, high stability, greatly reduces maintenance time and cost.
      5.0pl , the variable drop technology enables excellent print output quality
    According to customers' needs, Jucolor 1613 uv printers can support up to 6 pcs print heads,

    https://www.instagram.com/jucoloruvprinter/

    Variable drop technology, Small/middle/large,, three different dot sizes switched freely, provide smooth quality and less graininess
    high quality printing without noticeable banding

    https://www.instagram.com/jucoloruvprinter/https://www.instagram.com/jucoloruvprinter/

      Proximity sensor for operators safety
      CJ-UVF1613Pro-10C uv printer equipped proximity sensor. During printing, as long as operators enter printing motion area, will be triggered and printing will be paused to avoid hitting people, effectively protecting the safety of operators. Click to continue printing

    https://www.instagram.com/jucolorhttps://www.instagram.com/jucoloruvprinter/uvprinter/

    Hard oxide adsorption platform with automatic positioning function.
      Jucolor 1613 uv printers use Hard-oxidized honeycomb-hole sub-chamber adsorption platform has strong adsorption capacity, which can effectively absorb printing material during printing process, prevent printing material from shifting, effectively ensure high-precision printing output, avoid print heads scraping caused by material warping. Damage problem, adsorption area can be adjusted at will, platform surface has high hardness, scratch resistance, corrosion resistance, easy to clean

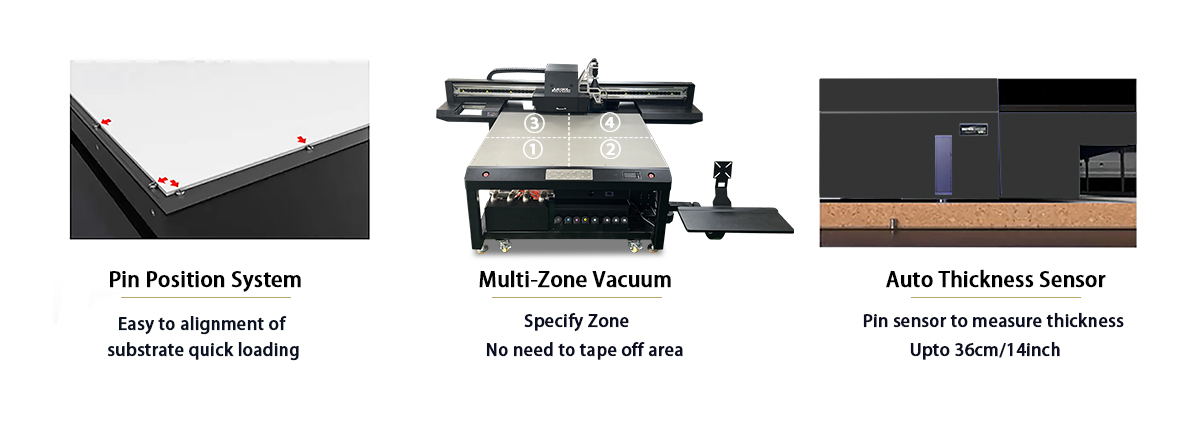

      Pin Position System
    easy to alignment of substrate quick loading, facilitate users to quickly find printing position and allow customers to quickly place materials

    https://www.instagram.com/jucoloruvprinter/

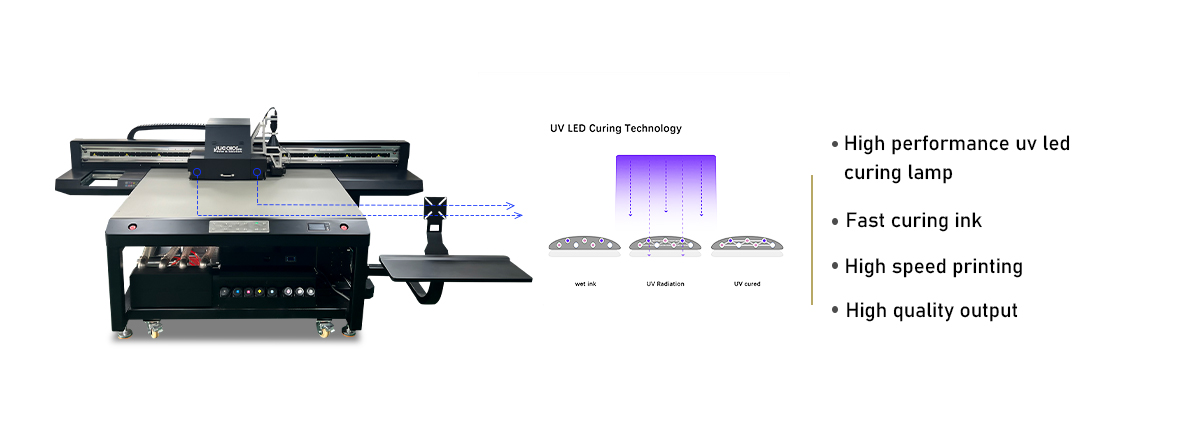

    LED-UV curing lamp
    Using high-performance lamp bead water-cooled curing lamp, the light source is environmentally friendly and pollution-free, inline with UL standards, the lamp bead life is about 40,000 hours, the light source temperature is low, and it can adapt to more temperature-sensitive materials.

    https://www.instagram.com/jucoloruvprinter/

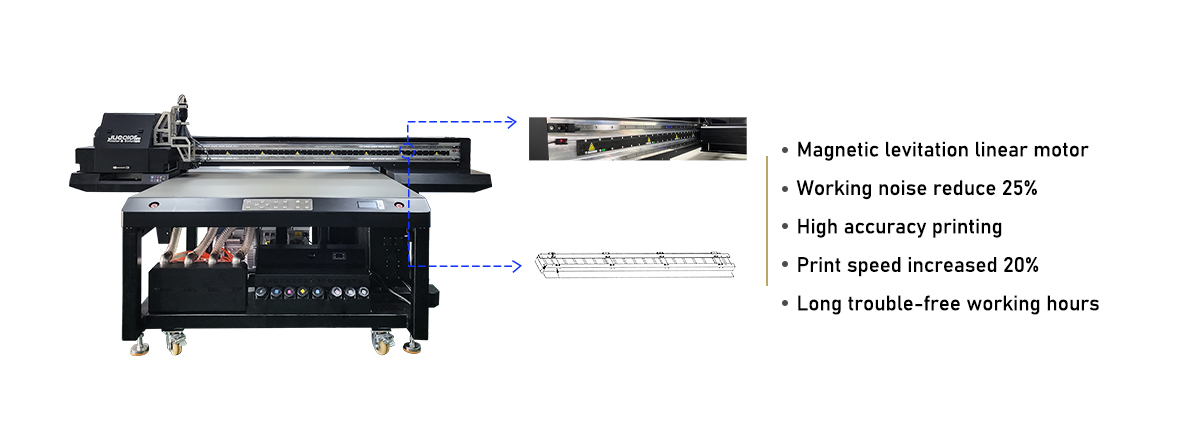

    Magnetic levitation linear motor
    * Jucolor 1613 Gen6 print head printer adopts linear motor, reliable and long life, fast printing speed, simple structure, accurate ink point position, high positioning accuracy, easy maintenance, low printing noise, fast response speed, long running time without wear.
    * Compared with transmission belt drive, printing speed of the linear motor is increased by 20%-25%, which greatly meets the customer's requirements for printing speed. * Low noise effectively alleviate noise in working environment, reliable and long life can effectively reduce replacement cost.

    2513内页图 6
    2513内页图 9

    Circulation System
    The Circulation System can limit the settlement of white ink, Avoid print heads blocked by inks sedimentation, thus greatly prolonging the service life of the print head.

    2513内页图 10

    The all-metal secondary ink cartridge

    Excellent corrosion resistance. UV ink is corrosive chemical liquid. so corrosion resistance of secondary ink cartridge is very important, which can effectively prolong working life. Avoid high failure rate and high maintenance rate.



    2513内页图 13

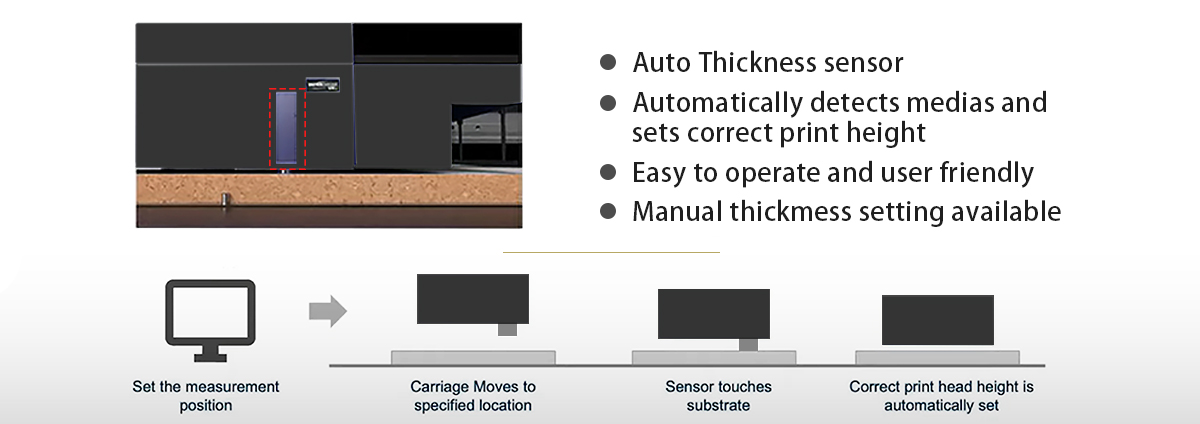

    Automatic height measuring system

    Automatically detect the suitable printing distance between the nozzle and the printing material. Accurate, efficient, convenient and fast, effectively avoid problems such as ink flying and blurred printing quality caused by incorrect printing height, ensure high-quality print output, effectively support bidirectional high-speed printing

    2513内页图 15

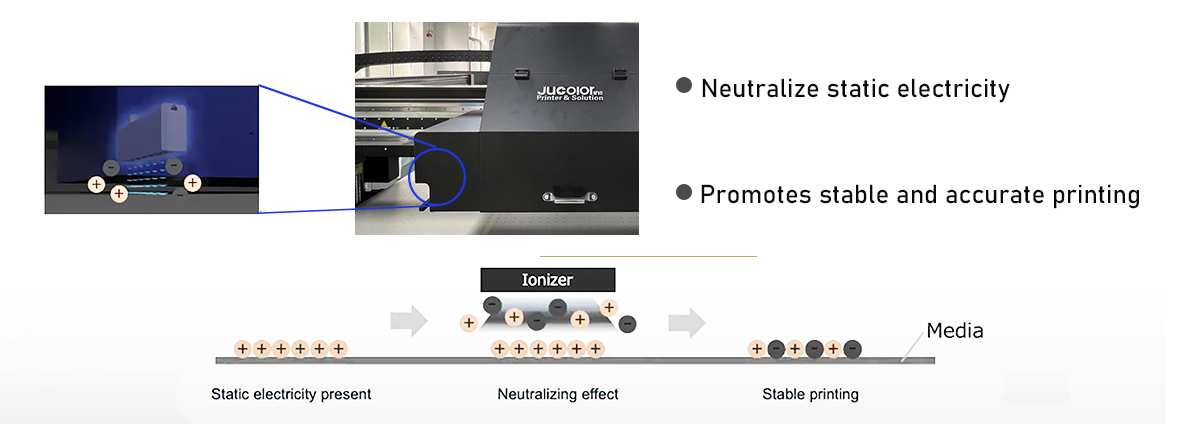

    Static Eliminator
    Eliminate static electricity on materials, make ink droplets more stable, and eliminate ink flying problems caused by static electricity

    https://www.instagram.com/jucoloruvprinter/

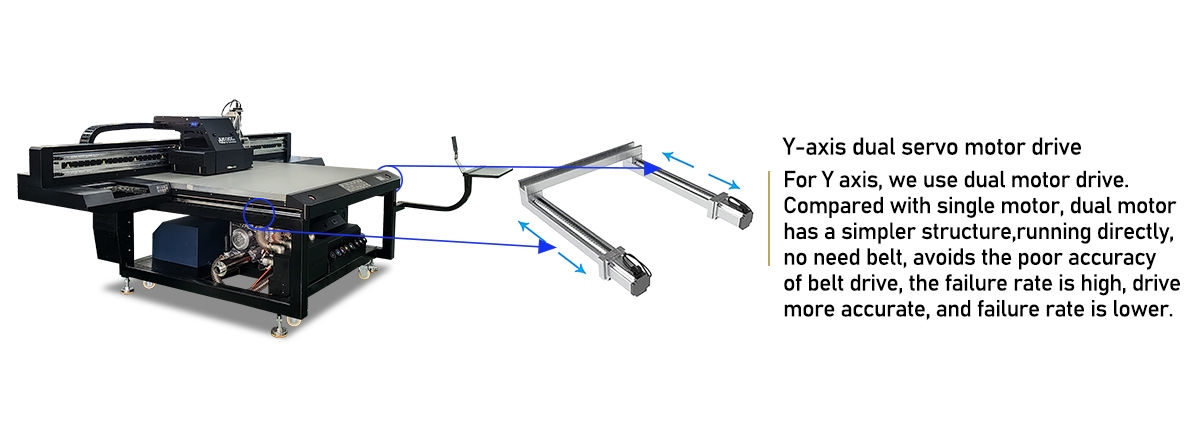

    Y-axis dual servo motor drive

    For Y axis, we use dual motor drive. Compared with single motor, dual motor has a simpler structure,running directly, no need belt, avoids the poor accuracy of belt drive, the failure rate is high, drive more accurate, and failure rate is lower.
