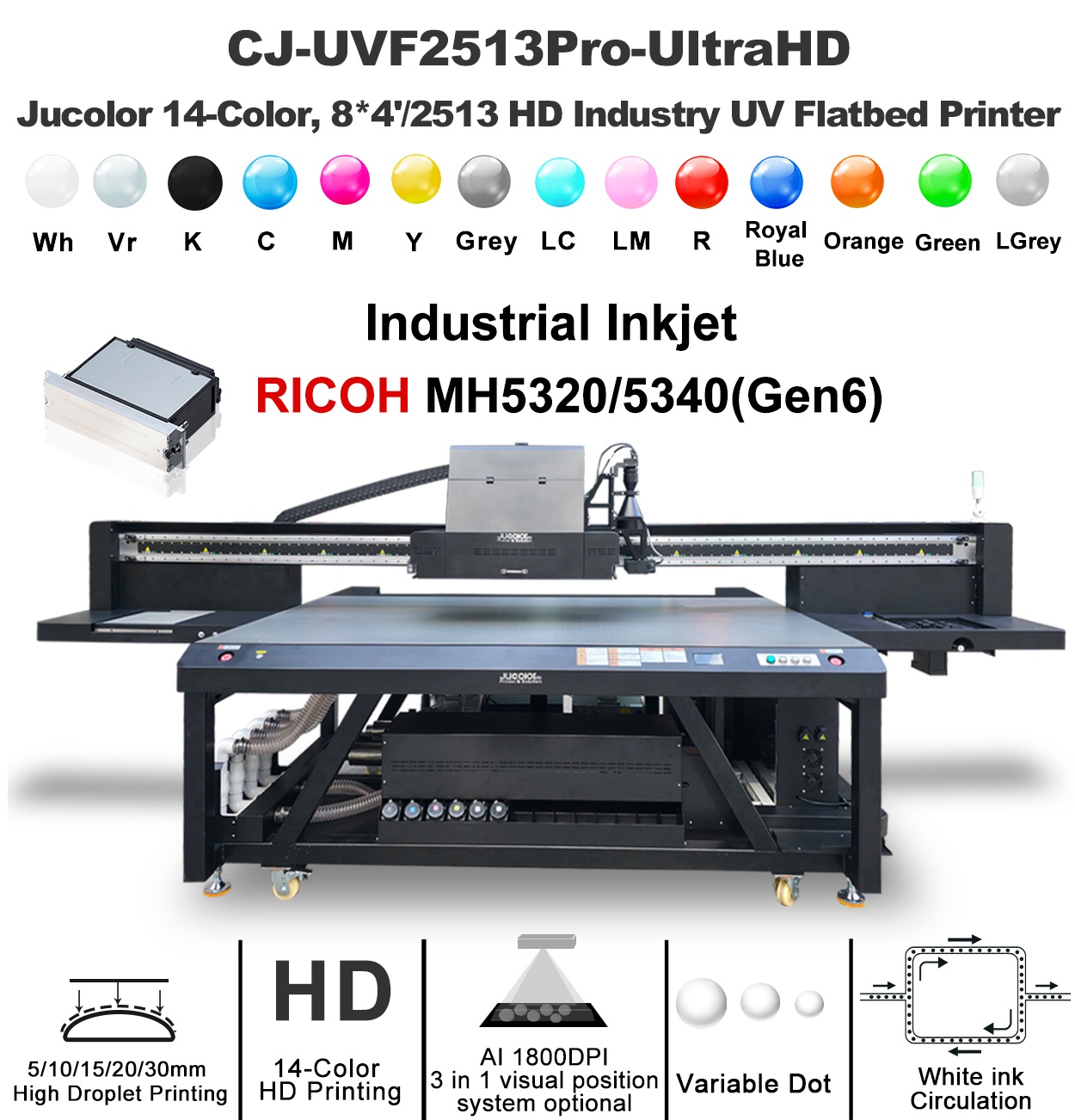

Jucolor CJ-UVF2513Pro-UltraHD 14-Color Ultra High Definition Large Format lndustry 4′ x 8′ UV Flatbed Printer
The Jucolor 2513Pro-UltraHD 14-Color Large-Format Industrial UV Flatbed Printer is a high-definition, flexible, and high-capacity 14-color UV flatbed printer that maximizes out put quality and print speed.
Utilizing 14-color eco-friendly UV ink and 5PL piezoelectric variable droplet technology printheads, delivers crisp, vibrant colors, and detailed prints with minimal graininess and smooth gradations. It's ideal for printing high-quality advertising signs, customized products, and industrial products.
It is equipped with five Ricoh GEN6 industrial-grade metal printheads, which effectively improves printing efficiency and accuracy.
It can print on virtually any media type, including rigid and flexible media, carpets, computer cases, metal, toys, bottles, Braille, small tubes, pens, phone cases, glass, plastic, wood, leather, rubber, lighters, wood, PVC, acrylic, aluminum, tiles, marble, canvas paintings, and more.
The optional 1200DPI AI-scanner vision-based automatic positioning system makes printing easier, eliminating complex positioning and calculations.
245*125cm/63''*51.2'' effective print area and 20cm/7.87in print height effectively meet customers' daily commercial printing needs.

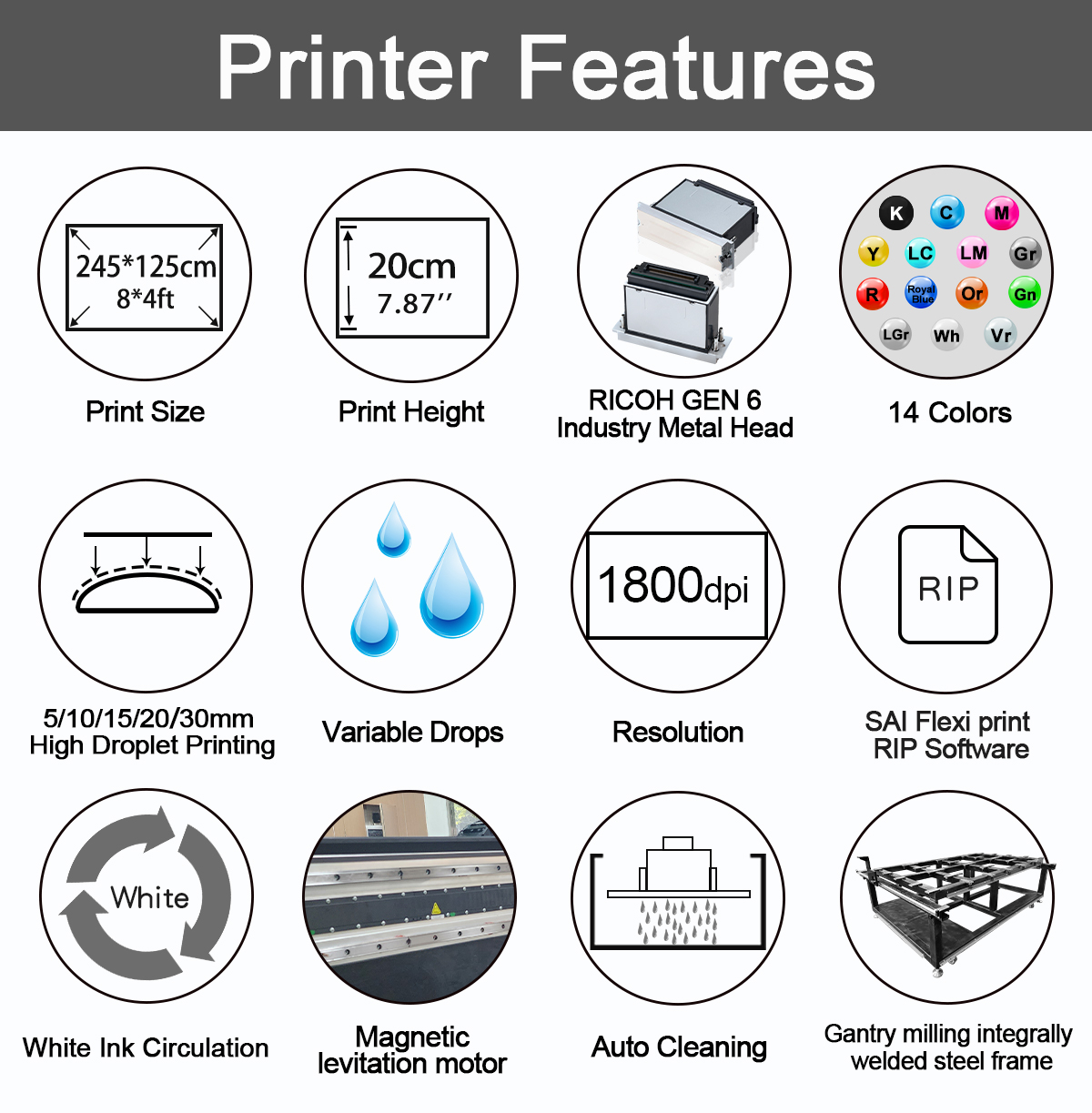

Key Advantages:
* 5 pcs Ricoh G6 Industrial Metal Printhead
* 14-color CMYK, LC,LM,Grey, LGrey/Red White, Varnish, RoyalBlue, Orange, LGrey, Green
* Photo-quality printout
* 245 x 125cm/8 x 4' print size, 20cm/7.87" print height
* Optional AI camera auto vision positioning system
* 3D relief printing, Varnish gloss and matte printing

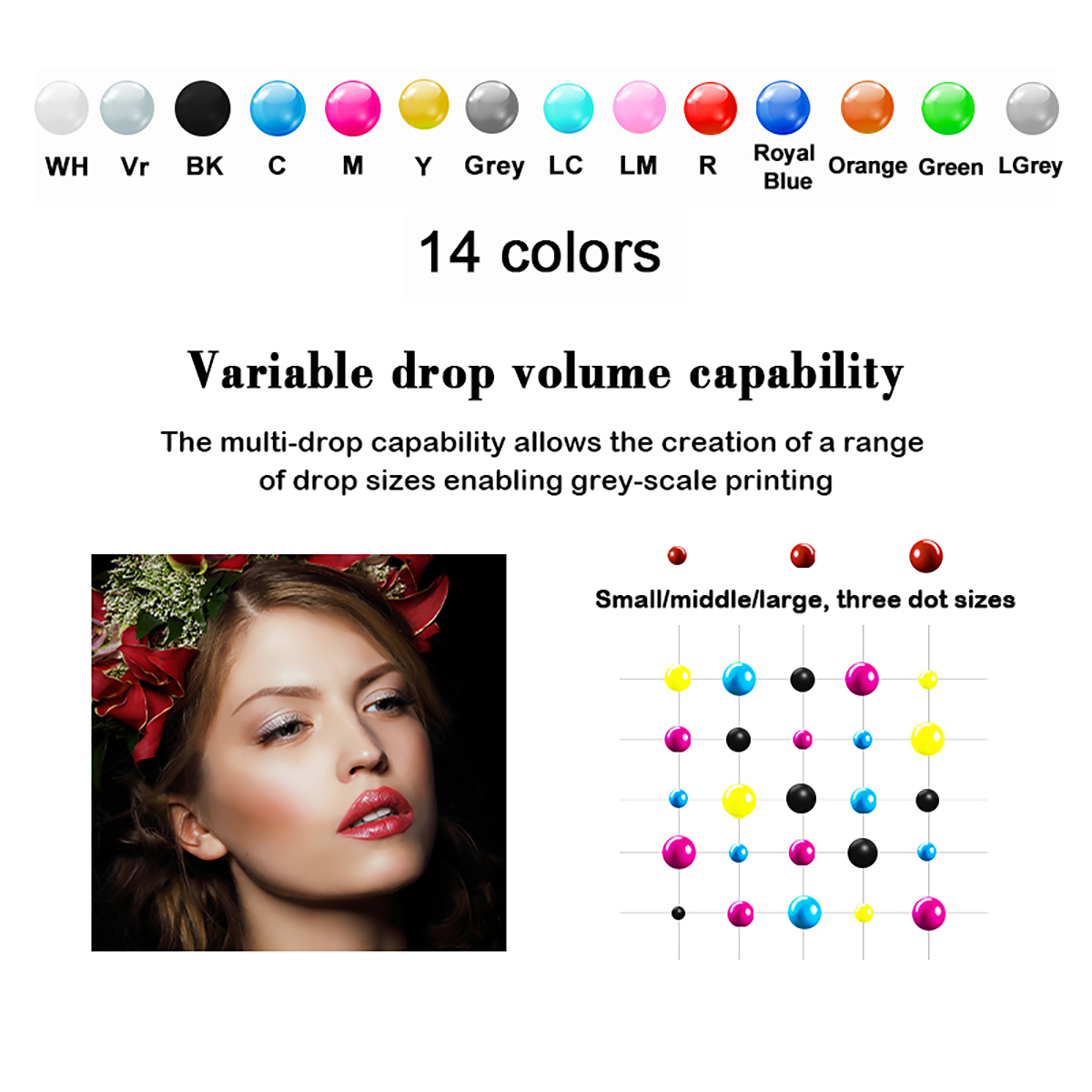

* Variable droplet technology minimizes graininess
* High-speed printing, supporting bidirectional printing
* High stability, low maintenance, and open design for easy maintenance
* Magnetic levitation motor, higher precision, faster speed, and lower noise
* Japanese THK high-precision guide rails, increased durability and quietness
* Magnetic strip encoder more accurate printing and lower failure rates
* Dual negative ink supply, greater stability and continuous ink supply
* White ink circulation effectively prevents ink settling
* Ink constant temperature heating system effectively ensures smooth ink flow
* Auto cleaning and moisturizing unit
* Auto ink scraping system eliminates the need for manual scraping

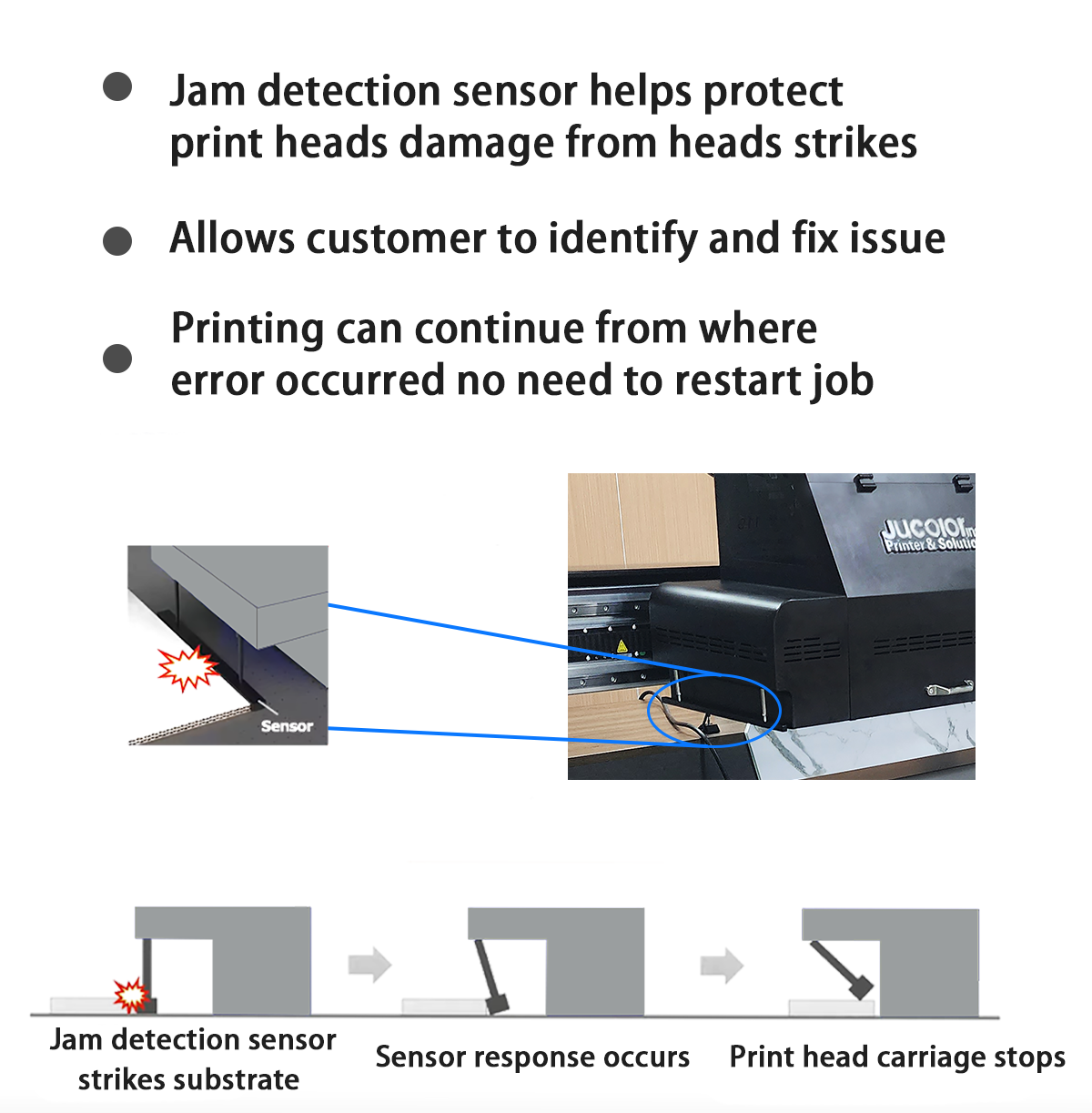

* Highly sensitive print head anti-collision and light shielding system effectively protects print head
* Gantry milling steel welded body structure ensures stability, deformation resistance, enhancing precision
* 250 x 130 cm scratch-resistant Teflon-coated vacuum adsorption platform with built-in auxiliary positioning pins
* High-precision Y-axis screw drive for smoother operation
|
Jucolor CJ-UVF2513Pro-UltraHD 14-Color High Definition 8*4' Industry Large Format UV Flatbed Printer |
|||
|
Model |
CJ-UVF2513Pro-UltraHD |
Ink type |
UV Led curing ink |
|
Print head |
RICOH MH5320/5340 Industry heads (Gen6) |
Ink color |
14-Color: CMYK, LC,LM,Grey, LGrey/Red White, Varnish, RoyalBlue, Orange, LGrey, Green |
|
Print size |
245*125cm/8’*4’ |
Print height |
20cm/7.87’’ |
|
Numbers of print heads |
5 pcs |
Cartridge Capacity |
1500 ML each color, lack of ink alarm,White Ink Stirring |
|
Printing medias |
Glass, Acrylic, Wood, , Metal sheet, PVC,Plastic,Ceramic,Paper Leather, PP, PE, PTFE… etc |
||
|
Printing speed |
Print head amount |
4 PCS |
6 PCS |
|
|
Draft |
22.96 ㎡/h |
45.9 ㎡/h |
|
|
Production |
18.37 ㎡/h |
30.62 ㎡/h |
|
|
Quality |
12.25 ㎡/h |
18.37 ㎡/h |
|
|
High quality |
6.12 ㎡/h |
12.25 ㎡/h |
|
Resolution |
900DPI,1200DPI, 1800DPI |
||
|
Power Supply |
50/60Hz, 220-240V 5KW |
Working temperature |
20℃-30℃（72℉-86℉） |
|
RIP software |
RIP Print/SAI flexi print 24 Jucolor Edition |
Working humidity |
40%-60% |
|
Printer size |
4175*2165*1420mm,1500KG |
Packing size |
4450*2250*1560mm, 2250KG |

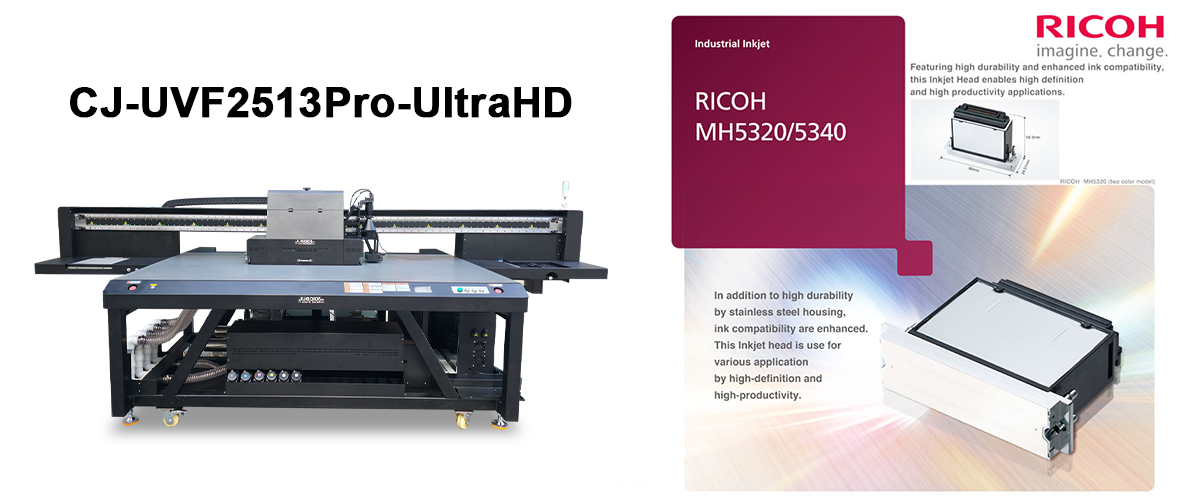

Japan's Ricoh Gen6 all-metal industry print head
Using Japan's Ricoh Gen6 all-metal industry print head, Ricoh MH5340 Gen6 print head adopts an all-steel structure, which is extremely corrosive, long working life, can be more than 3 years, high stability, greatly reduces maintenance time and cost.5.0pl, the variable drop technology enables excellent print output quality. According to customers' needs, Jucolor 2513 uv printers can support up to 12 pcs print heads.
Jucolor UltraHD UV printing effect
The Jucolor UltraHD series UV printers utilize specialized neutral gray ink to significantly enhance image print quality. This color ink delivers pure and smooth grayscale transitions, enriches photographic tonal depth, effectively expands the color gamut, and improves performance in light-color areas.
The output exhibits natural gradients without color cast, noticeably reduces ink dot accumulation and graininess, and ensures even, delicate color distribution with barely visible dots. The result is a highly flat surface and sharp, clear reproduction detail.
Furthermore, this ink system helps reduce ink consumption, increases printing efficiency, and ensures outstanding color stability and consistency, meeting professional-grade printing demands.

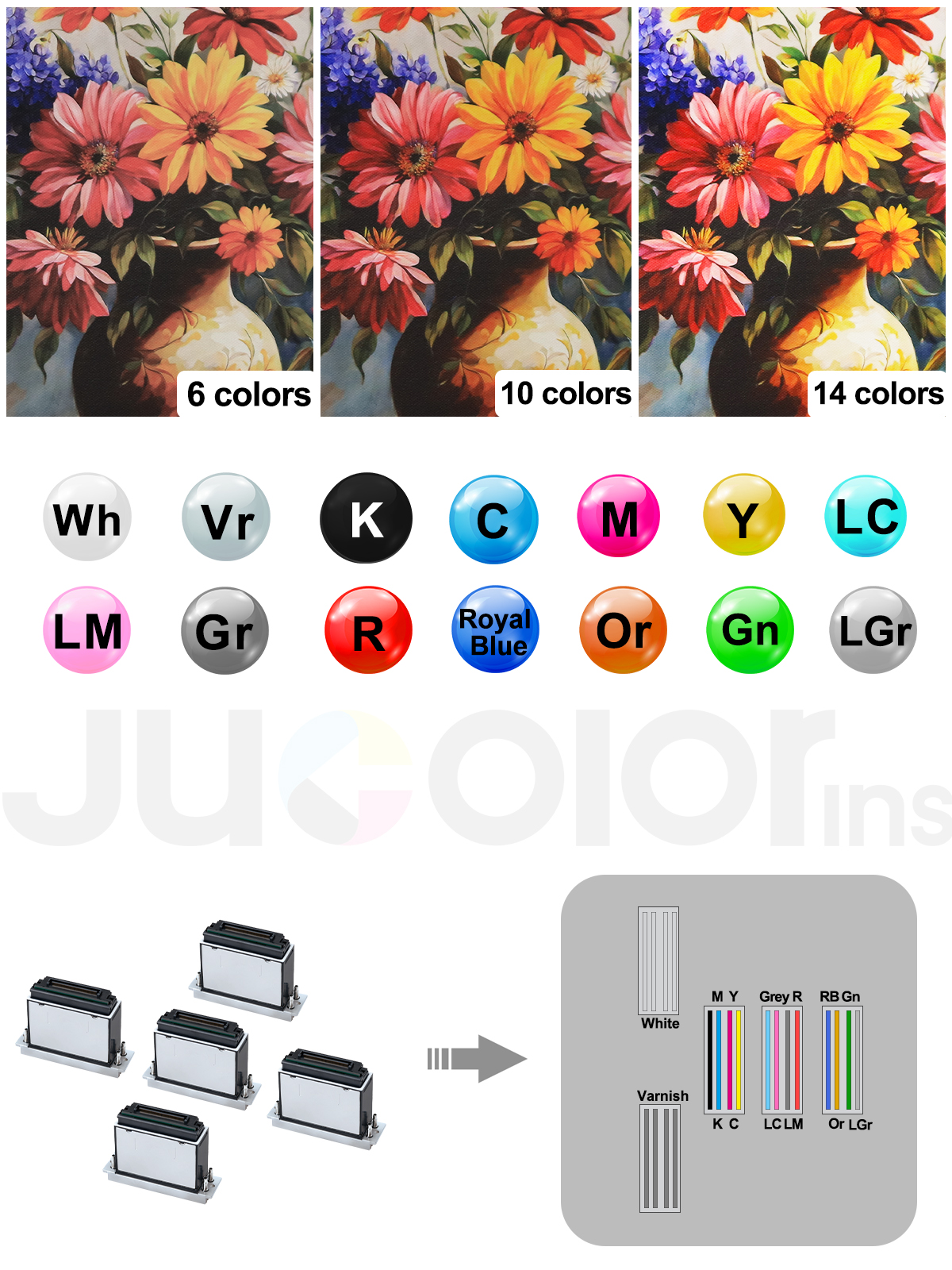

Jucolor 2513Pro-UltraHD 14-color Solution
The Jucolor 2513Pro-UltraHD UV 14-color printer uses CMYK, LC, LM, Grey, LGrey/Red/White, Gloss, Royal Blue, Orange, LGrey, and Green UV eco-friendly inks to provide a superior printing experience and professional-grade output.:
Excellent Color Performance
Vibrant and saturated colors significantly expand the color gamut, producing striking bright red tones
Accurate spot color reproduction ensures high consistency across different print batches
Effectively reduces graininess and enables smooth gradients with refined, natural transitions
High-Efficiency Printing
Large red graphics can be covered in a single pass with specialty ink, dramatically increasing printing speed
Combined with a white undercoating process, it achieves excellent coverage and color saturation even on dark materials
Expanded Creative Possibilities
Offers more efficient production solutions and broader creative opportunities for high-end packaging, brand displays, artistic creation, and professional signage.
The JuColor CJ-UVF2513Pro-UltraHD UV printer is equipped with an 14-color eco-friendly UV ink system, including CMYK, LC,LM,Grey, LGrey/Red White, Varnish, RoyalBlue, Orange, LGrey, Green. Leveraging this extensive range of standard and specialty inks, this 8*4ft uv printer achieves 2.5D embossed effects, producing outputs with exceptional gloss, vivid color reproduction, refined detail, minimal graininess, and smooth gradients—delivering outstanding visual and tactile quality.

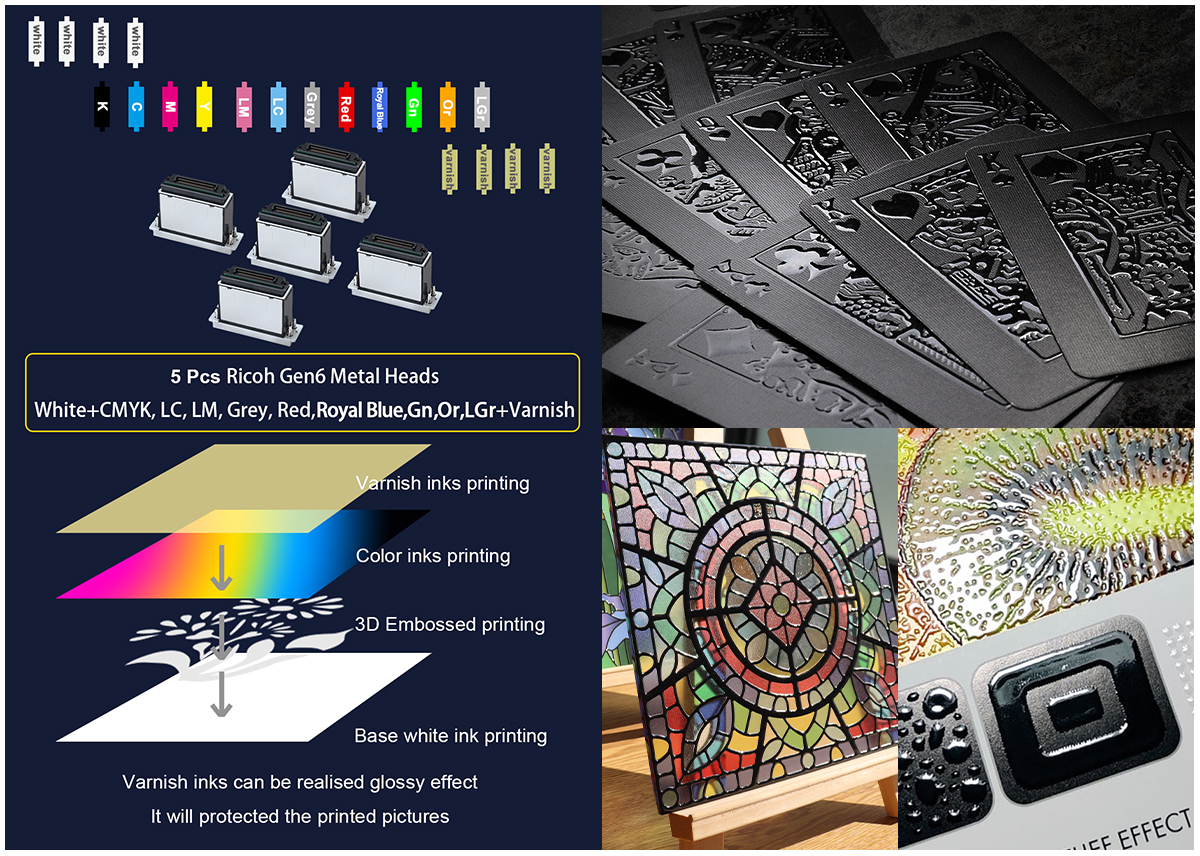

3D relief printing
Equipped with five Ricoh Gen6 Industrial Metal Printheads, varnish and white ink are printed by separate printheads, enabling 3D relief printing and quickly producing 3D relief effects with a strong three-dimensional feel.
Varnish gloss and matte printing
Supports white, color and varnish inks printing together, outputs good varnish glossy effects, also can prints matte varnish effects.
Printing varnish inks on top of printed medias can also protect the printed image to avoid scratches.
JuColor's three-in-one AI visual positioning system
Utilizing 1200dpi,4K large-format camera, effectively ensures scanning accuracy within 0.1mm, enabling a single scan width of up to 70mm. Bidirectional scanning is supported, ensuring both speed and precision.
It features fast scanning speed and high accuracy, effectively ensuring accurate scanning. Its simple operation eliminates shortcomings such as misalignment and high print rejection rates, significantly simplifying the printing process, improving speed and productivity, and reducing defect rates.
Three-in-one RIP software, printer control software, and visual scanning control software greatly simplify the user experience and provide convenient user experience.
It can be used for printing on lighters, handicrafts, buttons, gift boxes, badges, toys, and industrial production.

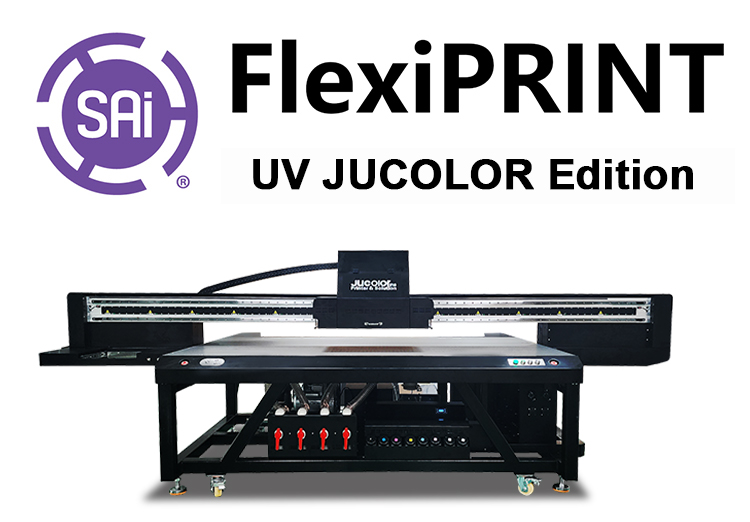

USA brand SAI Fleix print Latest version Jucolor Edition RIP software
International advanced professional RIP color management software, Fleix print Easy to use, stable, high color reproduction.
Led-UV Curing lamp
Using high-performance lamp bead water-cooled curing lamp, the light source is environmentally friendly and pollution-free, in line with UL standards, the lamp bead life is about 40,000 hours, the light source temperature is low, and it can adapt to more temperature-sensitive materials.

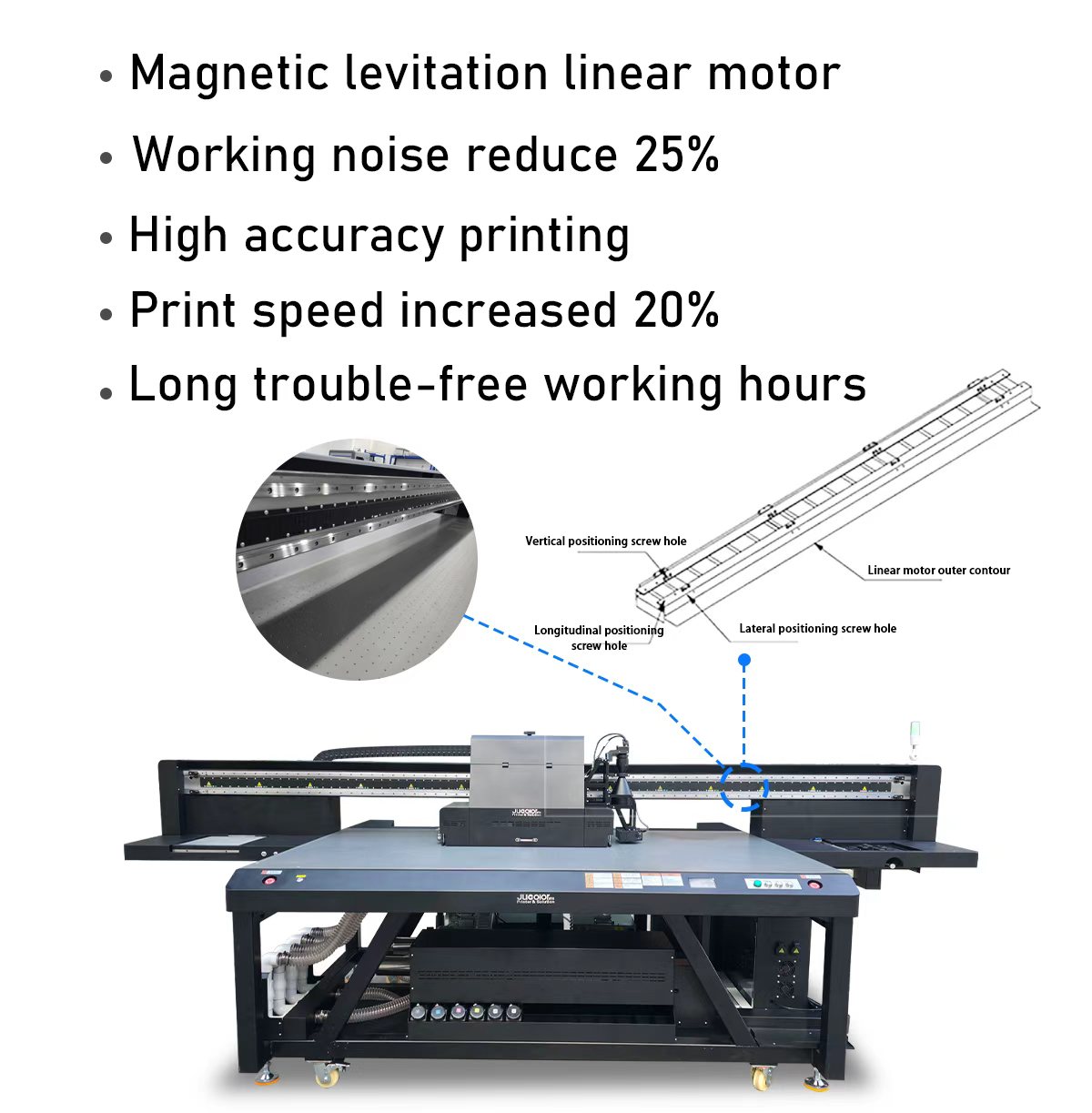

Jucolor 2513Pro-UltraHD Magnetic Levitation Linear Motor
JuColor 2513Pro-UltraHD 4’*8’ UV printer adopts linear motor, reliable and long life, fast printing speed, simple structure, accurate ink point position, high positioning accuracy, easy maintenance, low printing noise, fast response speed, long running time without wear.
Compared with transmission belt drive, printing speed of the linear motor is increased by 20%-25%, which greatly meets the customer's requirements for printing speed.
Low noise effectively alleviate noise in working environment, reliable and long life can effectively reduce replacement cost.
White ink circulation system
JuColor 2513Pro-UltraHD 14-color uv printer is equipped with white ink circulation device independently developed by Jucolor.
As we all know, uv led white ink is easy to precipitate, the color of white ink printing turns yellow, and head easy to be blocked, which greatly affects the life of print heads and the printing quality. Users often need to repeatedly clean print heads and pump ink to make the white ink print normally, which wastes manpower, time and ink.
JuColor engineers optimized ink supply system and added pump to make the ink circulate in the ink tube and ink cartridge, which can avoid white ink precipitation to the greatest extent, improve printing quality and reduce maintenance time and cost

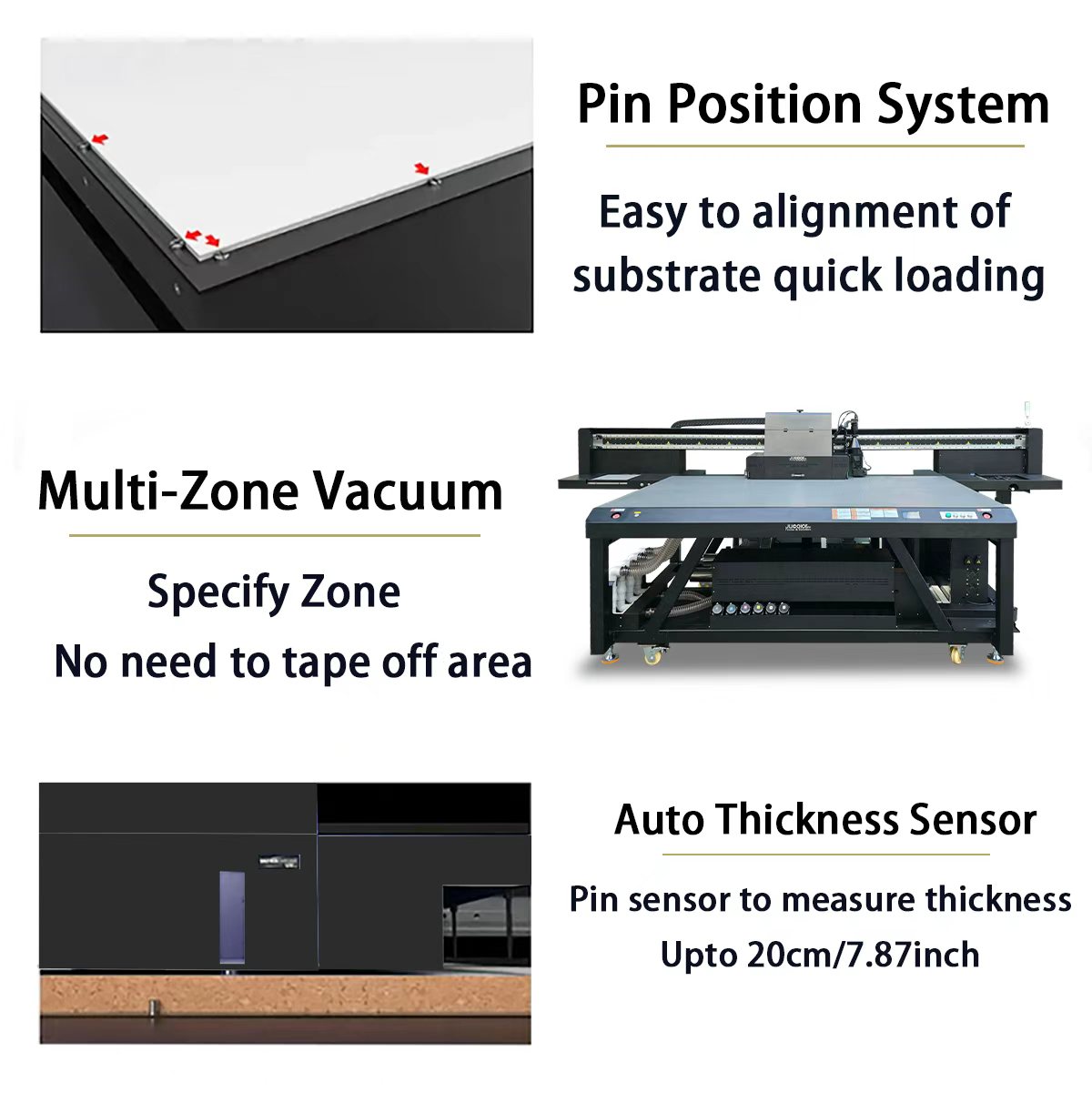

Hard oxide adsorption platform with automatic positioning function
Jucolor 2513Pro-UltraHD 4’*8’ 14-color size uv printers use Hard-oxidized honeycomb-hole sub-chamber adsorption platform has strong adsorption capacity, which can effectively absorb printing material during printing process, prevent printing material from shifting, effectively ensure high-precision printing output, avoid print heads scraping caused by material warping. Damage problem, adsorption area can be adjusted at will, platform surface has high hardness, scratch resistance, corrosion resistance, easy to clean.
Pin Position System
easy to alignment of substrate quick loading, facilitate users to quickly find printing position and allow customers to quickly place materials.
Auto Thickness Sensor
pin sensor to measure thickness upto 20cm/7.87inch.
Four wind zone design, can open the area that needs suction at will, and the application is more flexible
Adopt a new four-pipe process, simplify the pipeline, and the suction force is not reduced.
Automatic height measuring system
Automatically detect the suitable printing distance between the nozzle and the printing material. Accurate, efficient, convenient and fast, effectively avoid problems such as ink flying and blurred printing quality caused by incorrect printing height, ensure high-quality print output, effectively support bidirectional high-speed printing.
Auto Thickness sensor
Automatically detects medias and sets correct print height
Easy to operate and user friendly
Manual thickness setting available.
All Lifetime Service
About Jucolor After-sales Service
Jucolor Warranty and service guarrantee:
1.One year warranty, all lifespan service
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free, except for the print head.
3. Convenient online consultation
The technician will keep online, No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it.
The main printing cost of uv printer is ink cost, 1 liter ink can print 50-65 sqm.
For example, printing an A3 size picture with CMYK+W+V 3 layers, the ink cost is about $0.36, and the A3 size painting for sale online up to $35, the wholesale pricing for as little as $3.
The CJ-UV9012pro uv printer can print about 18 pcs per hour, please think about how profit you can get every hour?
