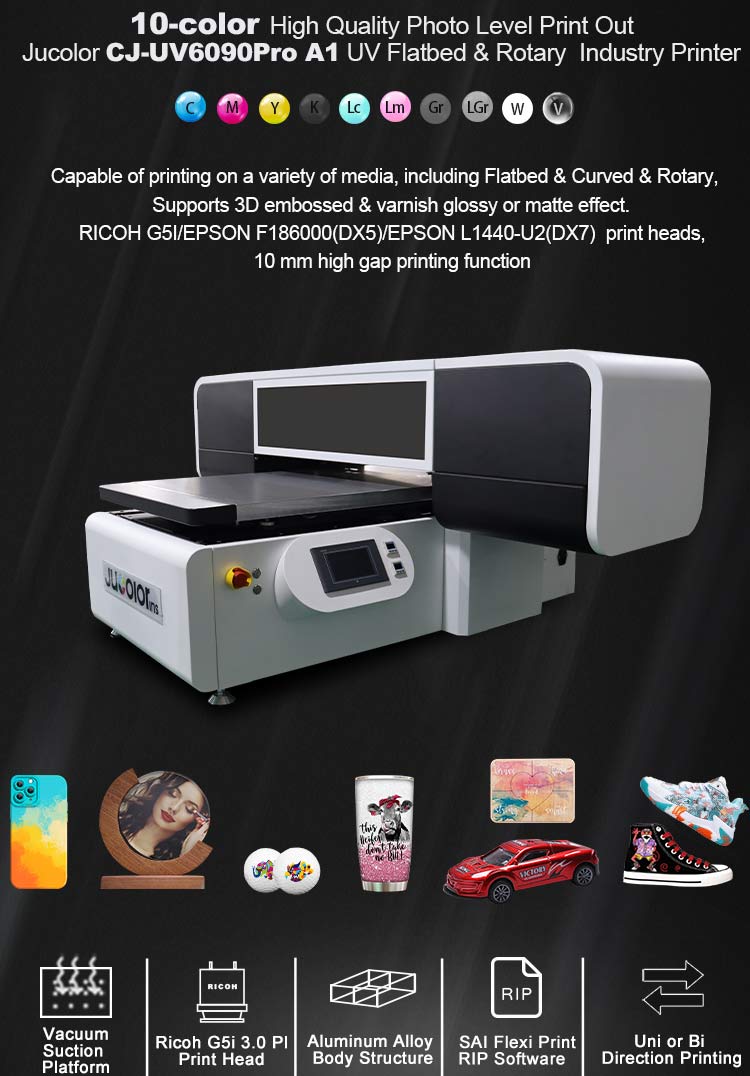

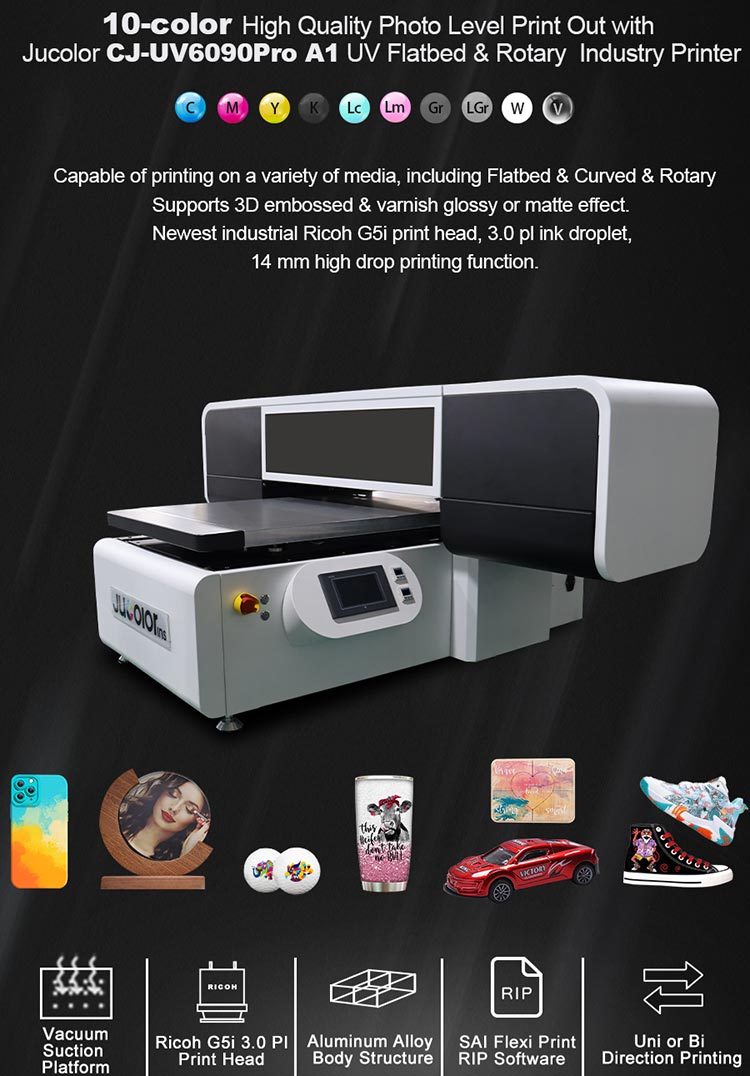

A1 10-color industry UV Printer Jucolor 6090Pro Rich & Bright High Quality Printing

Short Description:

CJ-UV6090Pro-Ⅳ A1 size industry uv printer is fourth generation of Jucolor 6090Pro series. adopt more stable industrial-grade inkjet system, can avoid 50% of system failures,more stable,

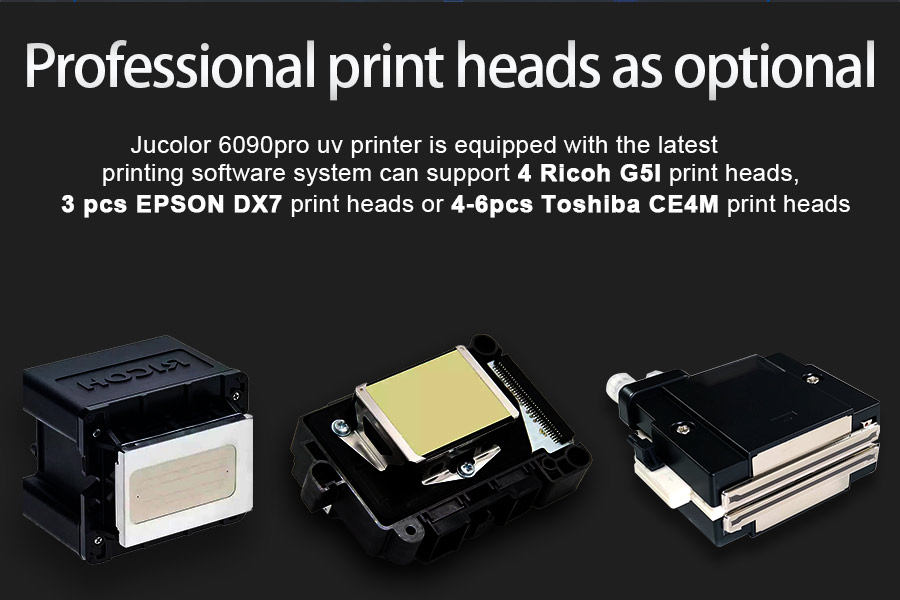

Adopt industrial-grade piezoelectric 3200 nozzles print heads, printing speed increased by 35-45%, more stable printing and less maintenance than RICOH G5I heads
Compatible with White,CMYK,LC, LM, Grey, Red, Varnish,10-colors uv led ink, effectively improve printing quality and printing accuracy, photo-level printing quality
61*91cm/2*3′ print size, 20cm/7.8” print height, 8/10mm max high drop printing, able to print on uneven & irregular materials. like toys, glasses cases, surfboards, shoes, helmets, toys, electrical panels, cabinets, hairpins, accessories, bottles, cups, etc.


  • Printer Model: CJ-UV6090Pro-Ⅳ
  • Print Size: 61*91cm/2*3', 20cm/7.87'' print height
  • high gap printing : 8/10 mm max high gap prinitng distance
  • Print Heads: Industry Piezoelectric-Variable Sized Droplet print heads
  • Ink Colors: 10-color, White+CMYK,LC,LM,Grey, Red,+Varnish
  • Print Quality: Photo-level print-out
  • Drop Volume Size : 3.8 PL
  • Printer Structure: Double Negative pressure ink supply system
  • RIP software: Cast aluminum alloy one-piece structure
  • Workable Medias: Bottles, Balls, Phone case, Pen, Puzzle,Tumbler, Button,PVC, Ceramic tile, Glass, Plastic, Leather, rubber, sign, Candle, Metal, Wood, Porcelain, ABS, Acrylic, Aluminum, Mugs,Marble, Granite, Toys, Glasses case, Surfboard, Shoes, Helmets, Electrical panels, Cabinets, Hairpins, Accessories, Cups, etc
  • Product Detail

    微信图片_20230918165432
    uv print

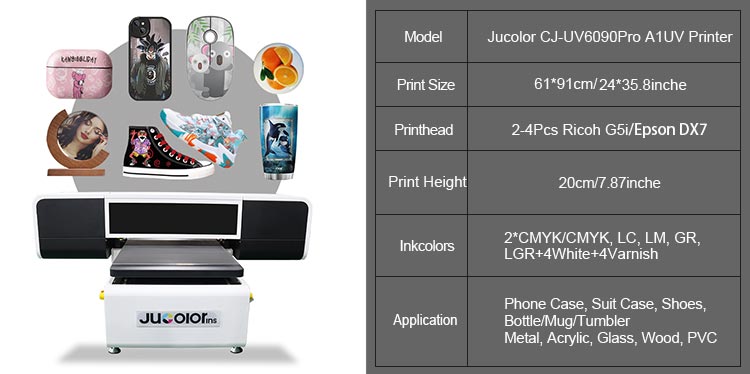

    Machine Model
    CJ-UV6090Pro-IV
    Print Head
     Piezoelectric-Variable Sized Droplet print heads
    Max Print Size
    61*91cm/24*35.8 inches
    Max Print Height
    20 cm/ 7.87 inches
    Print Gap
    8/10mm
    Drop Volume Size
    1.5PL(DX5),3.8drop(HD),4.5PL(L1440-U2)
    Print Resolution

    720*900DPI, 720*1200DPI

    720*1800DPI 720*2400DPI

    Print speed 720*900DPI-8m²/H, 720*1200DPI-4.78m²/H720*1800DPI-2.68m²/H, 720*2400DPI-1.28m²/H
    Ink
    UV Led Curing ink
    Ink Colors
    White+CMYK,LC,LM,Grey,Red+Varnish/Primer
    RIP Software
    SAI flexi print 19
    Print Quality
    Photo-level print-out
    Voltage
    AC220/110±10,50-60HZ
    Bed Movement Ball Screw+Double Guide Rail
    Workable medias
     toys, glasses cases, surfboards, trolley cases, shoes, helmets, toys, cabinets, hairpins, accessories, electrical panels,bottles, cups, etc.
    Service Environment
    25-35℃ 35*65%Rh
    Power Consumption
    750W/ Hour
    Machine Size
    170*146*975cm,305KG
    Packing Size
    181*146*99cm,409KG
