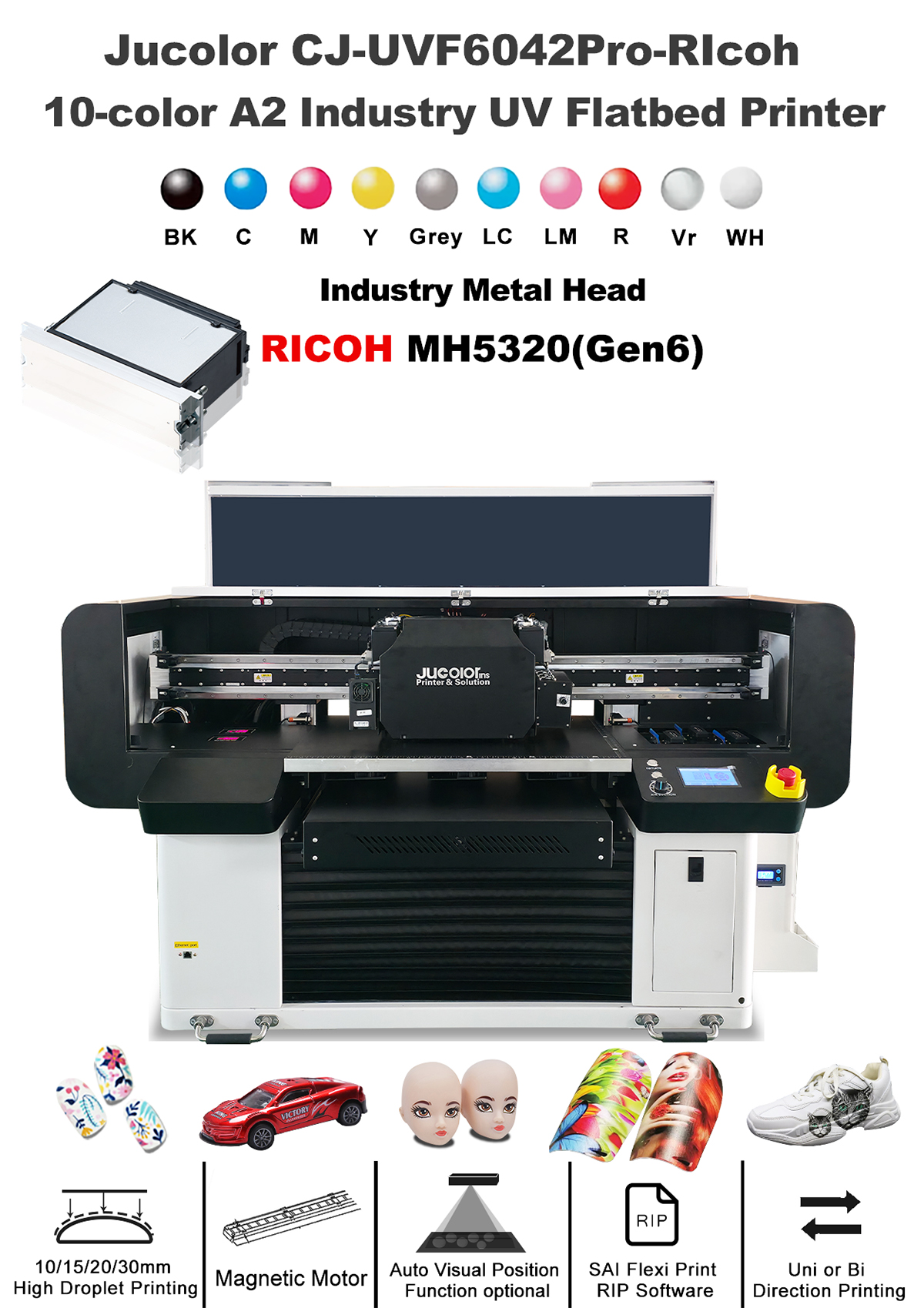

Jucolor CJ-UVF6042Pro-RIcoh A2 size Industry High Droplet/throw UV Flatbed Printer
Jucolor 6042Pro-RIcoh is an industry UV-LED flatbed inkjet printer equipped with RICOH printing engine, which consists of 3 RICOH GEN6 (MH5320) heads, 12 printing channels
10-Color ink, White,CMYK, LC,LM, Grey,Red, Varnish to expand color gamut for better color reproduction.
Thanks to SAI Flexiprint RIP software, 10-Color inks and the Variable Droplet Size printing technology, Jucolor 6042Pro can print out fine details, smooth gradients, and crisp small-sized text, HD printing
High droplet/high throw printing technology has greatly expanded customer's business application areas. can print not only on flat materials, but also on uneven materials.
1200DPI three-in-one vision positioning system.optional
|
Jucolor CJ-UVF6042Pro-RIcoh A2 size 10-Color Industry High Droplet/throw UV-LED Flatbed Printer |
|||
| Model |
CJ-UVF6042Pro-RIcoh |
Ink type |
UV Led curing ink |
| Print head |
RICOH MH5320 Industry metal head |
Ink color |
W+CMYK,LC,LM, Grey, Red+V |
| Print size |
63*43cm/ 24.8*16.9'' |
Print height |
25.6cm/10 inches |
| Print Heads |
3 pcs RICOH GEN6 metal heads |
Cartridge Capacity |
500 ML each color, lack of ink alarm,White Ink Stirring |
| Ink supply system |
Negative ink supply system |
Print head Moisturizing |
available |
| White ink circulation |
White ink circulation ink ink tube and second ink cartridge, |
Consumption |
15ml/sqm |
| Printing medias |
Metal, Suitcase, Acrylic, Ball, Toy, PVC, TPU, Canvas, Glass, Acrylic, Wood, Metal, PVC,Plastic,Ceramic,Leather, PP, PE, PTFE… etc |
||
| Resolution |
720*600DPI, 720*900DPI,720*1200DPI |
||
| Power Supply |
50/60Hz, 110V/220V±20，750W |
Working temperature |
16℃-30℃（62℉-86℉） |
| RIP software |
RIP Print/SAI flexi print 24 Jucolor |
Working humidity |
40%-60% |
| Printer size |
155*90*76cm, 185KG |
Packing size |
165*100*90cm , 255KG |
* RICOH GEN6 industry metal inkjet heads
* 10-color, white, CMYK, LC, LM, grey, red varnish
* Photo-level printing output
* High droplet/throw printing up to 5/10/15/20/30 mm
* 61*43cm/ 24" *16.9" max print size, 25.6cm/10" max print height
* Optional 1200DPI Three In One AI auto visual positioning system
* 2.5/3D embossed printing, varnish glossy & matte printing
* Variable droplet technology minimizes graininess
* SAI Flexi print 2024 JuColor edition
* High-speed print, bidirectional printing available
* High stability, low maintenance, open design, easy maintenance
* Magnetic linear motor, higher precision, faster speed, lower noise
* Dual negative pressure ink supply system,more stable, continuous ink supply
* White ink circulation, effectively avoid ink precipitation
* Ink constant temperature heating system, effectively ensure ink fluency
* Auto cleaning and moisturizing unit
* Auto ink wipe system, no need manual ink wiping
* High-sensitivity anti-collision & light-avoiding system
* High-precision laser height measurement, more accurate
* High-strength aluminum alloy body structure with mold opening, high structural strength and no deformation
* Dual silent ball screw guides
* LED Touch screen operation
* 65*45cm anti-scratch Teflon coated vacuum adsorption platform with built-in auxiliary positioning pins

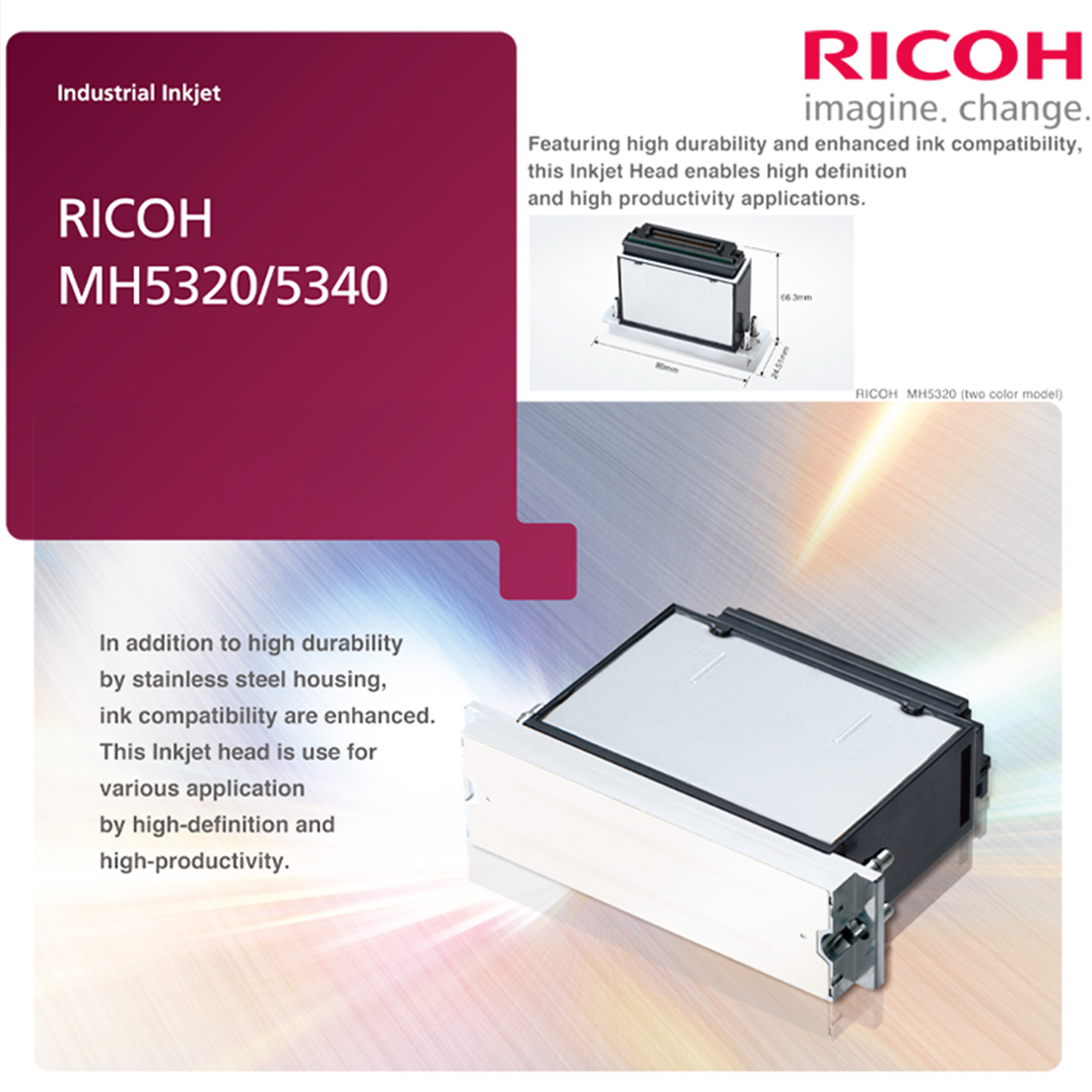

Japan Ricoh Gen6 (MH5320) metal industry inkjet head,
Ricoh head adopts all-steel structure, with strong corrosion resistance, ultra-long working life of up to 4-6 years, high stability, greatly reducing maintenance time and cost,
variable drop technology produces excellent print output quality,
54.1mm effective print width allows the printer to obtain a much faster print speed than EPSON heads
High droplet printing up to: 10/15/20mm, special ink up to 30mm
1,280 nozzles, print width 5.41 cm
Made of stainless steel, with excellent durability and extended service life.
Built-in heater
Variable drop capacity 5PL, 10PL, 15PL

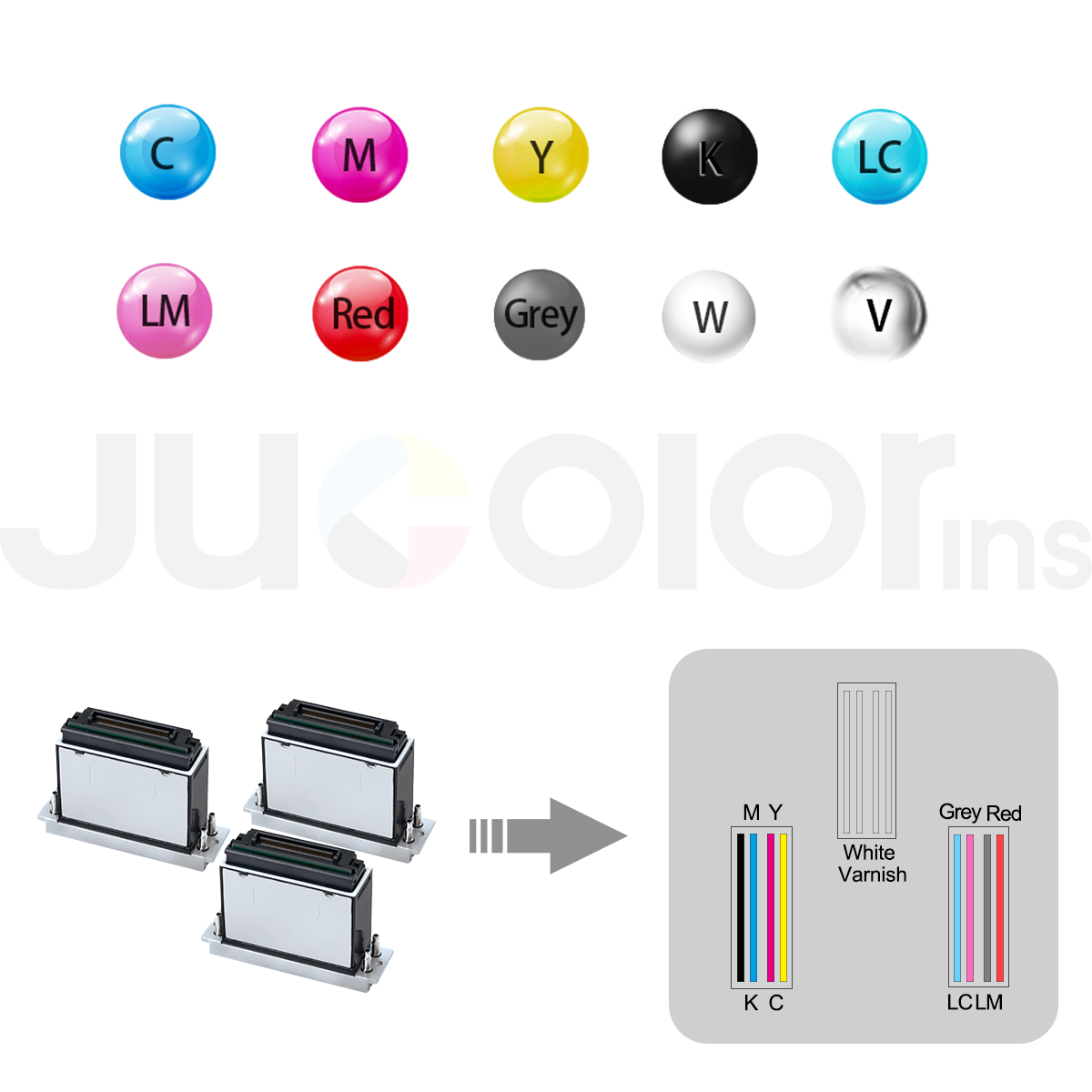

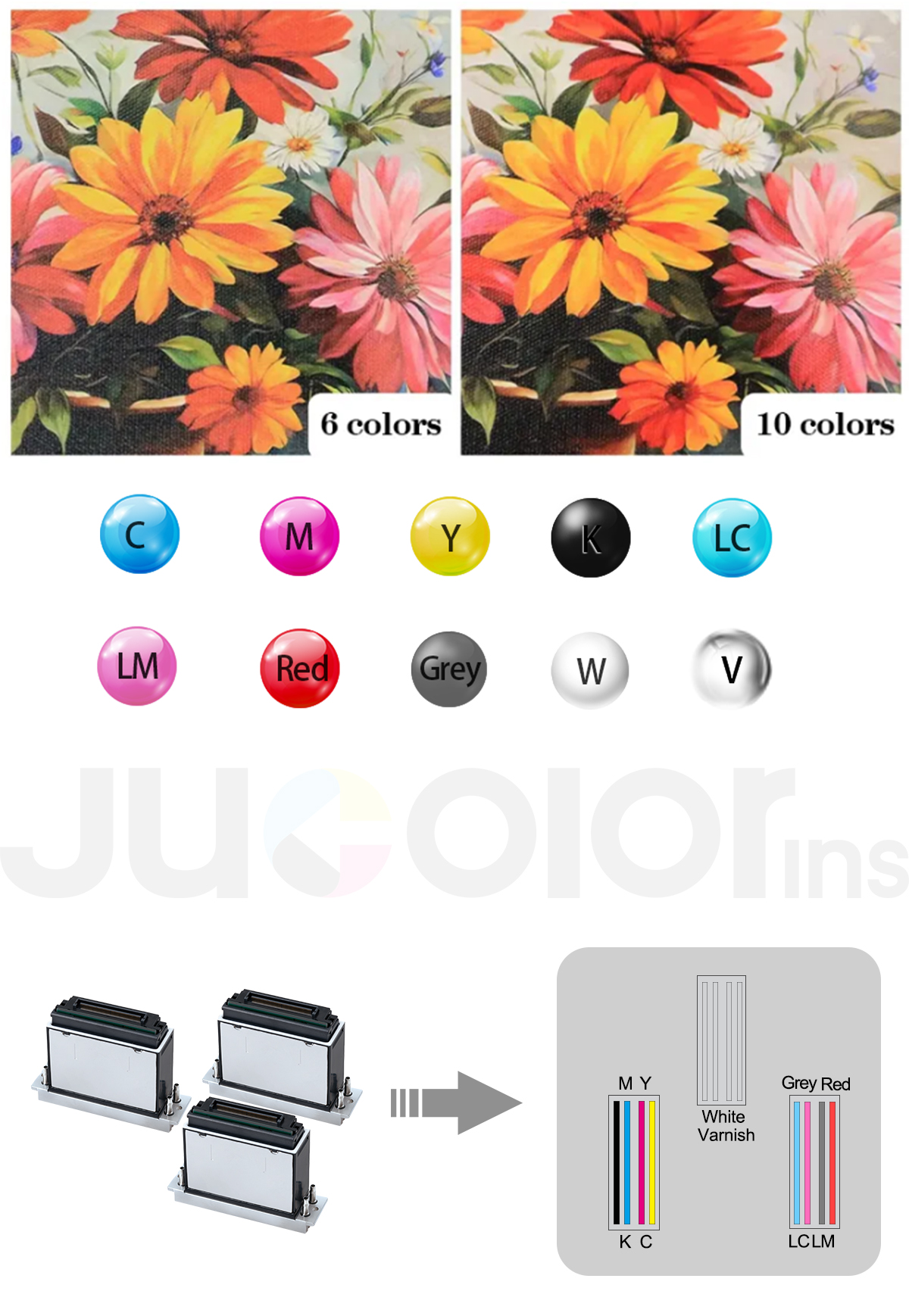

10-color ink for photo-level printouts
White + KCMY, LC, LM, gray, red, varnish, 10-color environmentally friendly UV-curable inks, providing bright, colorful, good touch, low graininess, and smooth layered printing effects
High Droplet/High throw Printing function(5/10/15/20/30mm)
Equipped with Ricoh Gen6 industrial metal printhead, can print with droplet heights of 5/10/15/20mm distance. With special inks, the droplet height can reach to 30mm.
For 5mm and 10mm distance high droplet printing, we use 10pl, 10pl, and 15pl inks to achieve a smooth, gradient output.
For 15, 20, and 30mm high droplet printing, because of these distance cant use small and middle ink drop voume size to print, only use large drops the 15pl, only use 15pl, 15pl, and 15pl inks to achieve the high droplet printing and ensuring the printed image is formed without ink smudging; however, this cant provide the smooth, gradient.
The high-drop printing capability of the Ricoh industrial-grade metal printhead allows this industrial UV printer to print on uneven and irregular materials, such as toys, suitcases, eyeglass cases, surfboards, rolling suitcases, shoes, helmets, electrical panels, cabinets, hair clips, accessories, bottles, and cups.
2.5/3D embossed printing solution
Jucolor 6042Pro industry UV printer features 2.5D/3D embossing capabilities, which we've found 2.5/3D effect have wide applications, such as Braille, oil paintings, and signage.
The 6042Pro A2 UV latbed printer with RICOH GEN6 printheads boasts high inkjet frequency and large single printing ink volume, offering superior speed and quality for 3D embossing compared to EPSON printheads.
Varnish gloss and matte printing
Supports white, color and varnish inks printing, outputs good varnish glossy effects, also can prints matte varnish effects.
Printing varnish inks on top of printed medias can also protect the printed image to avoid scratches
UV crystal DTF printing
This Jucolor 6042Pro A2 uv flatbed printer supports UV DTF printing
Print directly on the uv dtf film, then use laminating machine to laminate after printing, then cut and stick to the medias
The working principle of uv dtf printing is to print the picture on the glue, and stick it to the material you want to print. It is flexible and convenient, suitable for label printing of consumables, but also has disadvantages such as non-waterproof, poor adhesion, and non-ultraviolet protection

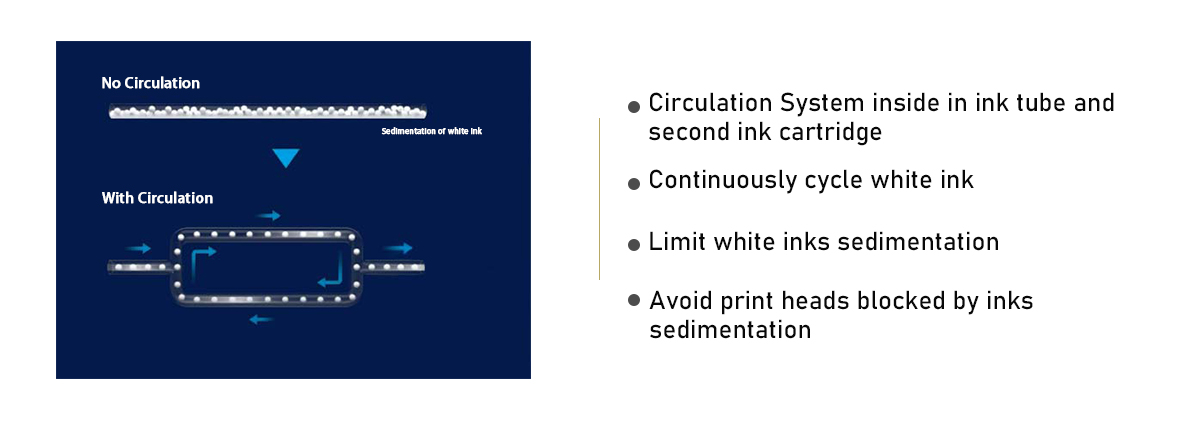

White Ink Circulation & Stirring System We equipped CJ-UVF6042Pro with a negative pressure ink supply system, which includes: primary ink cartridge, ink tube, secondary ink cartridge, and negative pressure generator. We added a stirring system to the primary ink cartridge to continuously stir the ink, and added a circulation system to the ink tube and secondary ink cartridge. The ink can flow in the ink tube and secondary ink cartridge to prevent white ink from settling, avoid the print head being clogged by ink precipitation or white printing being yellowish, and improve the quality of white ink printing.
Negative pressure ink supply system
Negative pressure ink supply system, ink can be directly injected into the print heads, no need to suck print heads, ink supply is more stable, effectively avoid problems such as ink interruption during printing
All-metal secondary ink cartridge
Excellent corrosion resistance, UV ink is a corrosive chemical liquid. Therefore, the corrosion resistance of the secondary ink cartridge is very important, it can effectively extend the service life. Avoid high failure rate and high maintenance rate
Capping station with auto-wiper
Print heads are more expensive, need to protect and keep moisturizer well. So jucolor team develop own auto cap station with wiper for RICOH GEN6 heads on jucolor A2+uv printer, it can clean automatically, wiper print head automatically, keep print head moisturizer. (head storage when in stand by) Very useful to avoid clogging.
Industrial grade electrical box layout
Jucolor CJ-UVF6042Pro-RIcoh A2 industrial UV printer is equipped with a professional printing motherboard and system, with high stability, high-quality output, multi-function printing, high-speed printing, easy maintenance, simple operation and other characteristics.
New industrial-grade circuit wiring process, strong and weak electricity separation to avoid interference, internationally renowned brand electrical accessories, sturdy and durable, each group of lines are marked for easy maintenance and inspection.
Magnetic levitation linear motor
Jucolor6042Pro-RIcoh A2 uv printer adopts magnetic levitation, which has the advantages of fast printing speed, simple structure, precise ink point position, easy maintenance, low printing noise, fast response speed, and long wear-free operation time.
Compared with transmission belt drive, magnetic levitation motor prints 20%-25% faster, greatly meets customer's requirements for printing speed. alleviates noise in working environment, the reliable long life effectively reduces the replacement cost.

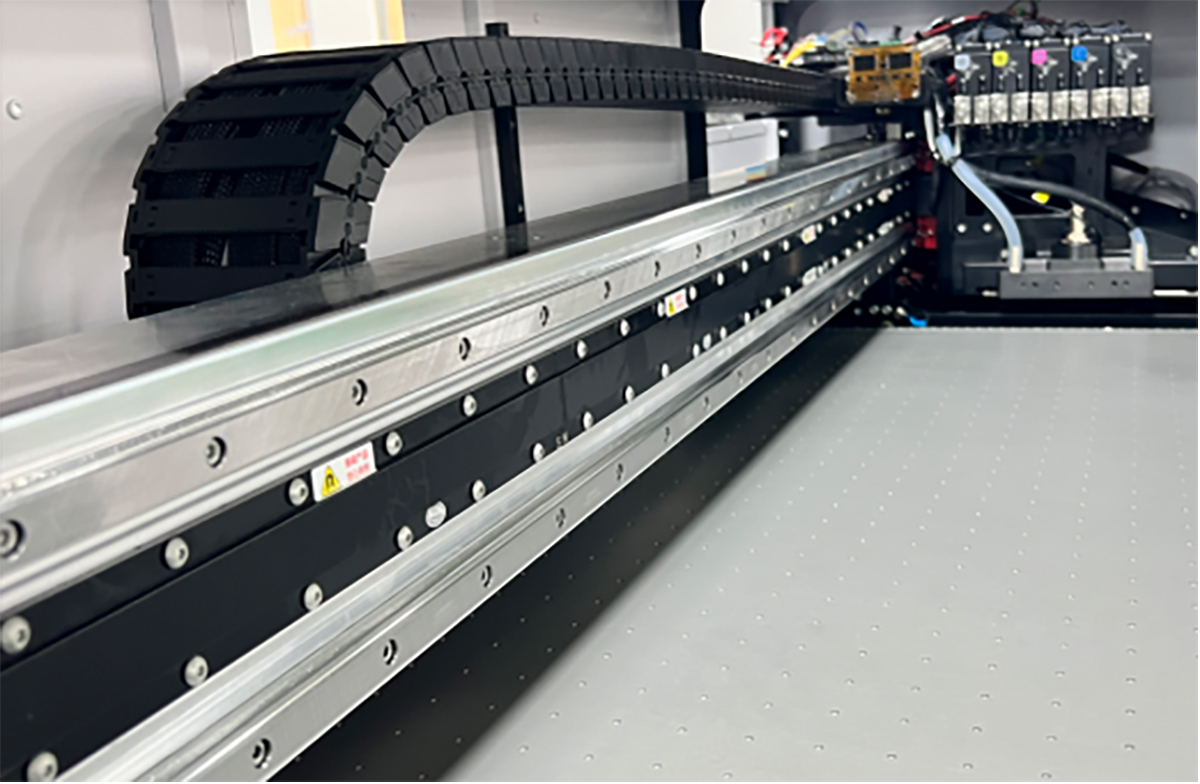

Taiwan Hiwin brand Double Guide Rail
For X-axis, we use Double Taiwan Hiwin's high-strength silent ball screw guide rails. Compared with single guide rails, double guide rails have excellent motion accuracy and will not have any motion deviation or jitter, effectively improving printing accuracy.
Anti-scratch Teflon coated vacuum suction platform with positioning pins
62*43m/ 24’’*16.9’’ inches print size
Anti-scratch, anti-oil, corrosion-resistant,
With adsorption function, it can firmly adsorb and fix the printing material during printing to avoid printing misalignment
Engraved ruler can quickly locate the printing position
With self-contained positioning pins, fast positioning, fixation

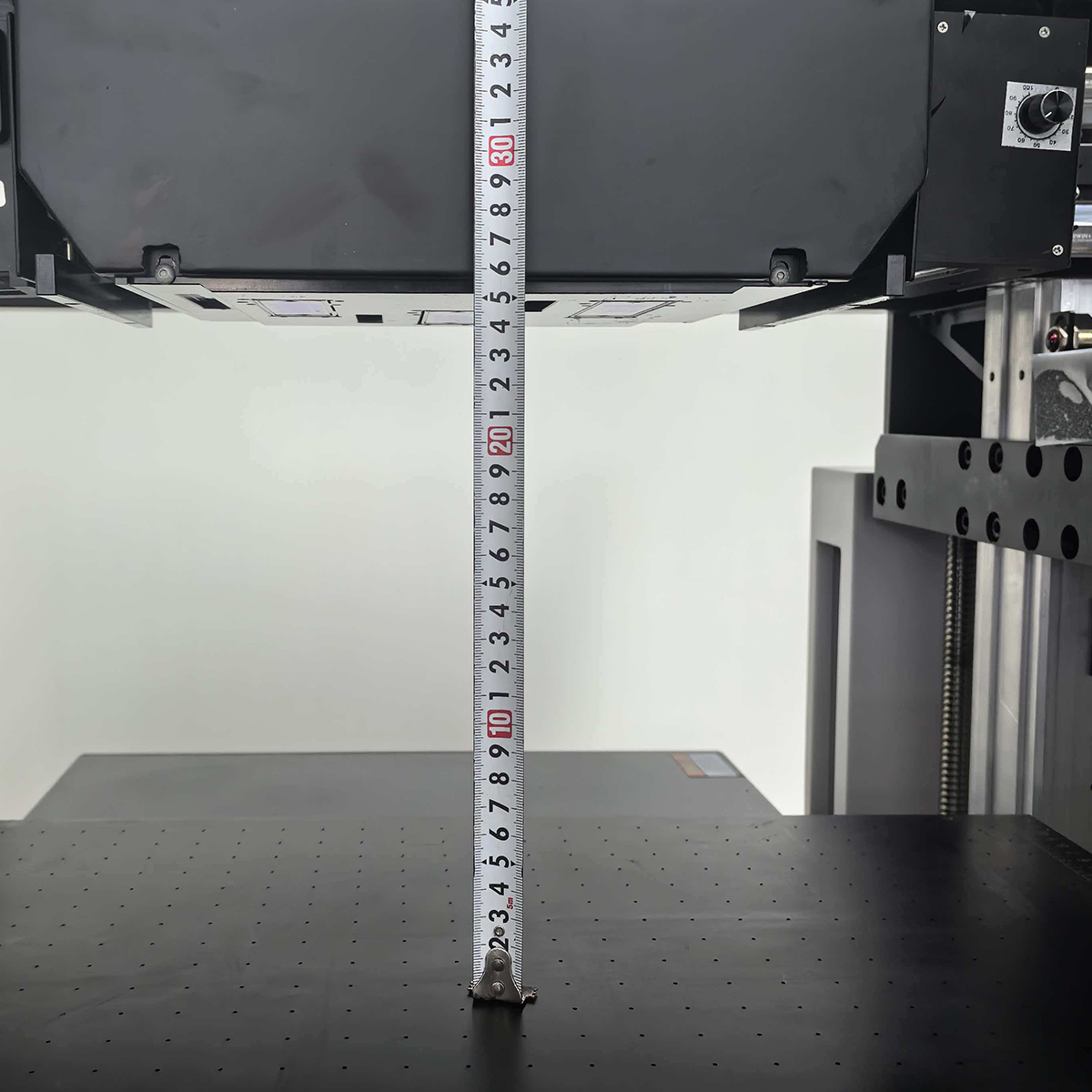

25.6cm/10 inches max print thickness
The maximum printing height can reach 25.6cm/10 inches, effectively meeting customers' daily printing needs.
Jucolor CJ-UVF6042Pro Details
*45*65cm Anti-scratch Teflon coated vacuum suction platform with size mark, Engraved ruler can quickly locate the printing position Anti-scratch, anti-greasy, anti-corrosion, With adsorption function, can firmly adsorb and fix printing material during printing process to avoid printing misalignment
* well-designed touch screen, easily adjust platform, do head cleaning, control printer, control the platform for Backward, Forward, Up, Down, Pause/Stop, Online/Offline and ink cleaning, print head test, let you operate the machine more convent
* Heavy duty stainless steel screw driver Stable operation, long time lifespan, wear-resistant, not easy to damage, can support bi-diection printing
* printer body& frame made by Cast aluminum alloy
*High performance uv led curing lamp, working time exceeds 40,000 hours, two-year warranty
reliability, which effectively ensure printing accuracy and working stability.
* Servo motors have the characteristics of high precision, fast response, high efficiency, and high reliability, which effectively ensure printing accuracy and working stability.
Do you have a camera option? Yes, all Jucolor uv flatbed printers have camera opton, with CCD camera, the uv printer will be more easy to use, easy to position, reduce scrap rate
RICOH GEN6 and EPSON 3200 difference
1. Lifespan:
RICOH gen6 print heads can work more than 4-6 years,
EPSON I3200-U1 print heads can work 8-13 months
compare with EPSON 3200 heads, RICOH GEN6 head no need to replace more often, print head cost also printing cost, so RICOH head is low printing cost.
2. Maintenance time and cost
Because of RICOH GEN6 head is made by metal, so much longer lifespan, no need frequent cleaning, no need for excessive maintenance, compare with EPSON 3200 head, RICOH GEN6 can avoid 80% maintenance time,
customer can use more time to do business, not for maintenance time, so printing cost is cheaper
3. High droplet printing
RICOH GEN6 can print 10/15/20mm highgroplet distance, if use special inks, print height can be 30mm, while EPSON only 5-8mm,
with this function, you can print Uneven
4. Printing speed
beause of 5.41CM print wide, Ricoh Gen6 printing speed 30-45% faster than EPSON 3200 heads
