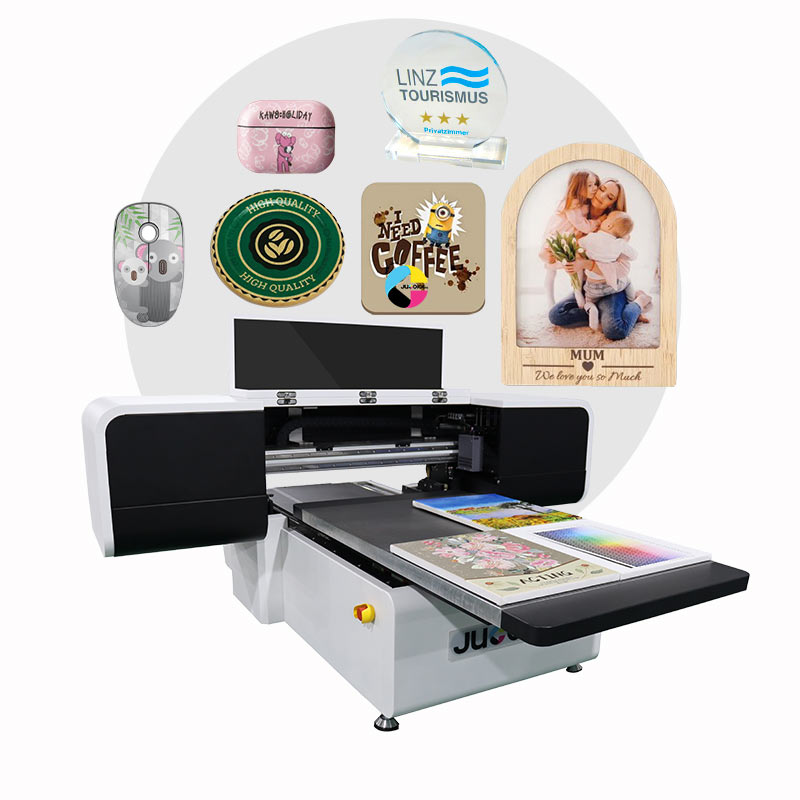

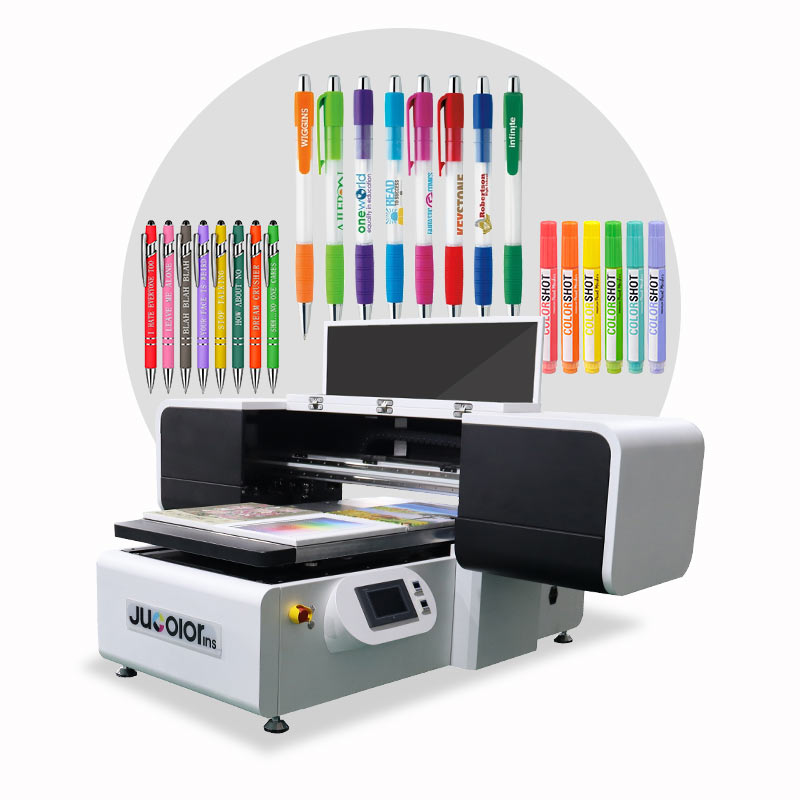

10-color, Photo-level 6090 UV Printer with RICOH /EPSON F186000(DX5)/EPSON L1440-U2(DX7)Print Heads High Quality Printer

Short Description:

CJ-UV6090Pro-Ⅳ A1 size industry uv printer is fourth generation of Jucolor 6090Pro series. adopt more stable industrial-grade inkjet system, can avoid 50% of system failures,more stable,
Adopt industrial-grade piezoelectric 3200 nozzles print heads, printing speed increased by 35-45%, more stable printing and less maintenance than RICOH G5I heads
Compatible with White,CMYK,LC, LM, Grey, Red, Varnish,10-colors uv led ink, effectively improve printing quality and printing accuracy, photo-level printing quality
61*91cm/2*3′ print size, 20cm/7.8” print height, 8/10mm max high drop printing, able to print on uneven & irregular materials. like toys, glasses cases, surfboards, shoes, helmets, toys, electrical panels, cabinets, hairpins, accessories, bottles, cups, etc.

  • Print Model: CJ-UV6090Pro-Ⅳ
  • Print Size: 61*91cm/2*3', 20cm/7.87'' print height
  • Print Heads: Industry Piezoelectric-Variable Sized Droplet print heads
  • Ink Colors: 10-color, White+CMYK,LC,LM,Grey, Red,+Varnish
  • Drop Volume Size : 3.8 PL
  • Print Quality: Photo-level print-out
  • Resolution: 720*2400 DPI max resolution
  • Rip Software: Sai Photoprint software
  • high gap printing distance: 8/10 mm max high gap prinitng distance
  • Printer Structure: Cast aluminum alloy one-piece structure
  • Workable Medias: Bottles, Balls, Phone case, Pen, Puzzle,Tumbler, Button,PVC, Ceramic tile, Glass, Plastic, Leather, rubber, sign, Candle, Metal, Wood, Porcelain, ABS, Acrylic, Aluminum, Mugs,Marble, Granite, Toys, Glasses case, Surfboard, Shoes, Helmets, Electrical panels, Cabinets, Hairpins, Accessories, Cups, etc
  • Product Detail

    uv flatbed printer

    We (Gold Label Manufacturer)provide life-long after-sales service

    Various models of printers with different configurations, contact us for commercial printing solutions

    6090 uv printer
    10 colors uv printer 6090

    10-color White,CMYK,LC,LM, Grey, Red, Varnish, uv led ink, effectively improve printing quality and printing accuracy, photo-level printing quality

    best uv printer
    uv machine

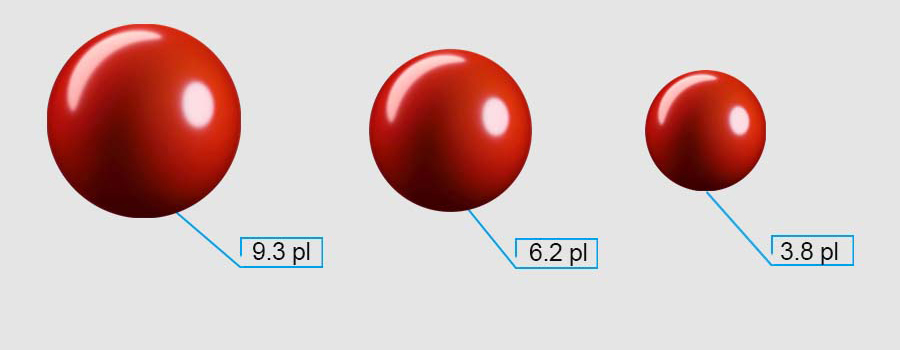

    3.8, 6.2, 9.3 pl

    Variable dots printing technology highly increase printing quality

    Machine Model
    Print Head
    Piezoelectric-Variable Sized Droplet print heads
    Max Print Size
    61*91cm/24*35.8 inche
    Max Print Height
    20 cm/ 7.87 inche
    Print Resolution
    720*900DPI, 720*1200DPI720*1800DPI 720*2400DPI
    Print Speed
    720*900DPI-8m²/H, 720*1200DPI-4.78m²/H720*1800DPI-2.68m²/H, 720*2400DPI-1.28m²/H
    High Drop Distance
    Ink Colors
    RIP Software
    Photo prinrt
    Printing Tech
    Micro Piezo Technology
    Type of Ink
    UV LED curing ink
    Service Environment
    20-30℃ 35*65%Rh
    Power Consumption
    750W/ Hour
    Machine Size
    145*170*77cm,220 kg
    Packing Size
    155x186x98cm 260 KG
    uv print
    uv printing machine
    uv printers mainboard

    CJ-UV6090Pro- IV model adopt Professional stable industrial-grade inkjet system, which can avoid 90% of system failures

    Ensure printer work stable, High-quality printout, less maintenance


    White,CMYK,LC,LM, Grey,Red, Varnish,10-colors uv inks one pass printing,

    3D embossed effect printing

    varnish glossy or matte effect printing

    Photo-level uv printing quality

    high drop printing

    Auto medias height checking, Automatic anti-collision

    Automatic cleaning,

    white ink automatic stirring

    3200 uv print head

    High stability grade multifunctional printing system and motherboard, and industry Piezoelectric-Variable Sized Droplet print heads

    3200 nozzles, 3.8 drop volume, 3.38cm print wide, 2400dpi max resolution

    flatbed printers
    inkjet printer
    digital printer
    uv printer high gap printing
    printer for sale
    6090 printer
    uv printer feedback
    factory uv printer
