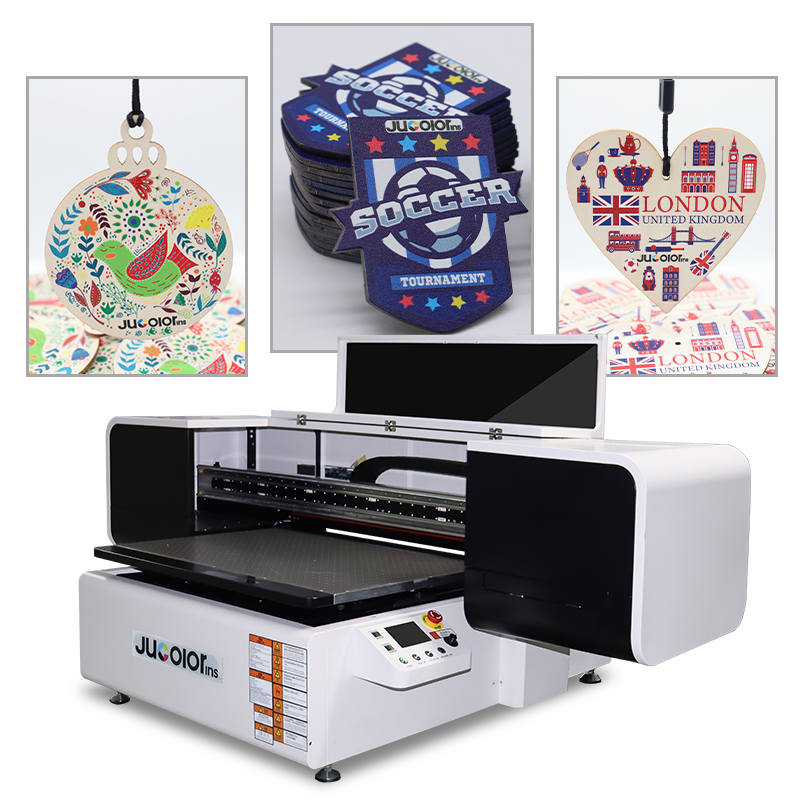

Jucolor CJ-UVF9060Pro 10-color A1 industry uv led flatbed printer with RICOH MH5340 print heads
Choose Jucolor and enjoy high-quality printing services

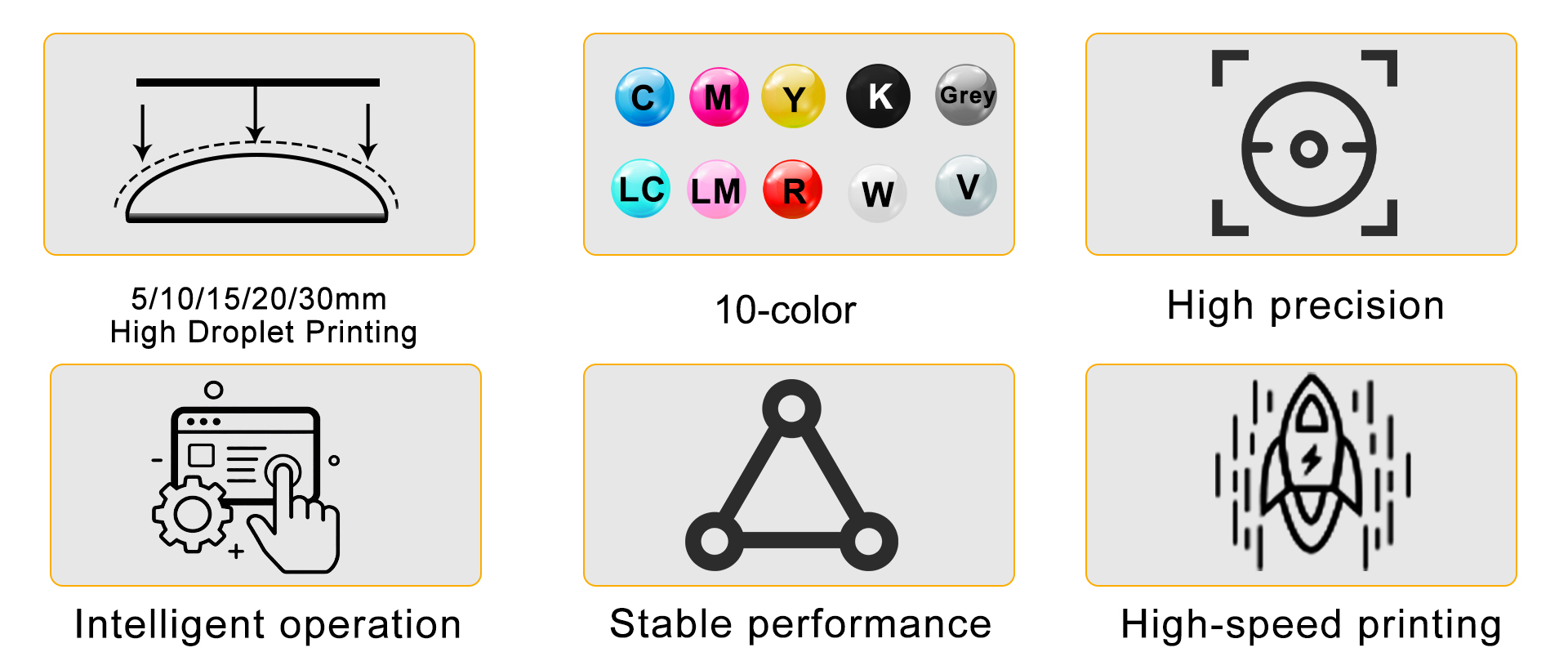

Product Highlight
A variety of efficient UV printing functions are essential for improving your business profits

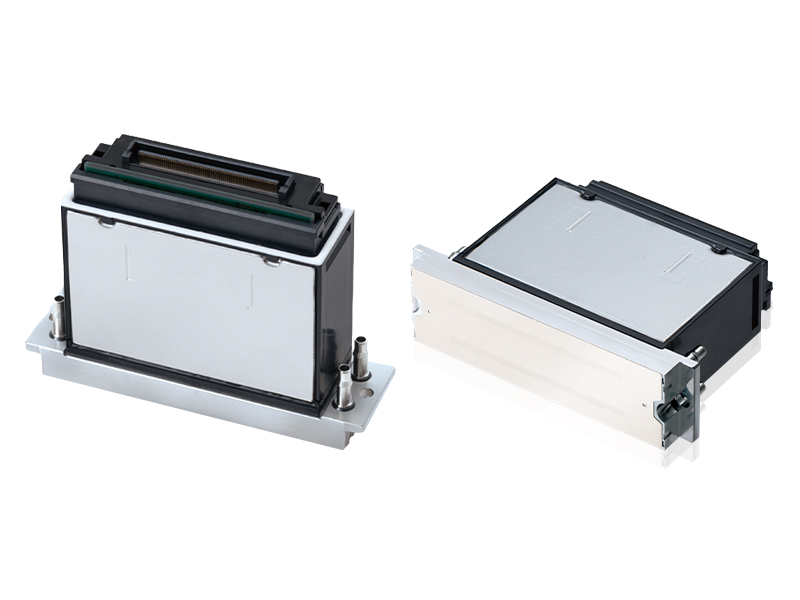

RICOH GEN6 Industrial Grade Stainless Steel Printhead

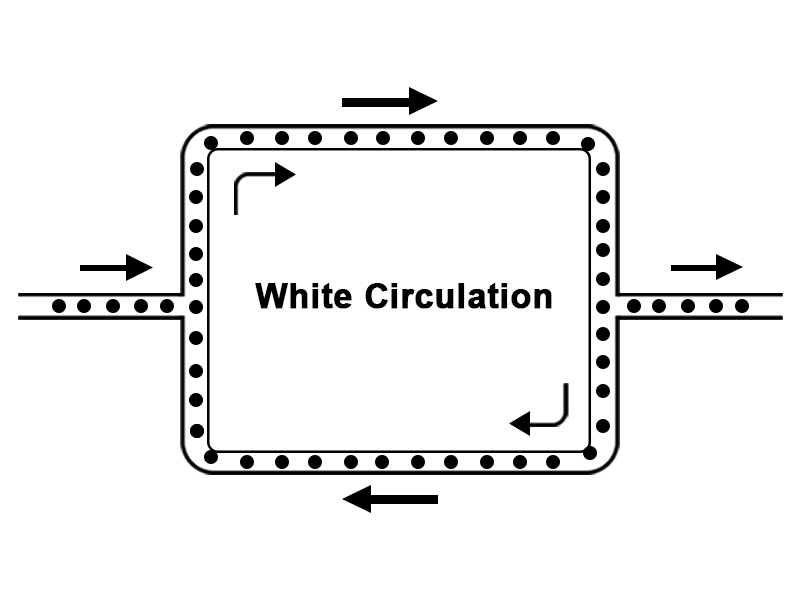

Jucolor white ink circulation device (prevents white ink sedimentation)
Magnetic suspension motor, higher precision, faster speed, lower noise
Vacuum adsorption platform & positioning pin
Optional AI camera automatic visual positioning system
USA brand SAI Fleix print 25 Latest version Jucolor Edition RIP software

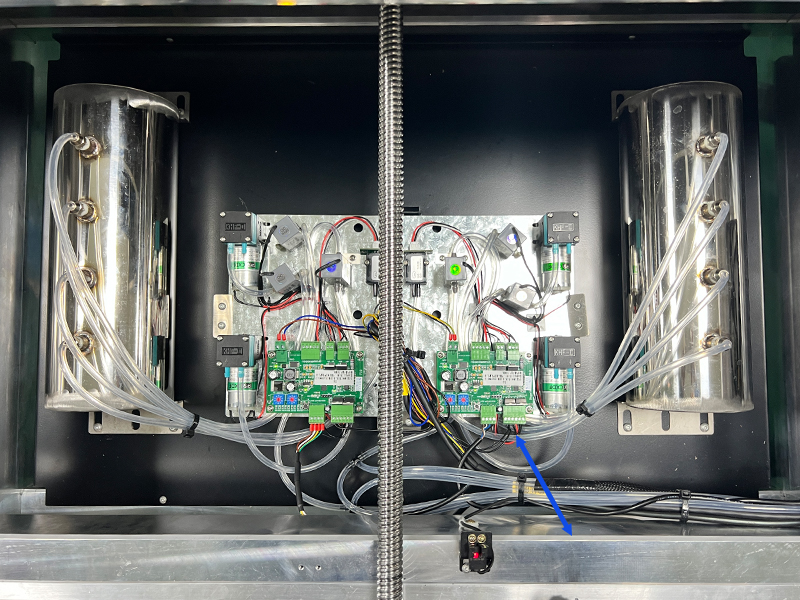

Dual-channel negative pressure ink supply system
High-precision laser height measurement, accurate and efficient.

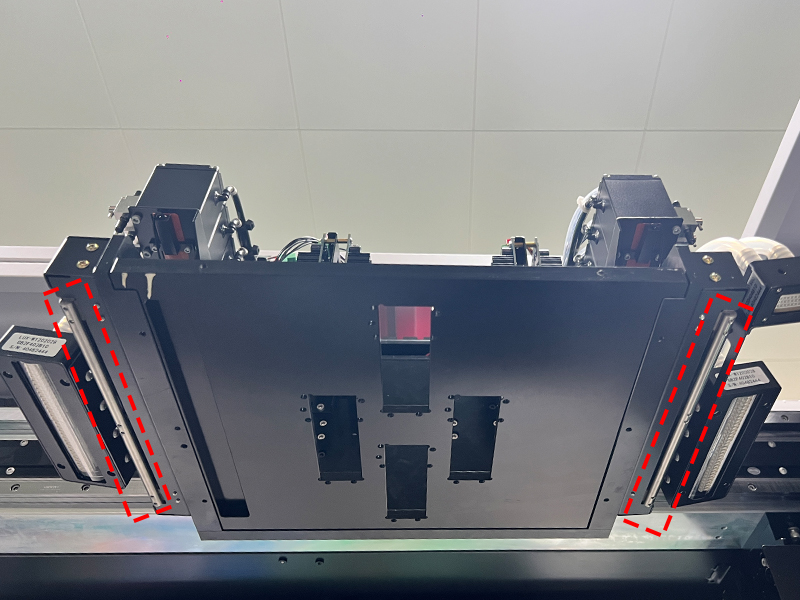

Intelligent Touch & Anti-collision System
Advantages of Jucolor UV printers

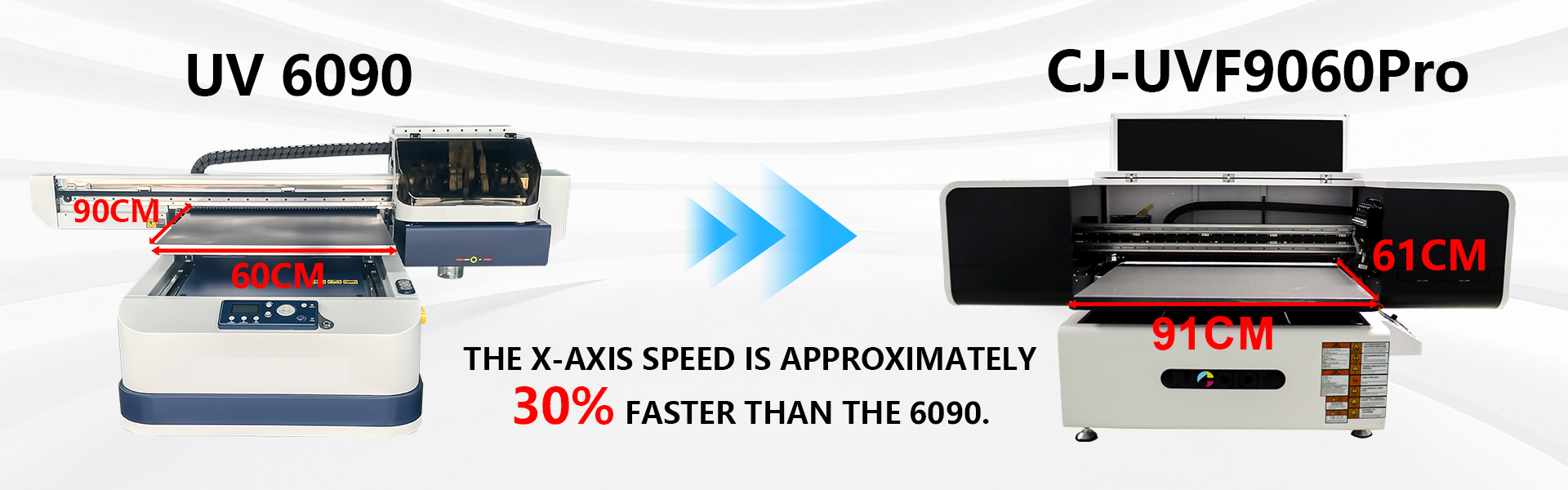

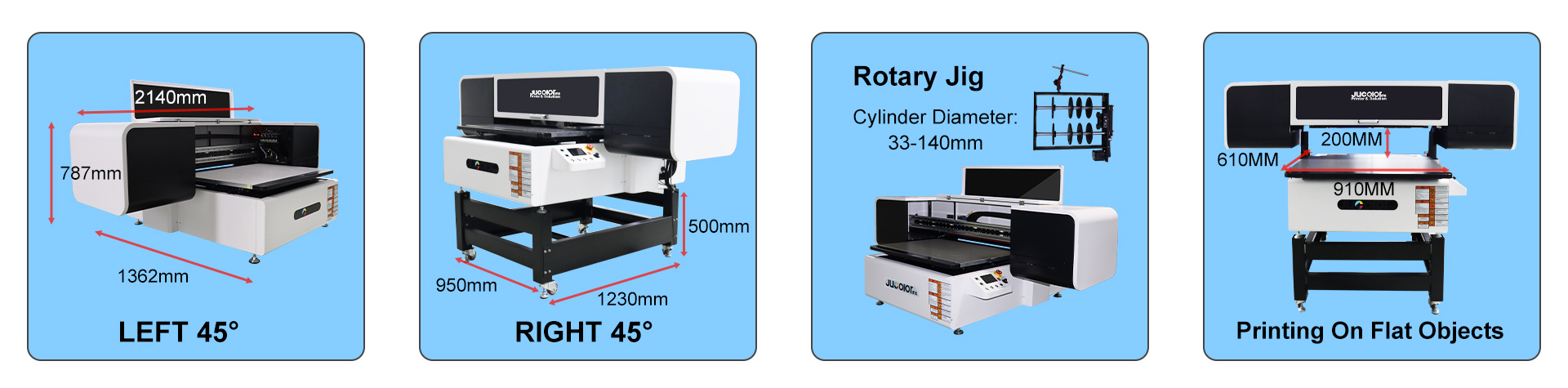

1) Jucolor 9060uvpro-Ricoh print size advantages:
2) Jucolor 9060uvpro-Ricoh output performance advantages:
-

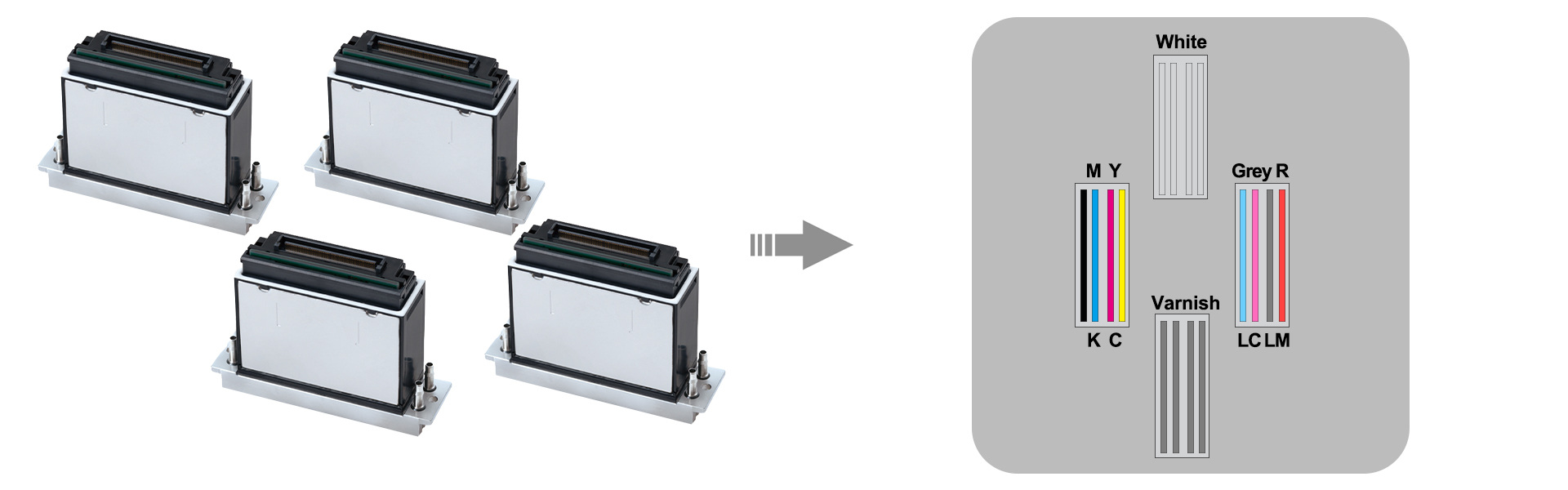

10-Color Brilliant Printing: Features a high-end 10-color ink system (W+CMYK+LC+LM+GY+R+V). It significantly expands the color gamut, delivering more vibrant reds and natural skin tones compared to standard 6-color printers.
-
Sharp Small Text & Fine Details: Powered by industrial Ricoh printheads and advanced variable ink drop technology, the machine ensures razor-sharp clarity for tiny fonts and incredibly delicate gradients without visible grain.
-
Stunning 3D Embossed Texture: Supports multi-layer white ink printing to create high-definition 3D relief effects. The embossed textures are tactile and realistic, adding premium value to gifts and artworks.
-
Glossy Varnish Finish: The dedicated varnish channel provides a professional glossy or matte finish. It not only enhances visual brightness and color saturation but also adds a protective layer for better durability.
-
Eco-Friendly UV Ink: Uses high-quality, eco-friendly UV curing inks that are VOC-free and odorless. It meets environmental standards while ensuring strong adhesion and scratch resistance on various materials.
3) Jucolor 9060uvpro-Ricoh's stable quality advantage:

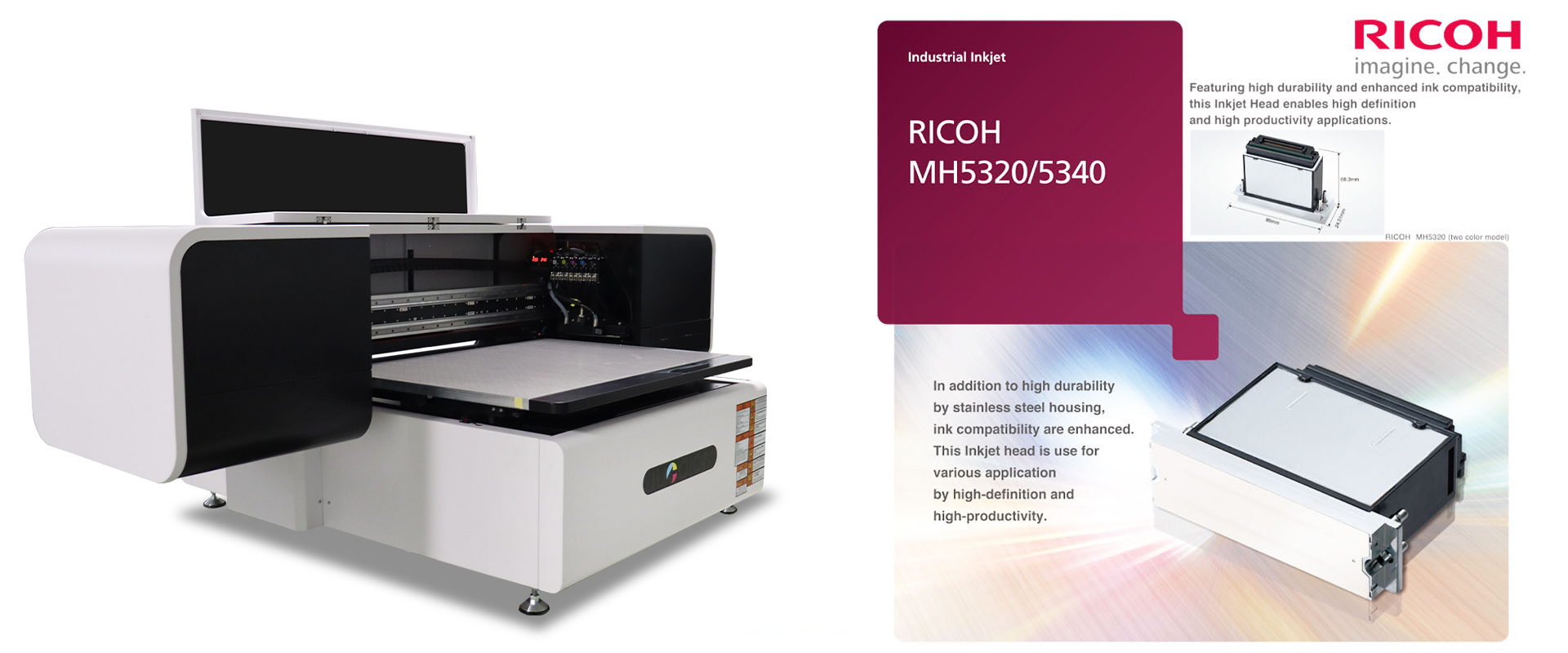

Ricoh industrial-grade metal printhead Gen6 (MH5320/MH5340)
Adopting Japan Ricoh Gen6 (MH5320/MH5340) metal industry inkjet head,
Ricoh head adopts all-steel structure, with strong corrosion resistance, ultra-long working life of up to 4-6 years, high stability, greatly reducing maintenance time and cost,
variable drop technology produces excellent print output quality,
54.1mm effective print width allows the printer to obtain a much faster print speed than EPSON heads
High droplet printing up to: 10/15/20mm, special ink up to 30mm
1,280 nozzles, print width 5.41 cm
Made of stainless steel, with excellent durability and extended service life.
Built-in heater
Variable drop capacity 5PL, 10PL, 15PL.

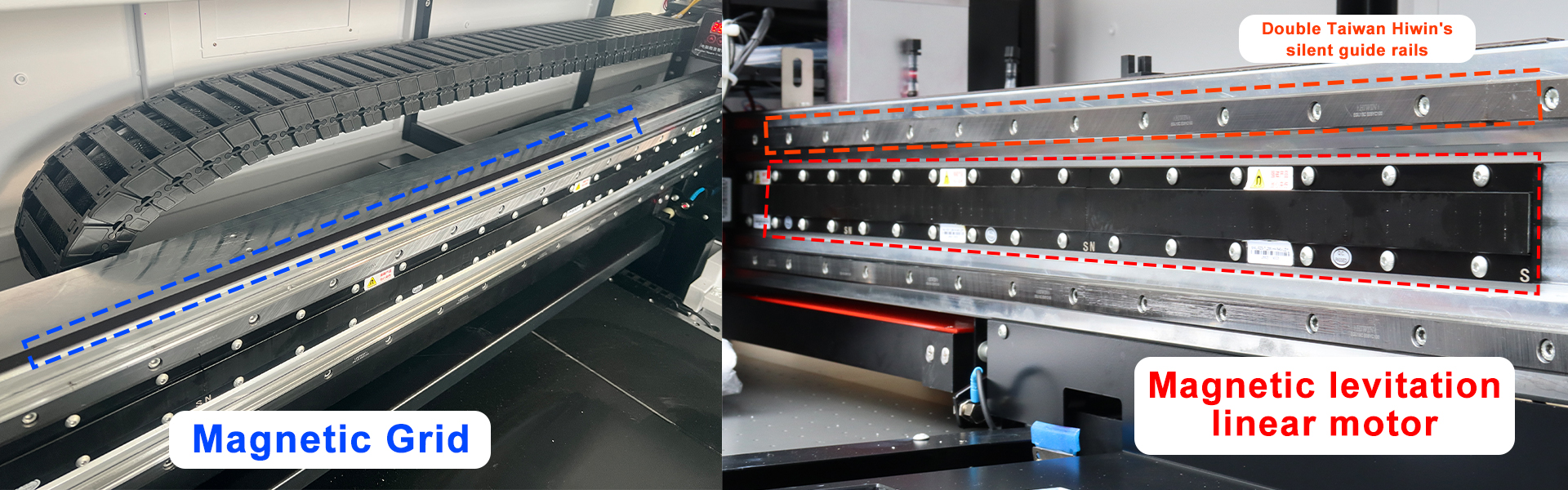

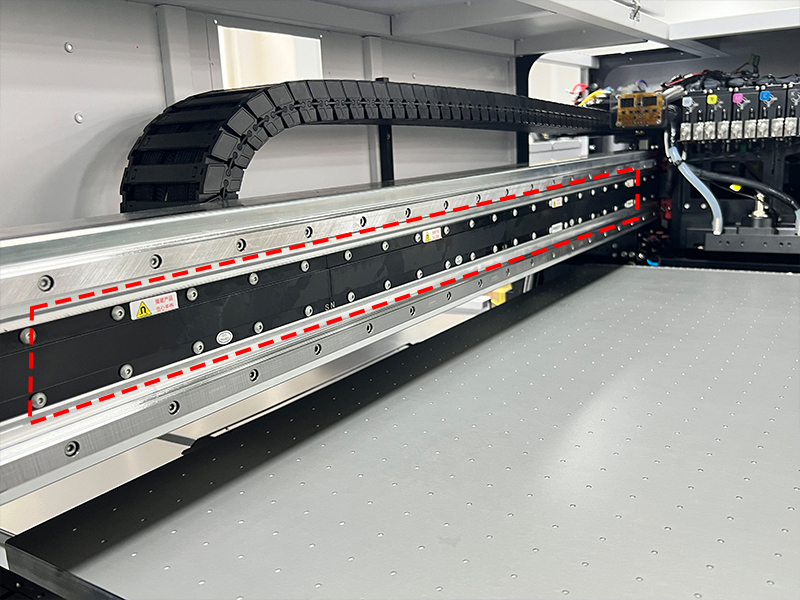

High-precision magnetic levitation linear motor
Jucolor 9060Pro-RIcoh A1uv printer adopts magnetic levitation, which has the advantages of fast printing speed, simple structure, precise ink point position, easy maintenance, low printing noise, fast response speed, and long wear-free operation time.
Compared with transmission belt drive, magnetic levitation motor prints 20%-25% faster, greatly meets customer's requirements for printing speed. alleviates noise in working environment, the reliable long life effectively reduces the replacement cost.
Double Taiwan Hiwin's high-strength silent ball screw guide rails
For X-axis, we use Double Taiwan Hiwin's high-strength silent ball screw guide rails. Compared with single guide rails, double guide rails have excellent motion accuracy and will not have any motion deviation or jitter, effectively improving printing accuracy.
Industrial magnetic encoder
JuColor CJ-UVF9060Pro-RIcoh A1 industrial UV printer uses high-precision (1um) magnetic encoder. Compared with plastic transparent encoder, magnetic encoder is better durability, stability, longer service life, and no need to be replaced more often.
Plastic transparent encoder is easy to cause print head jitter and software cant read print head position. These caused by plastic transparent encoder's poor dirt resistance, easy misalignment, and poor stability. Magnetic encoder can effectively avoid these problems and enhance the working stability of the printer, no need to frequently troubleshoot printer failures.

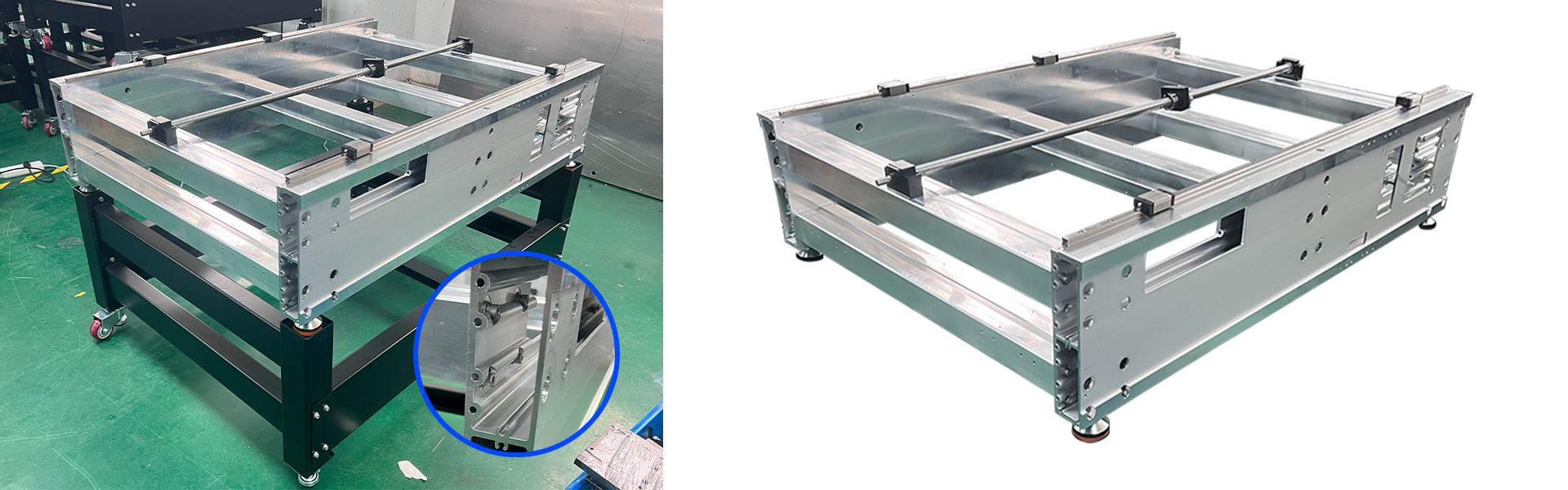

High-strength aluminum alloy body structure
Adopting high-strength aluminum alloy structure, light weight, no deformation, and uses large milling machine to perform 4-sided precision milling to ensure the X-axis print heads moves without height difference, the Y-axis platform moves without vibration, and the Z-axis rise and fall without error, high-quality printing output and extending the life of the entire printer.
4) Jucolor 9060uvpro-Ricoh's advanced functional advantages:

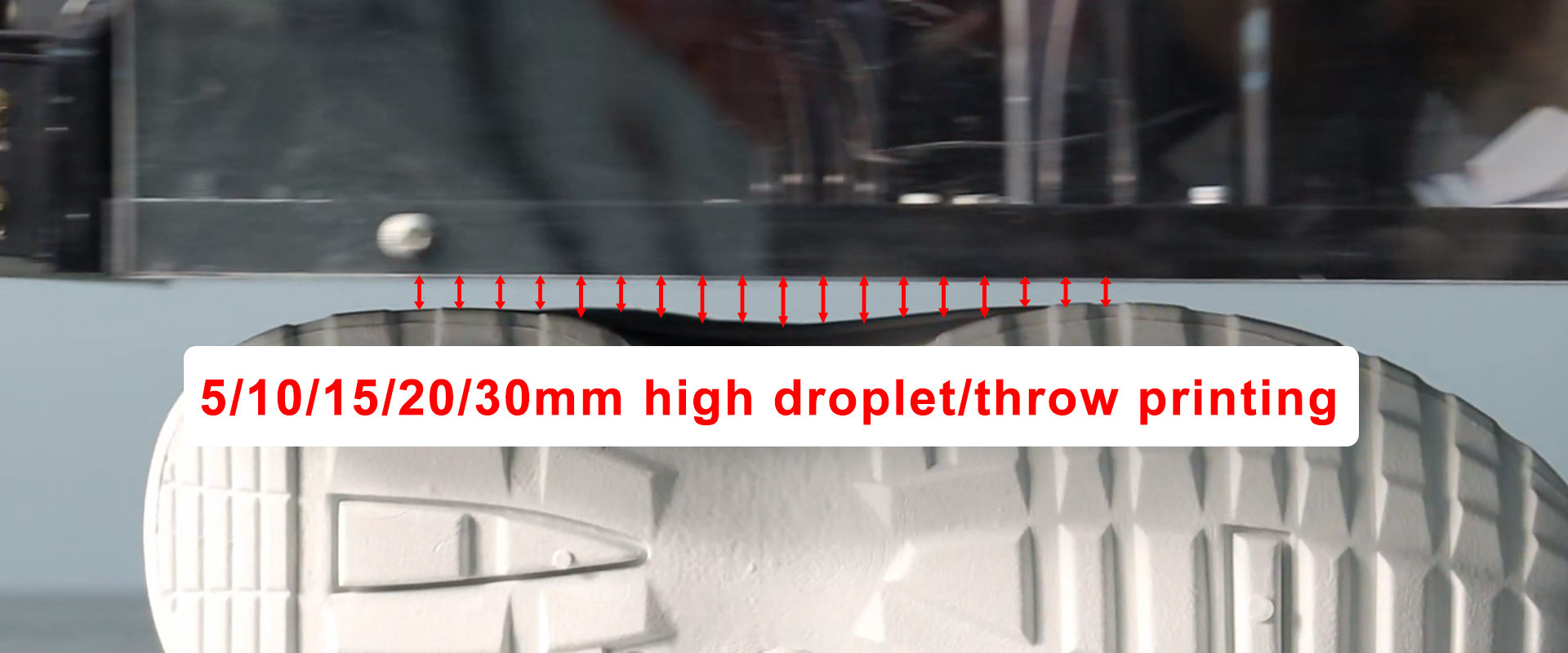

a. Jucolor High drop printing function:
10/15/20/30mm high drop printing
Ricoh Gen6 industrial metal heads, can print 10/15/20mm drop distance. If use special inks, the drop height can reach to 30mm
The high droplet printing of Ricoh industrial metal head enables this industrial UV printer to print on uneven and irregular materials.
Such as toys, suitcases, glasses cases, surfboards, trolley cases, shoes, helmets, toys, electrical panels, cabinets, hairpins, accessories, bottles, cups, etc.

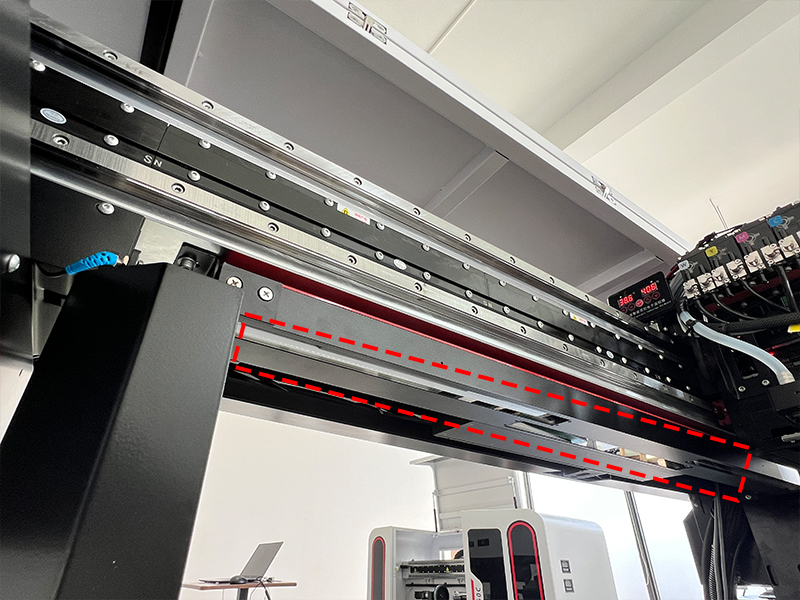

b. Visual positioning printing function:

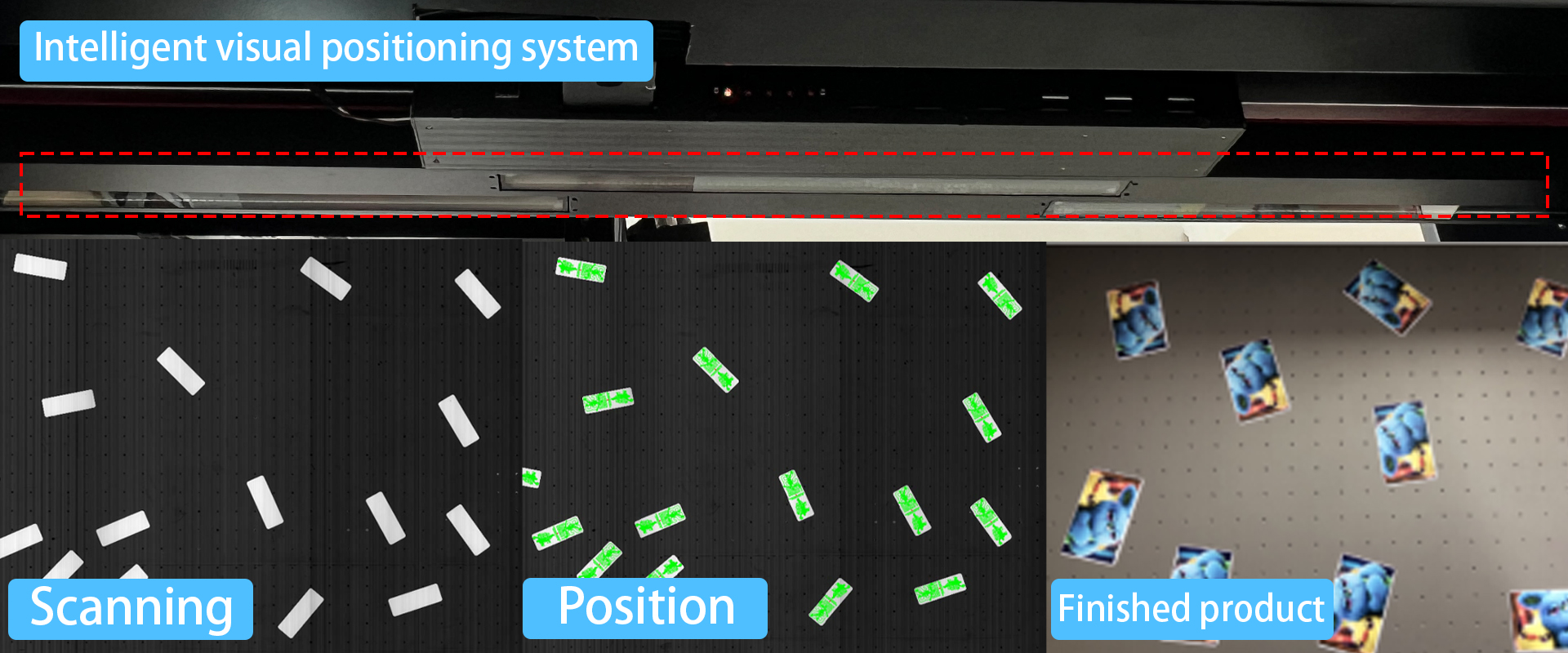

Intelligent visual positioning system: (optional)
90cm long scanner under printer beam can scan entire 90*60cm size at one time, taking less than 90 seconds, scanner accuracy is 600dpi,
Automatically and quickly identify and positioning, software automatically matches printed picture and material, accuracy error is controlled within 0.1mm, ensure accurate printing, delicate and realistic pattern effects,
Reduce product scrap caused by position problems. No need jigs/fixture positioning or complex calculations.
Effectively improve printing efficiency and reduce labor cost.

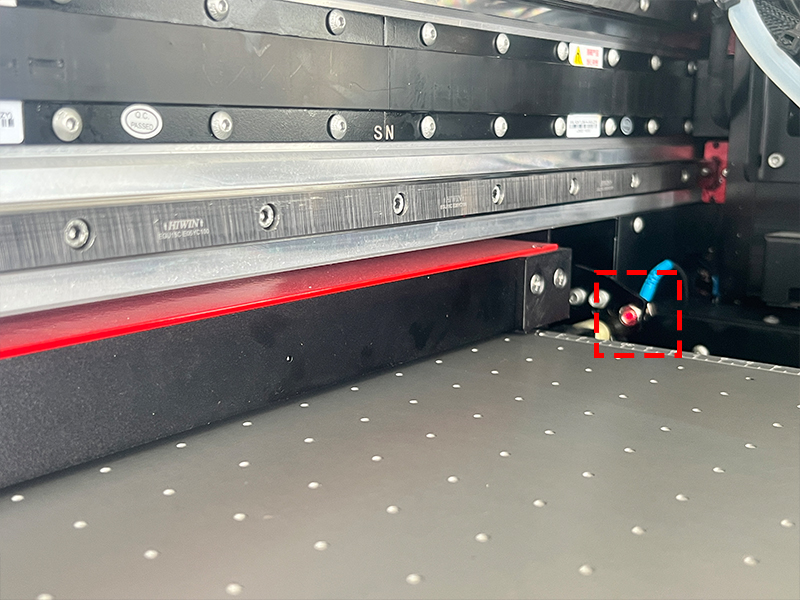

c. Automatic height measurement and collision avoidance function:

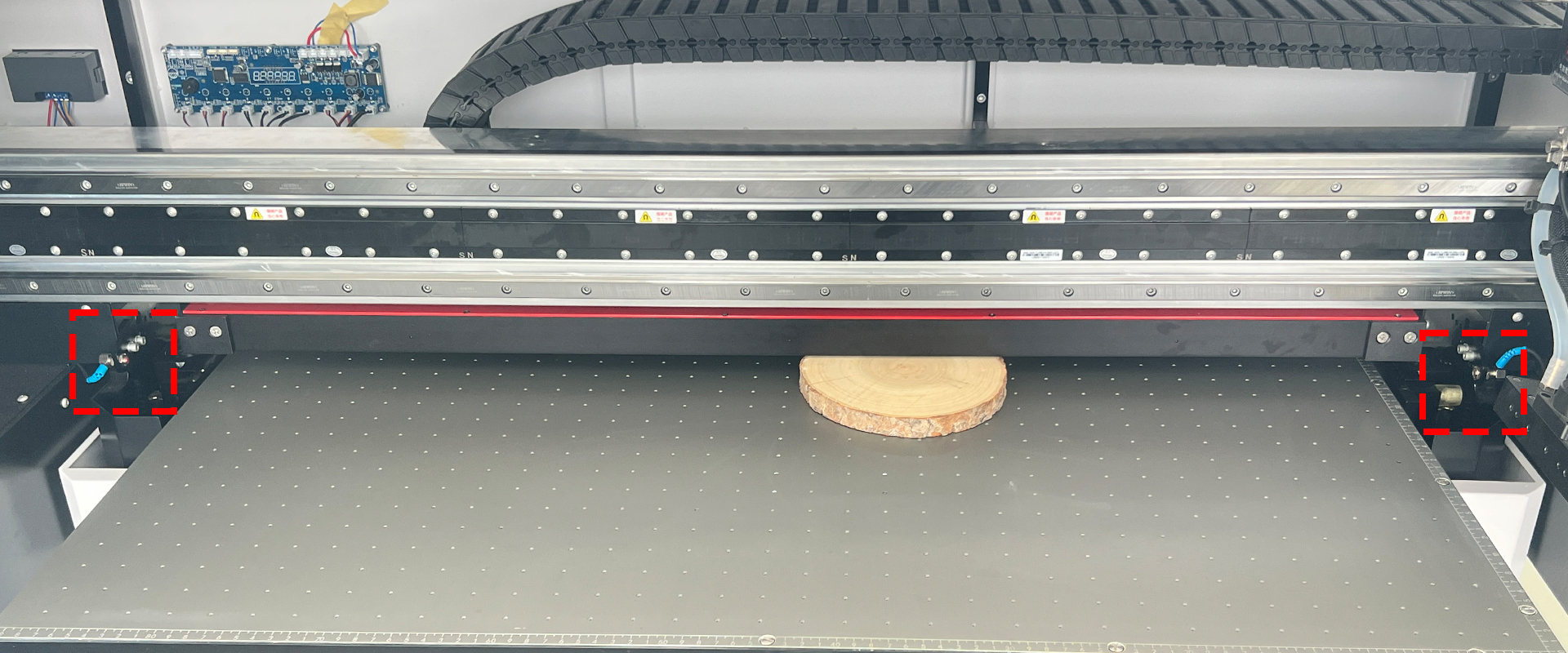

Laser height measure and anti-collision system
Jucolor uses laser sensor to detect height of printing material, effectively ensure that distance between print head material is within a safe range, avoid touch or collision between print head and material, causing damage to print head.
Supports bidirectional printing, no need customers to re calibrate bidirectional value because of changes in different medias.
Jucolor An easy-to-use printer that can print anything
1) Direct print all flatbed product:

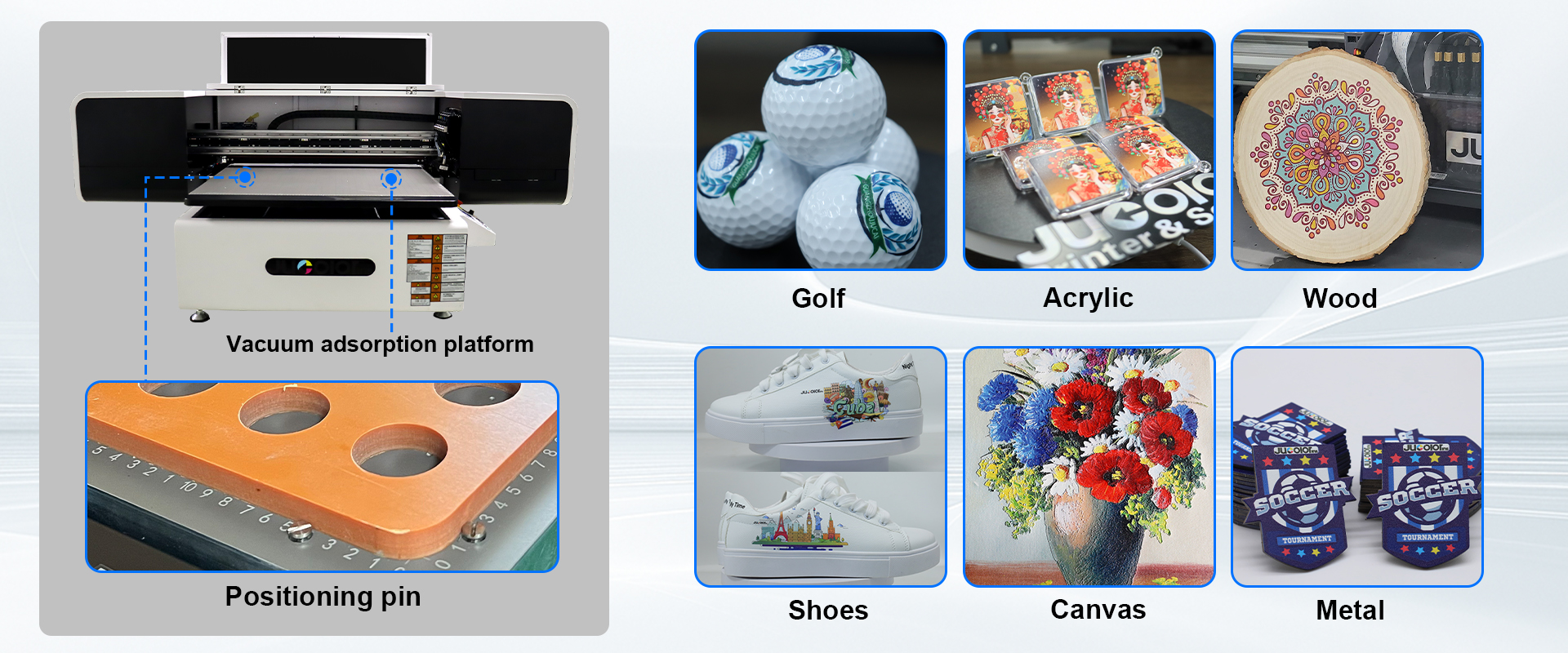

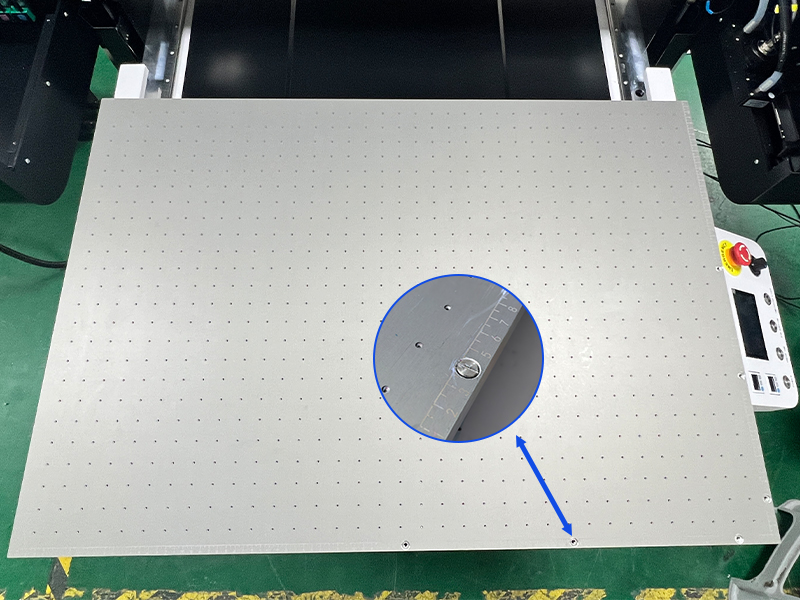

91*61cm anti-scratch Teflon coated vacuum adsorption platform with built-in auxiliary positioning pins
The CJ-9060PRO-RICOH is equipped with a 91*61cm vacuum adsorption platform and auxiliary positioning pins, which greatly simplifies the printing process for most flat materials and effectively improves the convenience and efficiency of the overall printing process.
Furthermore, it can print on virtually any medium, including rigid and flexible media such as metal, roly-poly toys, USB drives, puzzles, Rubik's Cubes, building blocks, golf balls, lunch boxes, MDF, toys, bottles, Braille, tubes, pens, phone cases, glass, plastic, wood, leather, rubber, lighters, PVC, acrylic, aluminum, ceramic tiles, marble, and more.

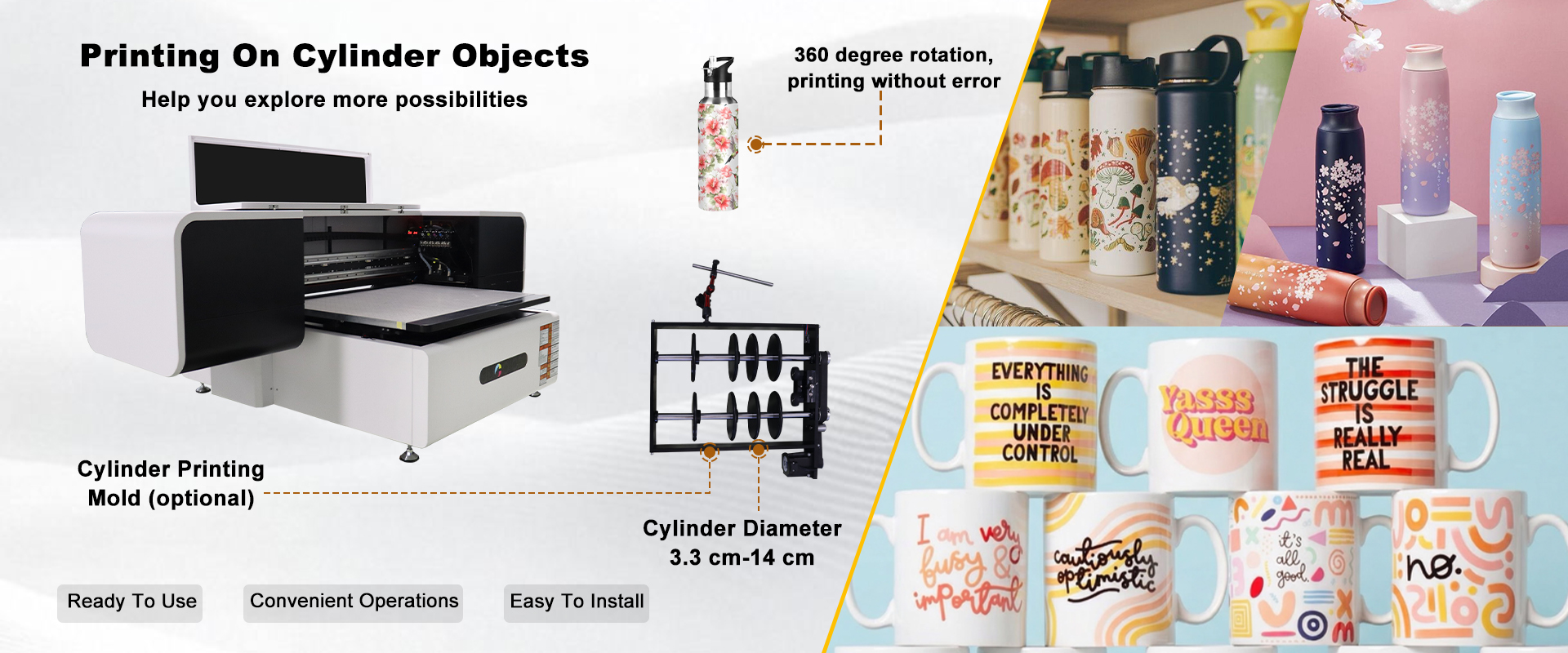

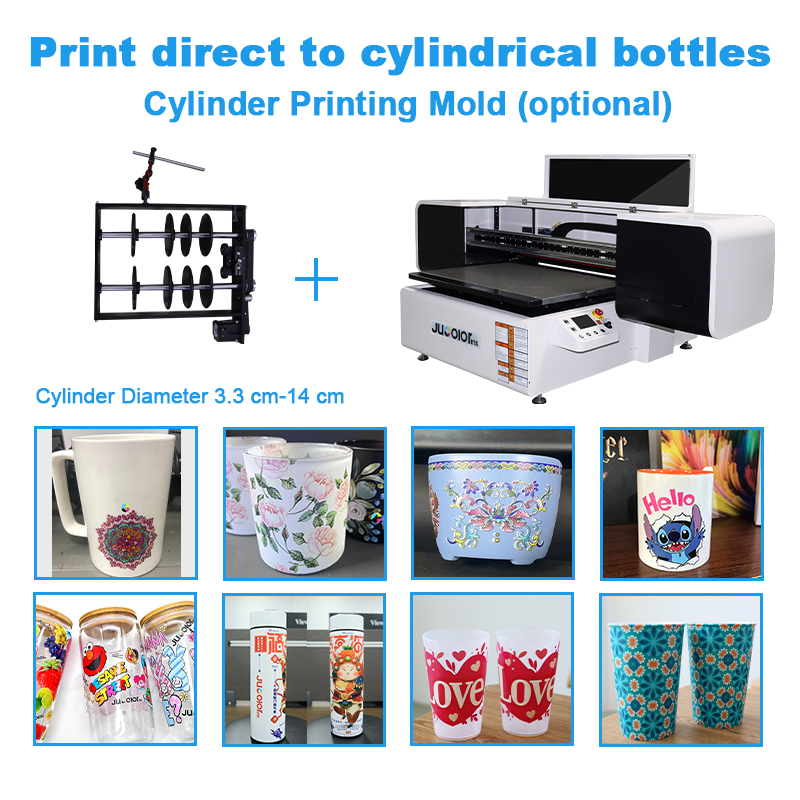

2) Print directly on cylindrical bottle:
Flat-rotary dual-purpose UV printer
This Jucolor 9060Pro model A1 size uv printer can not only print flat objects but also cylindrical materials. It is equipped with a rotating fixture independently developed by Jucolor group, can directly print various cups, such as straight-through cups, cone cups, thermos cups, electronic cigarettes, candles, and mugs with handles.

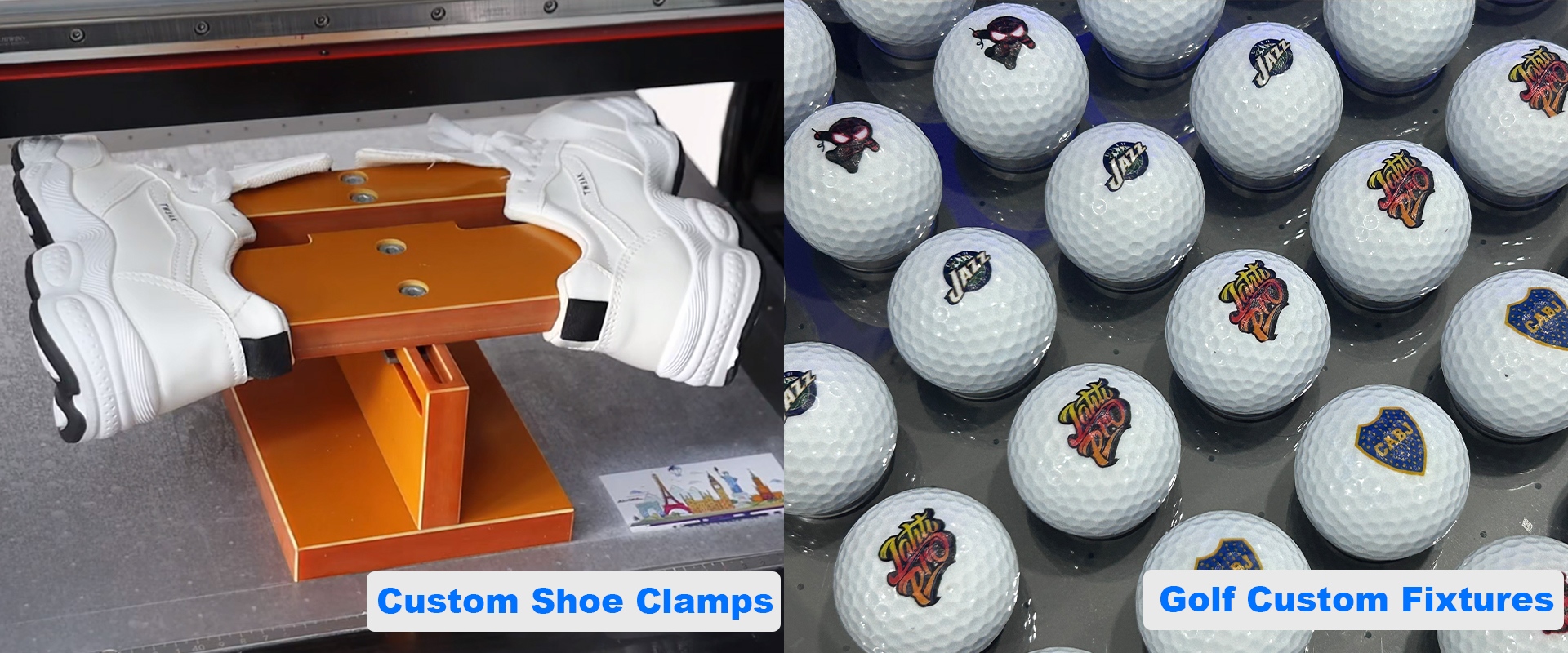

3) UV printing of objects with significant high droplet (non-planar&customized fixture):

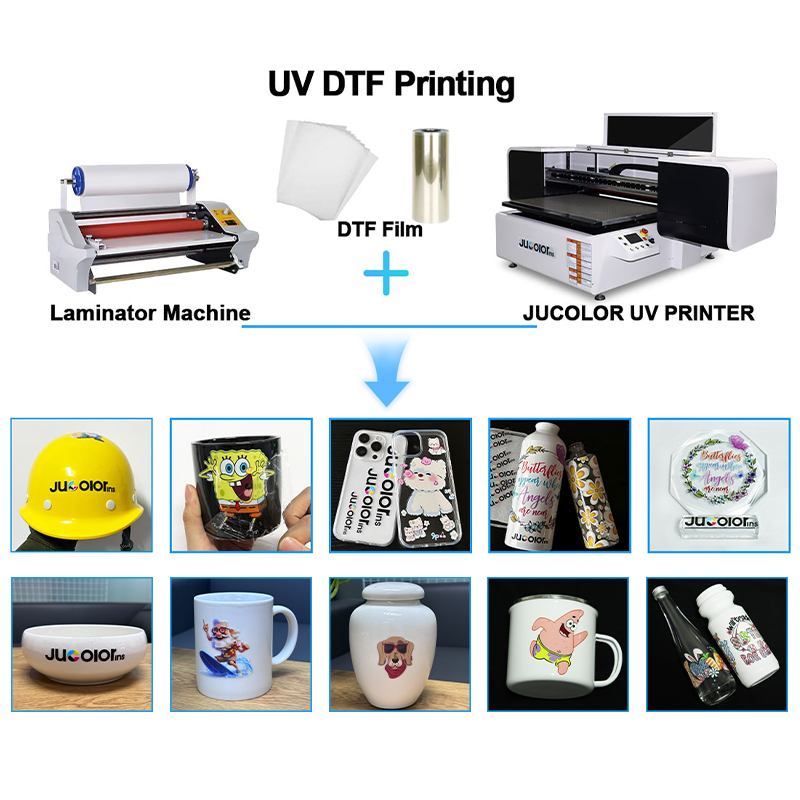

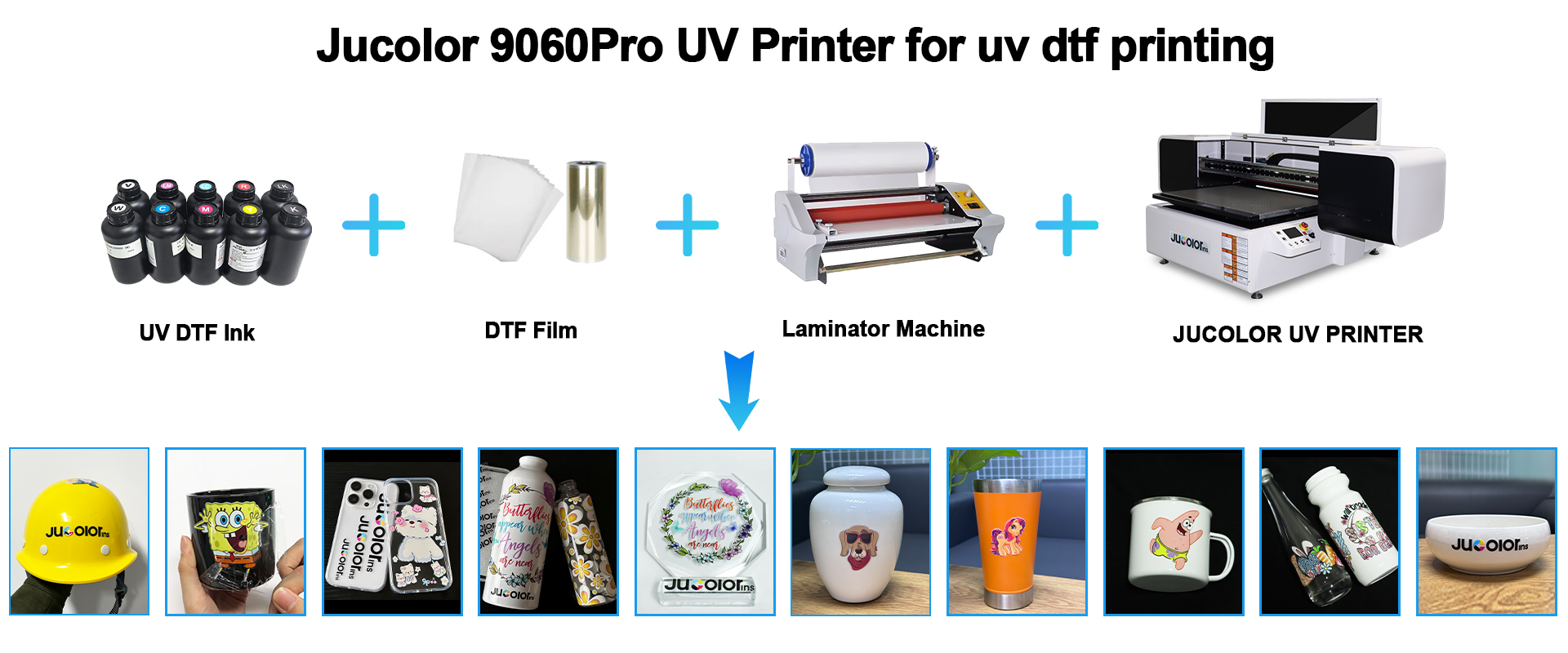

4) Print UV DTF Film Sticker:
UV crystal DTF printing
This Jucolor 9060Pro A1 uv printer supports UV DTF printing.
Print directly on the uv dtf film, then use laminating machine to laminate after printing, then cut and stick to the medias.
The working principle of uv dtf printing is to print the picture on the glue, and stick it to the material you want to print. It is flexible and convenient, suitable for label printing of consumables, but also has disadvantages such as non-waterproof, poor adhesion, and non-ultraviolet protection.
Jucolor 9060pro-Ricoh Applications
Contact us for excellent service!
1) You can enjoy Jucolor's free sample printing service
2) 10+ years of professional experience
10 years of professional sales experience to answer your questions,
recommend the most suitable products and provide solutions for your needs.
We actively participate in the world's most prestigious industry exhibitions every year. We warmly welcome you to visit our booth and discuss further with us.
3) One-on-one after-sales service
online, on-site, and based on customer feedback and satisfaction with our service.
Choose us, choose reliability!
1) Customer visits and customer feedback

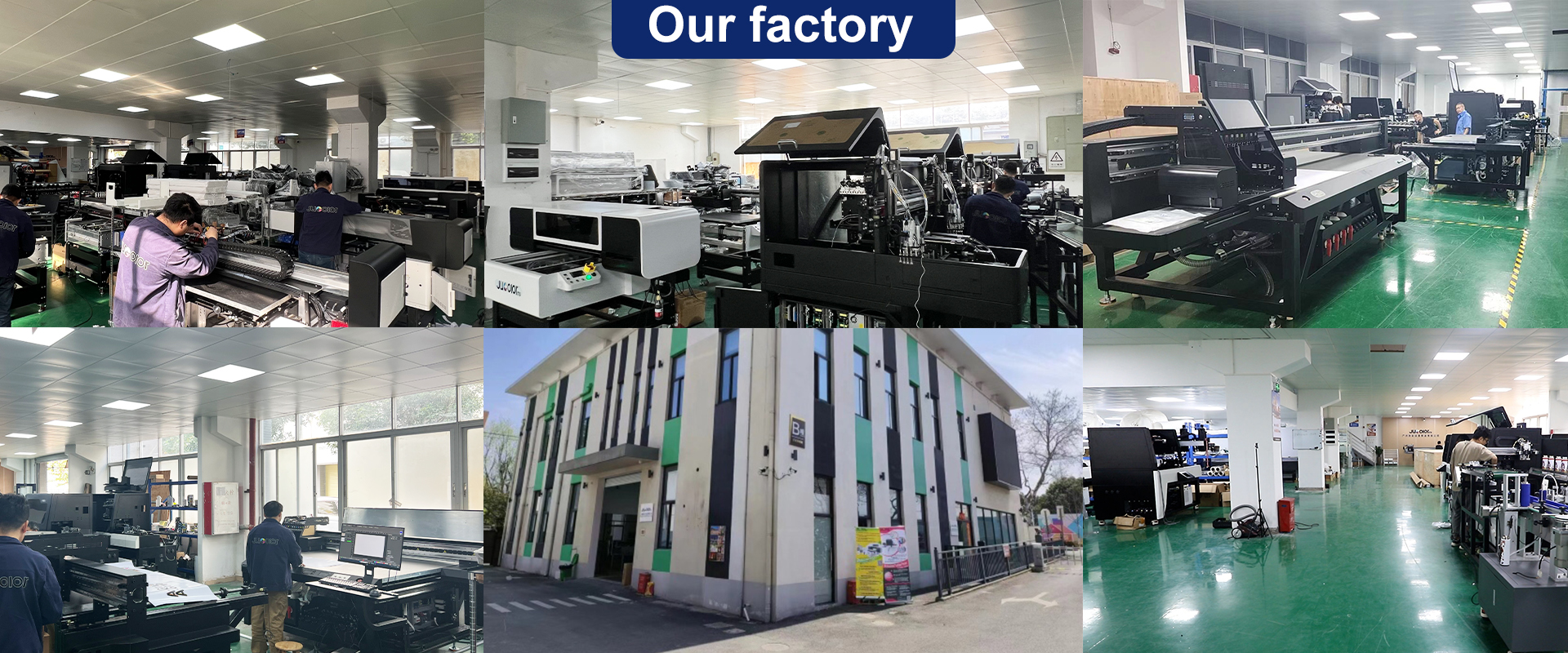

2) Factory Environment and Strength
4) Qualification Certificate
FAQ About JUCOLOR UV Printers
UV printer can print on almost all types of materials.
Suitable for personalized and small-batch printing needs, covering industries like gifts, packaging, stationery and advertising signs.
Features low printing cost and high profit margin.
We use the highest standard materials and the latest technology to ensure that our products outperform other products on the market in terms of performance, durability, and design.
Yes, we provide free sample printing service: send us a high resolution image and specify the material you want to print on.
We will share a video of the entire printing process and the final result with you.
Optional: you can cover the shipping fee, and we will deliver the physical printed samples to you.
We guarantee fast and flexible delivery times to meet our clients' urgent needs and ensure projects are completed on time.
Our company has 10 years of experience in this field, accumulating profound professional knowledge and technology, and can provide customers with high-quality solutions.
We understand that each customer's needs are different, so we provide personalized services and customized products to meet your specific needs.
We strive to maintain reasonable prices while not compromising on product quality and service levels, ensuring that you receive the best return on investment.
Setup and operation are very simple; all printers are pre-installed and tested before delivery.
After receiving the machine, you only need to add ink and install the matching computer software.
The key part to learn later is software operation, which is about how to print different patterns on various materials.
We provide detailed operation manuals, video tutorials and online technical support.
We offer a one-year warranty on the entire machine, excluding the printhead. We also provide lifetime after-sales service.
Our printers use Ricoh printheads from Japan, with an average lifespan of approximately 3-5 years.
Routine printhead maintenance: Print a small amount of content every 2-3 days to avoid prolonged inactivity that could cause ink drying and printhead clogging.
Our machines are stable and technologically mature (with over 10 years of production and sales experience), so malfunctions are rare.
If a malfunction does occur, our technicians will identify the faulty part and ship a new one to you; you can replace it yourself by following our video guide, no professional repair required.
You can contact your sales representative to get free common wear parts, such as print head data cables, ink sacs, ink pumps ,ink pads.
Our company has a highly experienced technical team dedicated to providing online technical support and service to our customers. After you receive your machine, your sales representative will create a dedicated WhatsApp group for after-sales technical support.
You can raise any technical issues you encounter while operating the machine in the group, and we will respond immediately. If you require on-site technical guidance, we can also provide one-on-one offline technical service.
All our technicians are passport-holding and can travel at any time. Our technical team is always ready to provide you with the best after-sales service experience.
