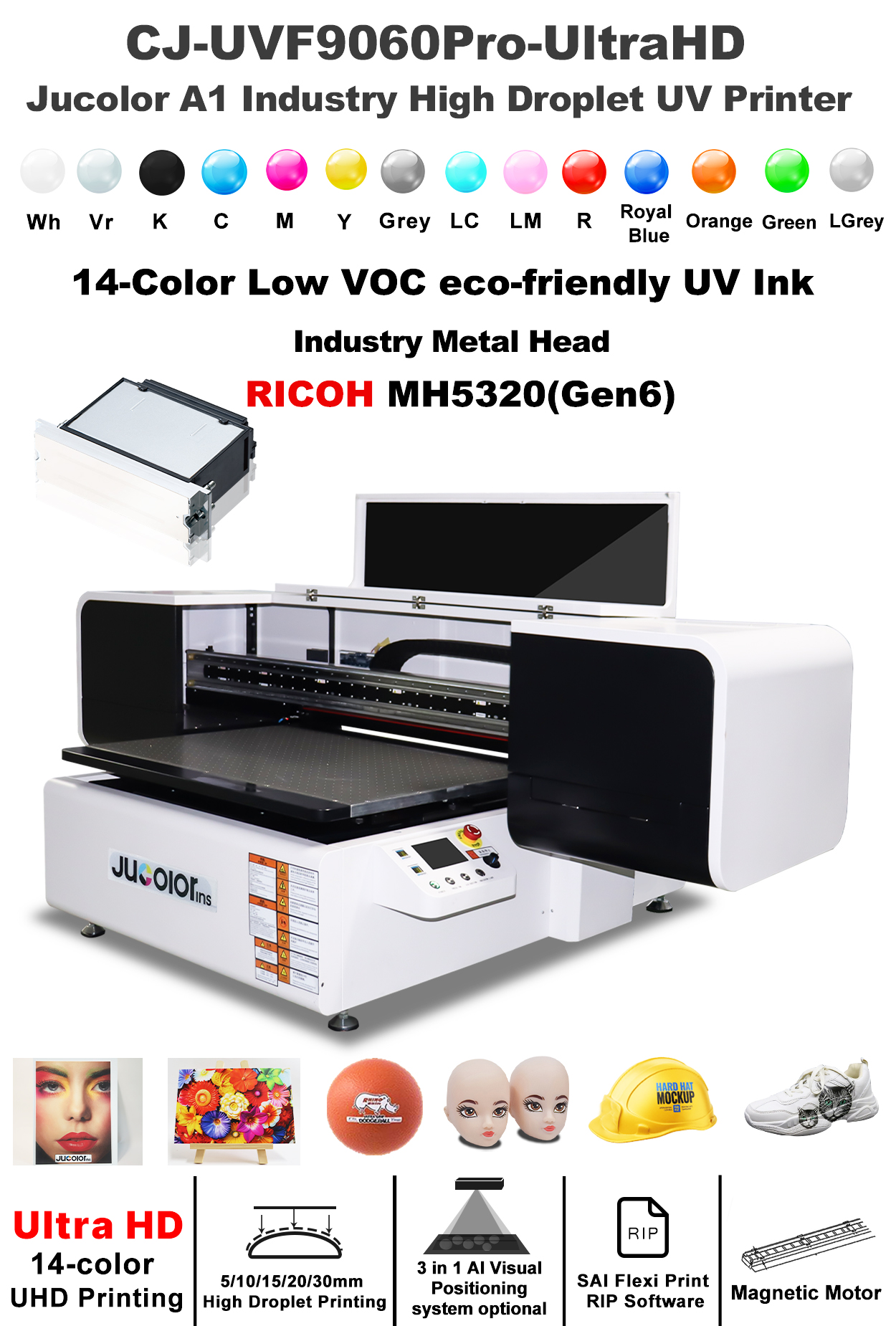

Jucolor CJ-UVF9060Pro-UltraHD 14-color A1 industry uv led flatbed printer with RICOH MH5340 print heads
Meet the CJ-UVF9060Pro UltraHD A1 industrial-grade UV printer—the fifth-generation flagship upgrade to Jucolor’s acclaimed CJ-UV6090Pro series.
With its printing size elevated from 60x90 cm to 91x61 cm (3x2 feet), this powerhouse leverages the superior speed of X-axis operation to slash print times dramatically—even when handling identical print areas.

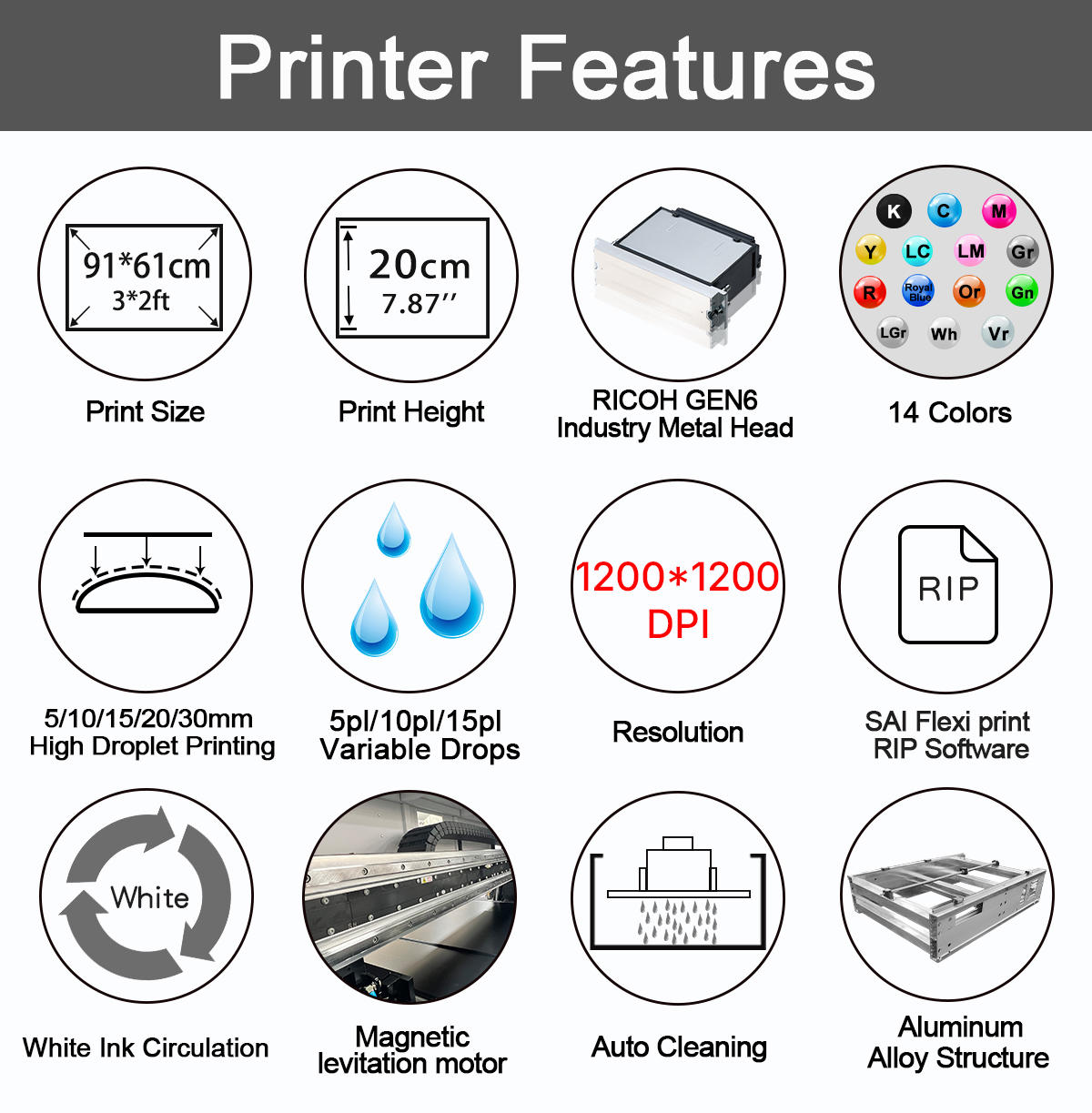

Key Advantages:
✅ High-Quality Output: 14-color system (White+CMYK+LC+LM+Grey+Red+Varnish+RoyalBlue+Orange+LGrey+Green) for photo-realistic prints.
✅ Wide Compatibility: Handles high-thickness materials with consistent, vibrant results.
✅ Precision Engineering: Magnetic grating ensures accurate printing & reduces failure rates.
✅ Smart Automation: (Optional) AI Camera Auto-Visual Positioning for perfect alignment.
✅ Durable Construction: One-piece aluminum alloy casting for lasting stability.

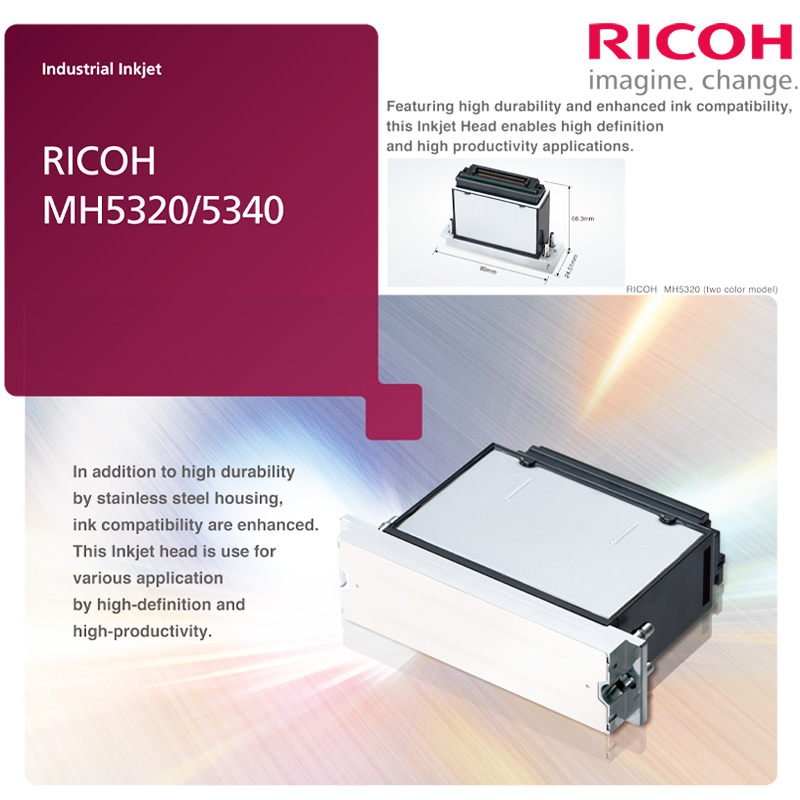

Jucolor 9060Pro-UltraHD small size industry uv printer Using Japan's Ricoh MH5320/5340 all-metal print head, which adopts an all-steel structure, more strong corrosion resistance, up to 4-5 years long working life, high stability, which greatly reduces maintenance time and cost, variable droplet technology gives it excellent printout quality,
Effective 54.1mm/2.1'' printing width allows the printer to achieve much faster printing speed than EPSON Print heads

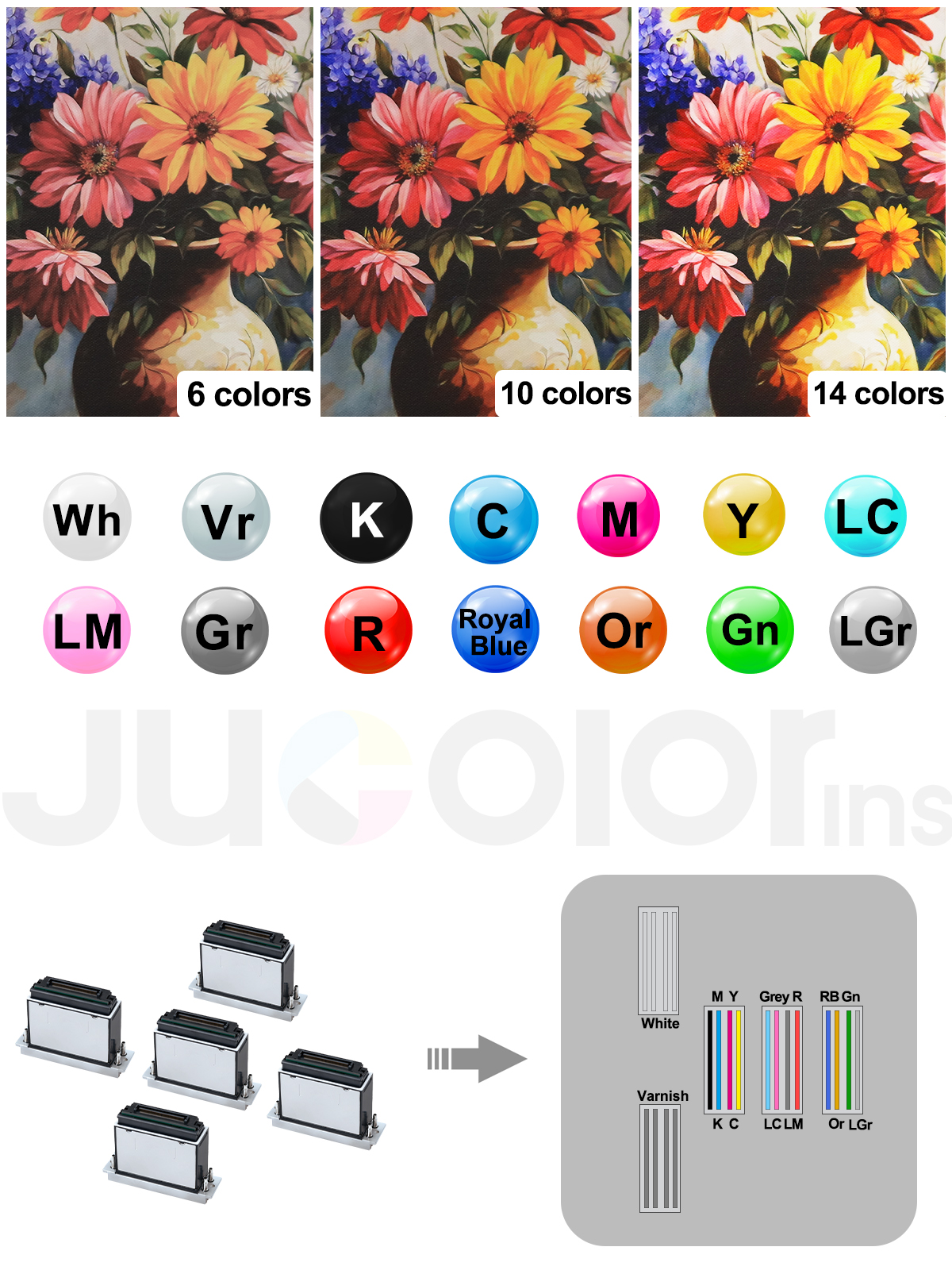

Jucolor 9060Pro-UltraHD inkjet industry uv printer equipped 14-COLOR Photo level printing quality. CMYK, LC,LM,Grey, LGrey/Red White, Varnish, RoyalBlue, Orange, LGrey, Green color uv led curing ink. 14-color eco friendly UV curing Ink, including CMYK, LC,LM,Grey, LGrey/Red White, Varnish, RoyalBlue, Orange, LGrey, Green color, The light-colored ink effectively improves the saturation, delivers bright, colorful, tactile prints with low graininess and smooth gradation. Print output quality is much more higher than CMYK or CMYK ,CL ,LM.

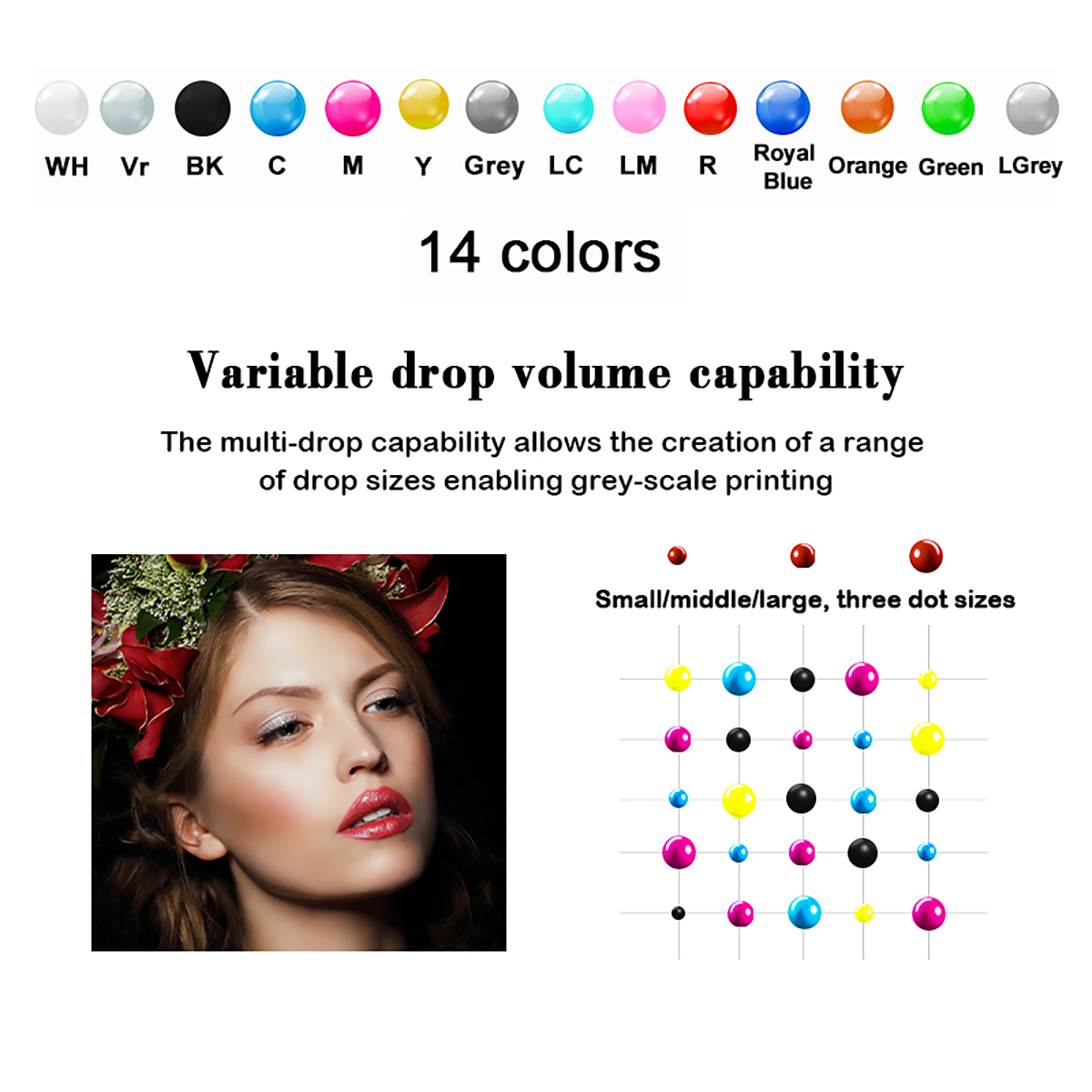

Jucolor 3*2 feet uv flatbed printer use Variable drop technology, Small/middle/large,, three different dot sizes switched freely, provide smooth quality and less graininess. high quality printing without noticeable banding

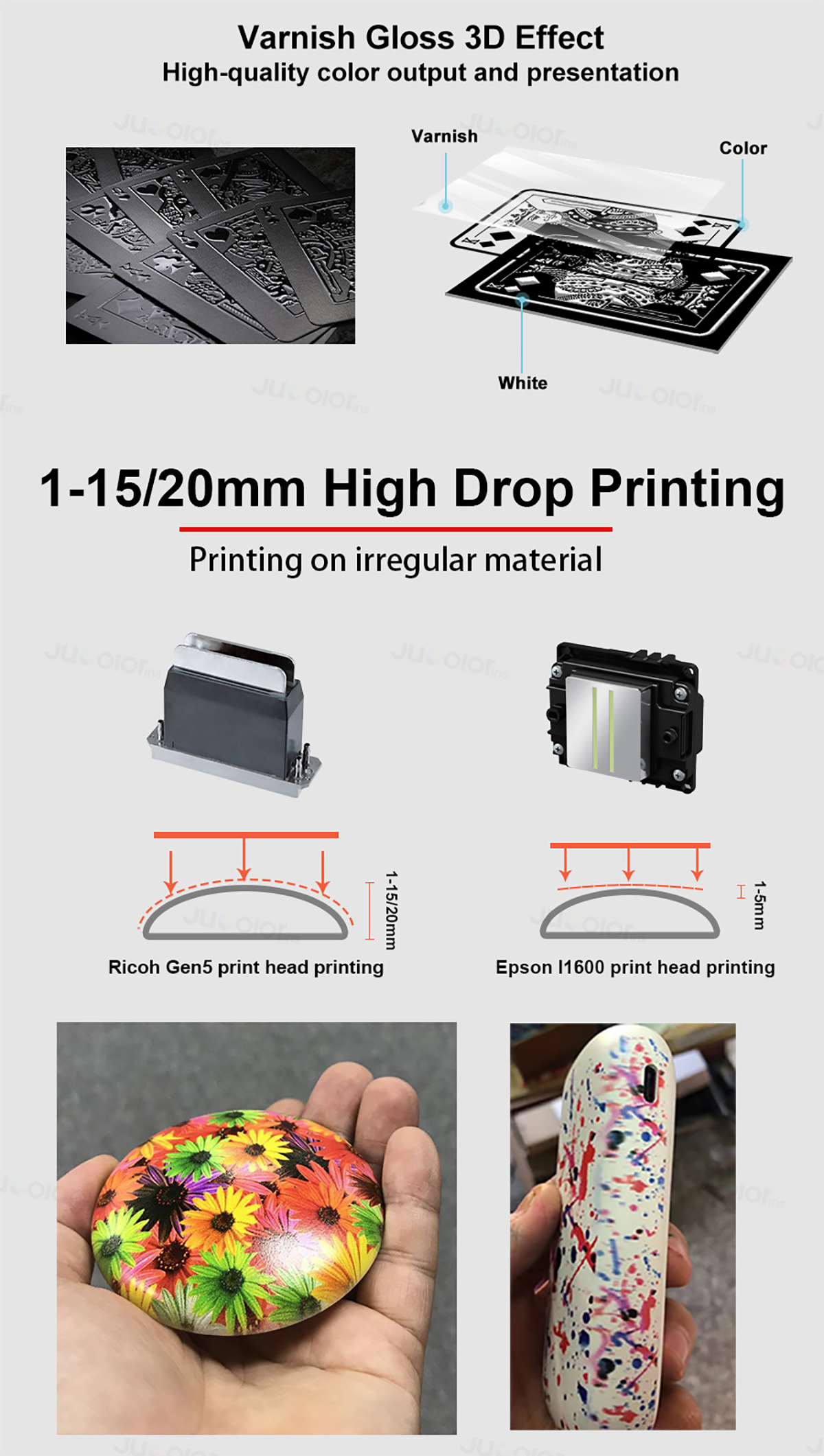

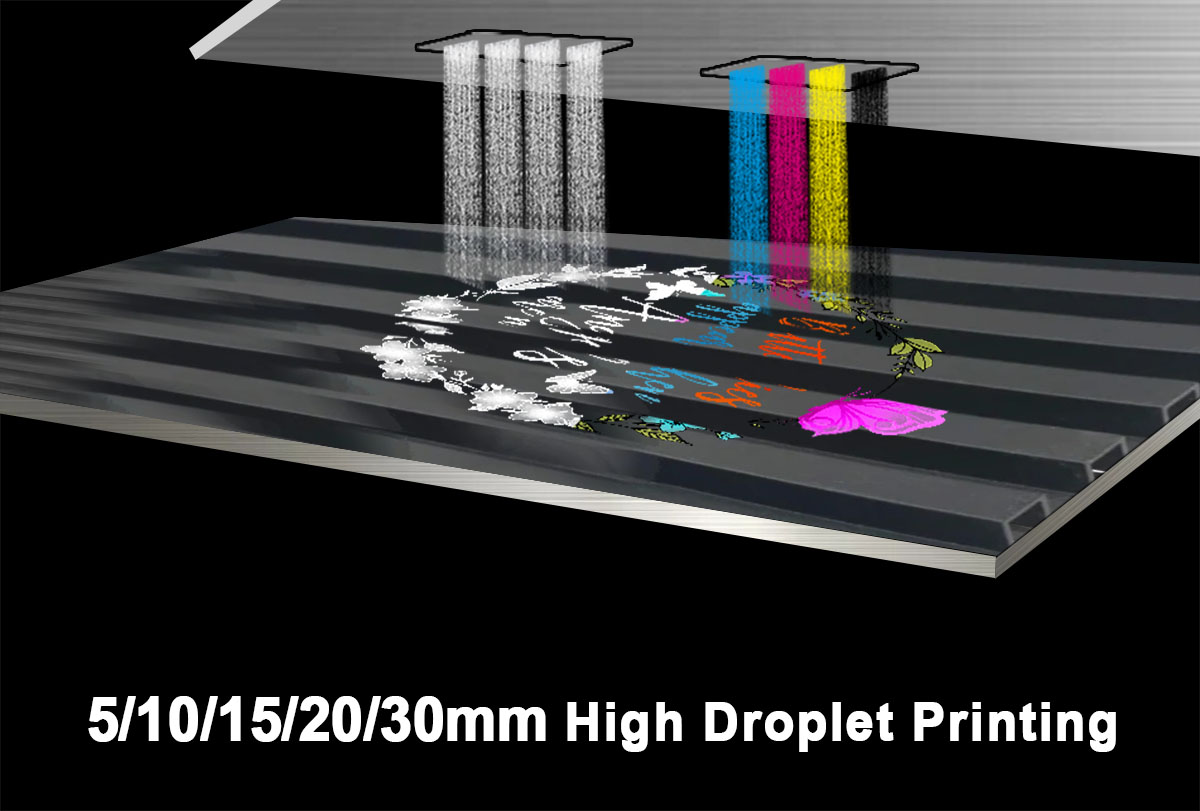

10/15/20/30mm high drop printing
Ricoh Gen6 industrial metal heads, can print 10/15/20mm drop distance. If use special inks, the drop height can reach to 30mm
The high droplet printing of Ricoh industrial metal head enables this industrial UV printer to print on uneven and irregular materials. Such as toys, suitcases, glasses cases, surfboards, trolley cases, shoes, helmets, toys, electrical panels, cabinets, hairpins, accessories, bottles, cups, etc.

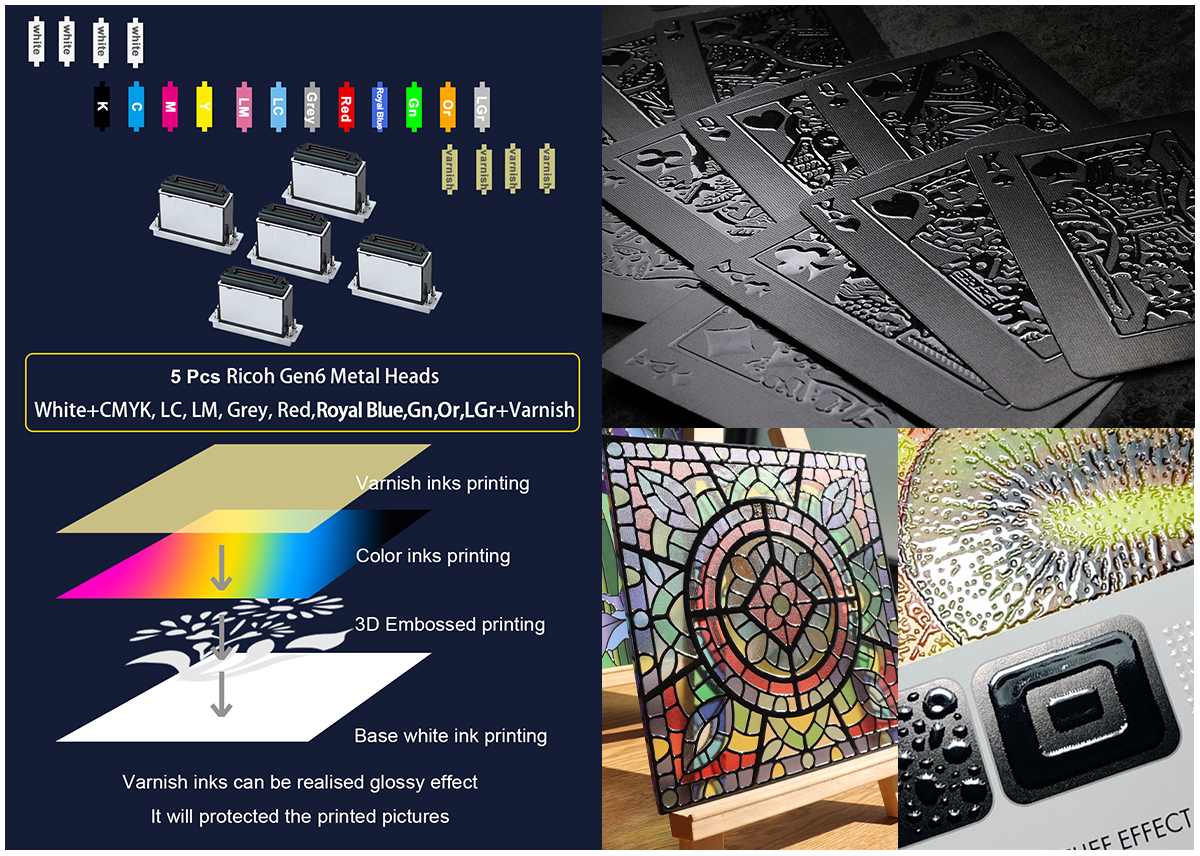

2.5D/3D relief printing
Because equipped with 5 pcs Ricoh Gen6 print heads, varnish and white ink have independent nozzles for printing, which can quickly print out 2.5D/3D relief effects with a strong three-dimensional effect.
varnish gloss and matte printing
supports white, color and varnish inks printing together, outputs good varnish glossy effects, also can prints matte varnish effects.
Printing varnish inks on top of printed medias can also protect the printed image to avoid scratches
This Jucolor CJ-UVF9060Pro-UltraHD middle size uv printer using RICOH MH5320/5340 print heads which can achieve effective 1-20mm high gap function. If use special ink the high gap distance can reach to 30mm(Best printing samples to check the quality). Greatly expands users’ business scope

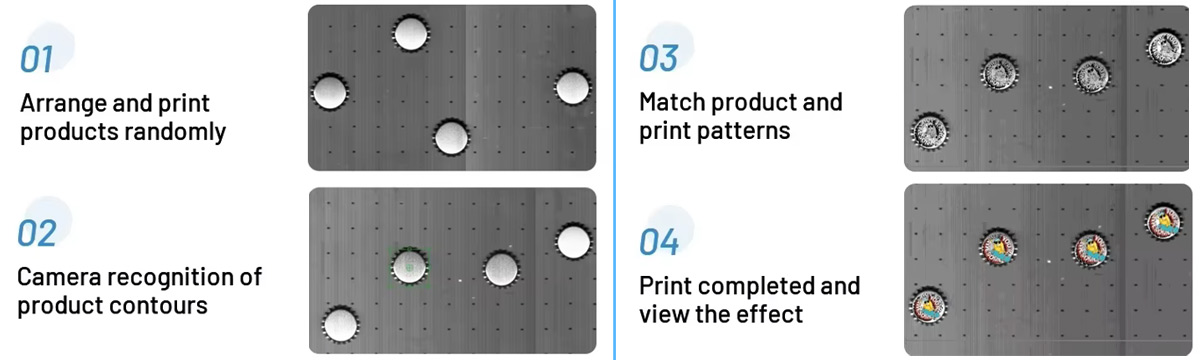

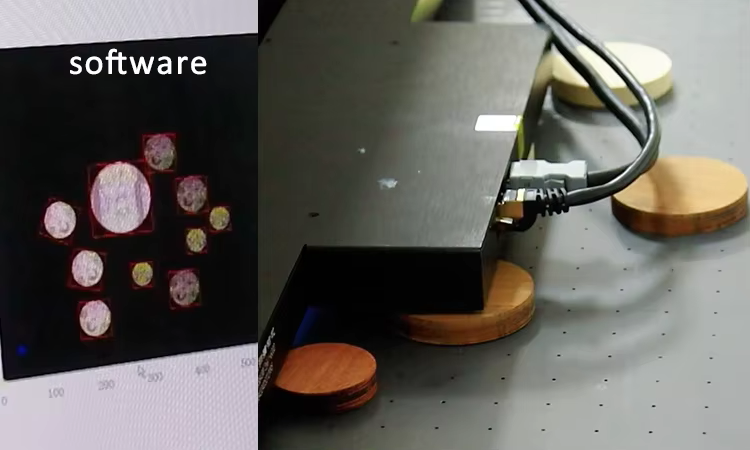

Visual Positioning Advantage
Visual recognition devices have higher pixel resolution, higher image acquisition accuracy,faster speed, and more efficient image processing.
Intelligent identificationand positioning without molds
High production efficiencywithout positioning
Solve the problem of locating shaped products
Intelligent matchingof multiple drawingswithout layout
Flat-rotary dual-purpose UV printer
This Jucolor 9060Pro-UltraHD A1 uv printer can not only flat objects but also cylindrical materials. It is equipped with a rotating fixture independently developed by Jucolor group, can directly print various cups, such as straight-through cups, cone cups, thermos cups, electronic cigarettes, candles, and mugs with handles.
Jucolor 3*2 feet A1 industry uv printer 9060Pro-UltraHD can print out Varnish bright glossy effect, Matte glossy effect, Photo level colorful, tactile prints with low graininess and smooth gradation 3D embossed effect on almost any kind media, both rigid and soft medias like leather, Metal, Paper, Toy,Suitcase,Manicure , Bottle, Braille,Small Tube,Pen, Phone Case, Glass, Plastic, Board, Leather, Rubber, Lighter, Wood, Porcelain, PVC, ABS, Acrylic , Aluminum, Ceramic Tile, Marble, Granite, etc
| Printer Model | CJ-UVF9060Pro-UltraHD | Print Head | 5 pcs industry Ricoh G6 |
| Max Print Size | 91*61cm/ 3*2 feet | Accepted Material's Height | 20 cm/ 7.8 inch |
| Printing Direction | Smart Bi-directional Printing | Print Resolution | 720*600DPI, 720*900DPI,720*1200DPI, 1200*1200DPI |
| Special Remarks | Customized is available | High Gap Printing Distance | 15/20 mm able to print on uneven and irregular materials |
| Weight of Material | Panel:≤ 50 kg/m2 | Ink Colors | 14-color CMYK, LC,LM,Grey, LGrey/Red White, Varnish, RoyalBlue, Orange, LGrey, Green |
| Machine Standard Configuration | The Advantages | ||
| 91*61 cm/3*2 feet print size | Popular 9060 UV printer,Effectively improve printing efficiency | ||
| 20 cm max print thickness | Highly meet bigger and higher medias printing needs | ||
| Vacuum air suction platform with mark | Anti-corrosion, anti-oxidation, easy to clean,locate the printing position quickly | ||
| Dual-channel negative pressure ink supply system | Ensure the continuous ink flow, Effectively protect print head from blocked, easy maintenance | ||
| High-strength steel fuselage structure | High strength , no deformation, Ensure high-quality printouts and extend the life of your printer | ||
| Y axis double screw rod guide | Stable and precise movement, high precision printing | ||
| Auto medias height checking system | Helpful for customer setting proper print height in quickly | ||
| Ink heating system | Maintain the fluency of ink, the printer can also work normally in winter | ||
| Anti-collision system | Protects the printhead from touching or impacting the media | ||
| RIP Software | USA Sai brand Flexi print | Drop Volume Size | 3.0 picolitre |
| Software | Photoshop, CorelDraw, Illustrator, | Languages | English |
| Interface | DPCS | Operating system | Windows XP/ME/Vista/Win7/Win10 |
| Ink Supply | 500 ml/bottle | Ink Consumption | 15 ML/SQM. |
| Driving Power | 110 V/ 220 V. | Power Consumption | 2500 W/ Hour. |
| Machine Size | 2100*1360*750 mm,250 kg | Packing Size | 2250*1500*1050 mm ,335 kg |
| Packing | Plywood packing | Delivery | 1-3 days |
| Applicable Industry | mugs, bottles. balls, Phone case, pen, banner, PVC board, ceramic tile, glass, plastic, leather, rubber, candles, metal, wood, porcelain, ABS, acrylic, aluminum, marble, granite, paperboard etc | ||
Best Industrial-level Model with Excellent Printing
Why Jucolor 9060Pro-UltraHD UV Printing Machine?
◉ Industrial-grade Ricoh print head, stable and less maintenance
◉ Unique 14-color printing, 100% realistic effect, biz effect with high quality and high commercial value
◉ Up to 20cm (if choose 9012 uv printer which one up to 50cm printing height ), the items that can be printed are wider, and your market is more impressive
◉ Large-format 90*120 cm double 6090 printing size, high-efficiency printing helps your products quickly respond to market needs

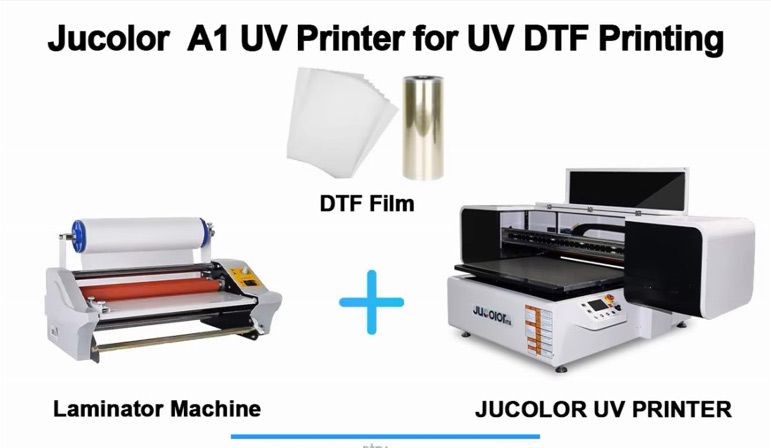

UV DTF Stickers Printing
This Jucolor 9060Pro-UltraHD A1 uv printer supports UV DTF printing Print directly on the uv dtf film, then use laminating machine to laminate after printing, then cut and stick to the medias
The working principle of uv dtf printing is to print the picture on the glue, and stick it to the material you want to print. It is flexible and convenient, suitable for label printing of consumables, but also has disadvantages such as non-waterproof, poor adhesion, and non-ultraviolet protection

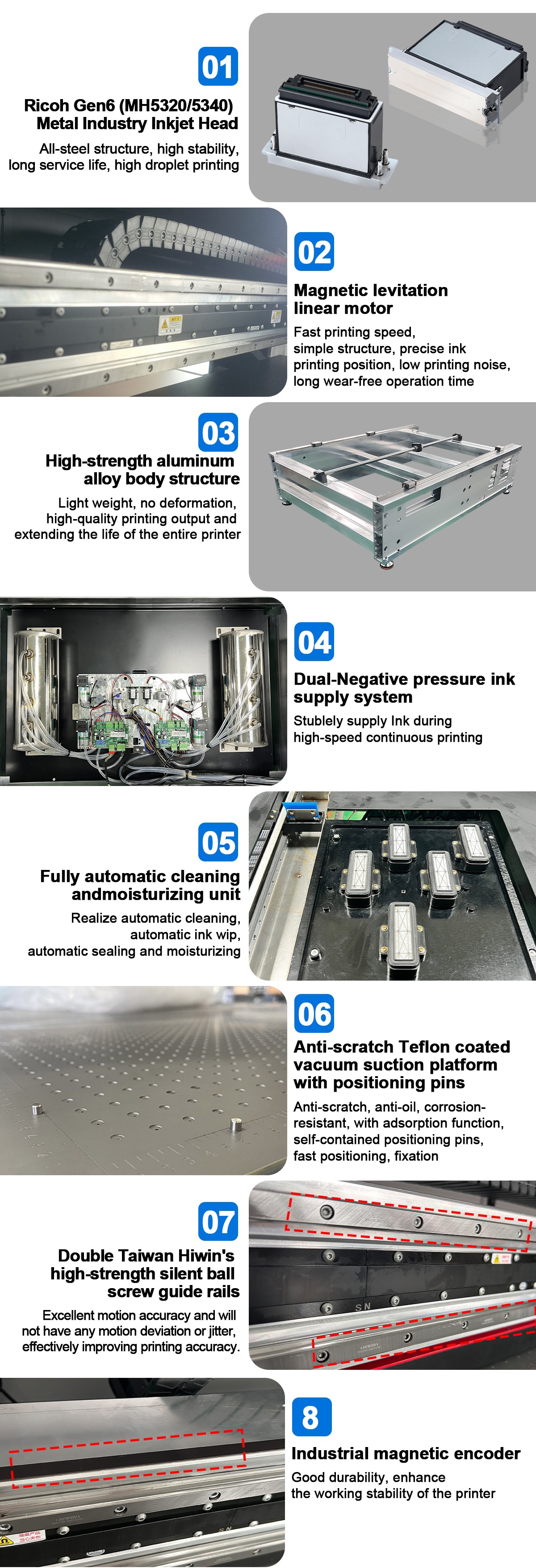

Jucolor CJ-UVF9060Pro-UltraHD Feature Diagram Collection
All Lifetime Service
About Jucolor After-sales Service
Jucolor Warranty and service guarrantee:
1.One year warranty, all lifespan service
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free, except for the print head.
3. Convenient online consultation
The technician will keep online, No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it.
The main printing cost of uv printer is ink cost, 1 liter ink can print 50-65 sqm.
For example, printing an A3 size picture with CMYK+W+V 3 layers, the ink cost is about $0.36, and the A3 size painting for sale online up to $35, the wholesale pricing for as little as $3.
The CJ-UV9012pro uv printer can print about 18 pcs per hour, please think about how profit you can get every hour?
Unsere Kunden sind auf der ganzen Welt. In der UV-Druckerbranche ist JUCOLOR sehr professionell und führend. Wir verlassen uns auf unser solides Fundament und unser starkes After-Sales-Team, um in den Herzen vieler Kunden sehr gute Ergebnisse zu erzielen.
Our products are sold in more than 60 countries on five continents around the world. If you have any needs or doubts, we can give you corresponding praise. You are completely free from worries and can purchase our products at any time.
The printer has 1 year warranty, during this period, any parts are damaged, we will repair and replace new for you, except print head, all shipping cost of after-sale is our responsibility
We established a professional engineers team, we will give you lifetime service. When you get the printer, our engineers team will set up a group to provide you with one on one technical support, guide you how to operate the printer step by step till you use well
Jucolor adopts latest technology, strict quality control for every parts before printer shipment, hope you can get a good cooperation experience with us.
Choose Jucolor 9060Pro-UltraHD UV Printer
Starting Your Business with High Quality Machine
We have a certain amount of inventory and can complete the shipment within 1-3 days.
We use good packaging for our products, which allows them to safely reach customers during transportation.
