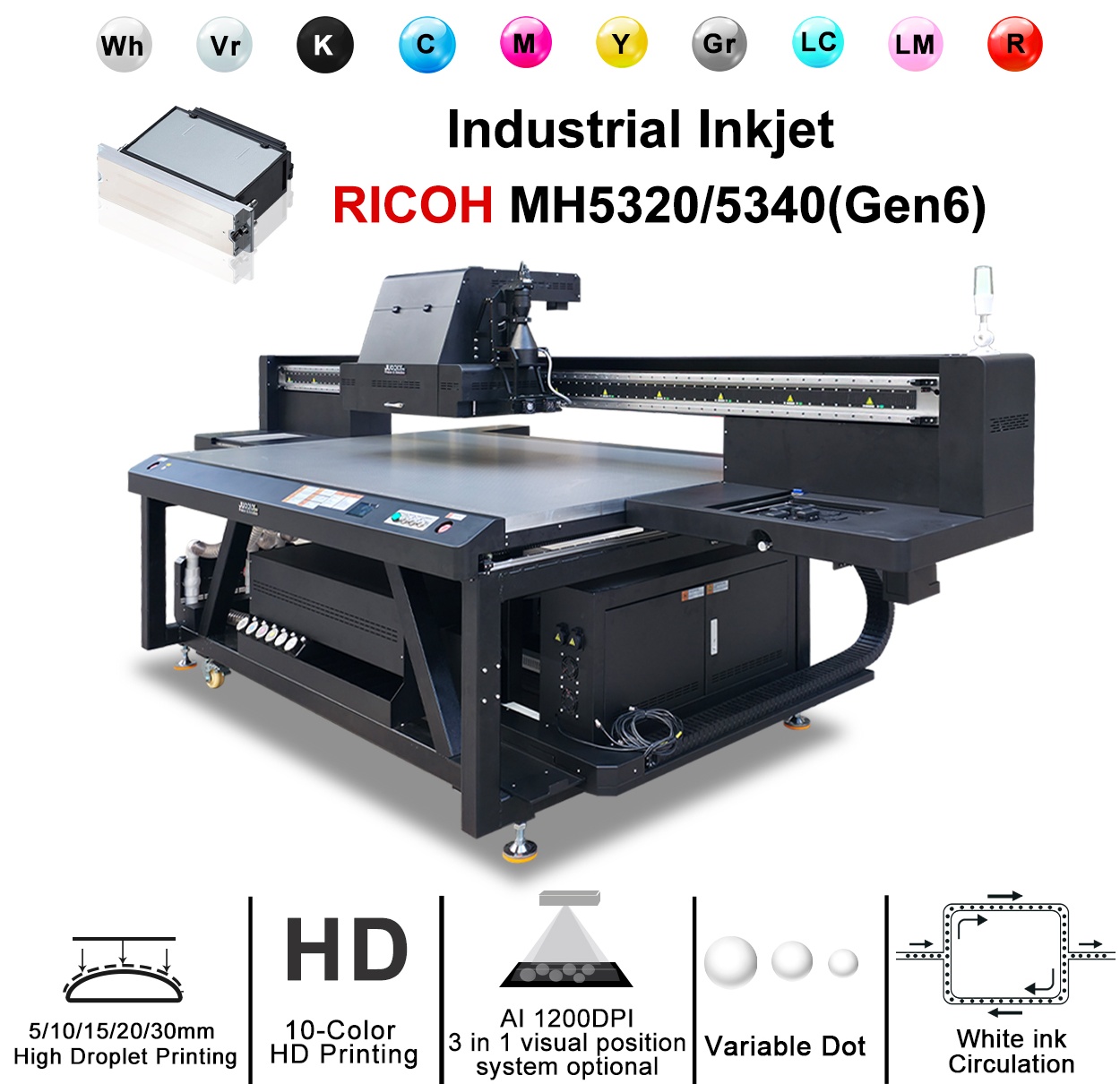

Jucolor UVF2513Pro-RICOHHD 245125cm/8′4′ Industry Large Format UV Flatbed Printer

Short Description:

The Jucolor 2513Pro-RICOHHD Large-Format Industrial UV Flatbed Printer is an industry, large format high-droplet/throw and fast printing UV flatbed printer equipped with Ricoh G6 industry metal inkjet printheads.

✅It adopts Ricoh industrial-grade printing engine (RICOH MH5320/MH5340 metal heads) and professional industrial board control system, with stronger stability, faster printing speed, larger printing droplet/high throw, effectively meeting customers’ requirements for printing speed, printing accuracy and high drop printing.

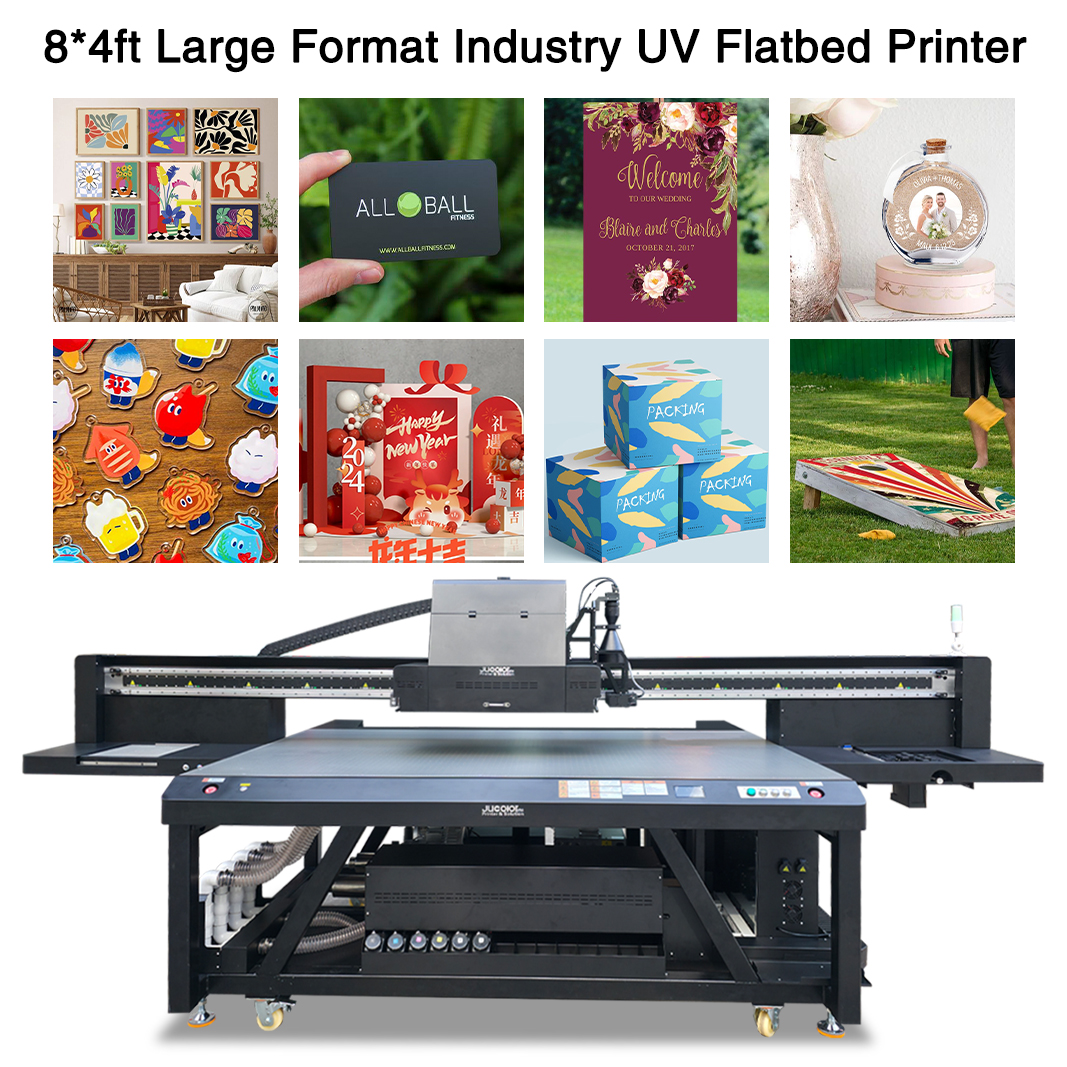

✅It is an ideal cost-effective solution for personalized souvenirs, customized gifts, advertising printing, industrial production and special promotional materials. It can print large-size materials with high print quality, high droplet, low maintenance and flexible printing.

✅Can print on almost any type of media, including rigid and flexible media, carpets, computer cases, metals, toys, bottles, Braille, small tubes, pens, mobile phone cases, glass, plastics, wood boards, leather, rubber, lighters, wood, PVC, acrylic, aluminum, tiles, marble, canvas paintings, etc.

✅1200 DPI AI-scanner visual on one pcs automatic positioning software. Easier operation on one pcs software and do not turn on rip software, camera controller separately.

✅245*125cm/ 96.45inches x 49.21inches effective printing size, 20cm/ 7.87inches printing height effectively meet customers’ daily commercial printing needs.

Thanks to the Ricoh industry Gen6(MH5320) printheads, this uv printer features high-droplet/throw printing capabilities, achieve 5/10/20mm drop distance,if using special inks. Droplet distance can reach up to 30mm, allowing it to print not only on flat materials but also on uneven medias such as game controllers, basketballs, mice, keyboards, toys, cups, and helmets, effectively expanding its commercial applications.

Send Email Chat Now

Product Detail

CJ-UVF2513Pro-RICOHHD UV Printer

Jucolor High Definition 8*4feet /2513 Industrial UV Flatbed Printer

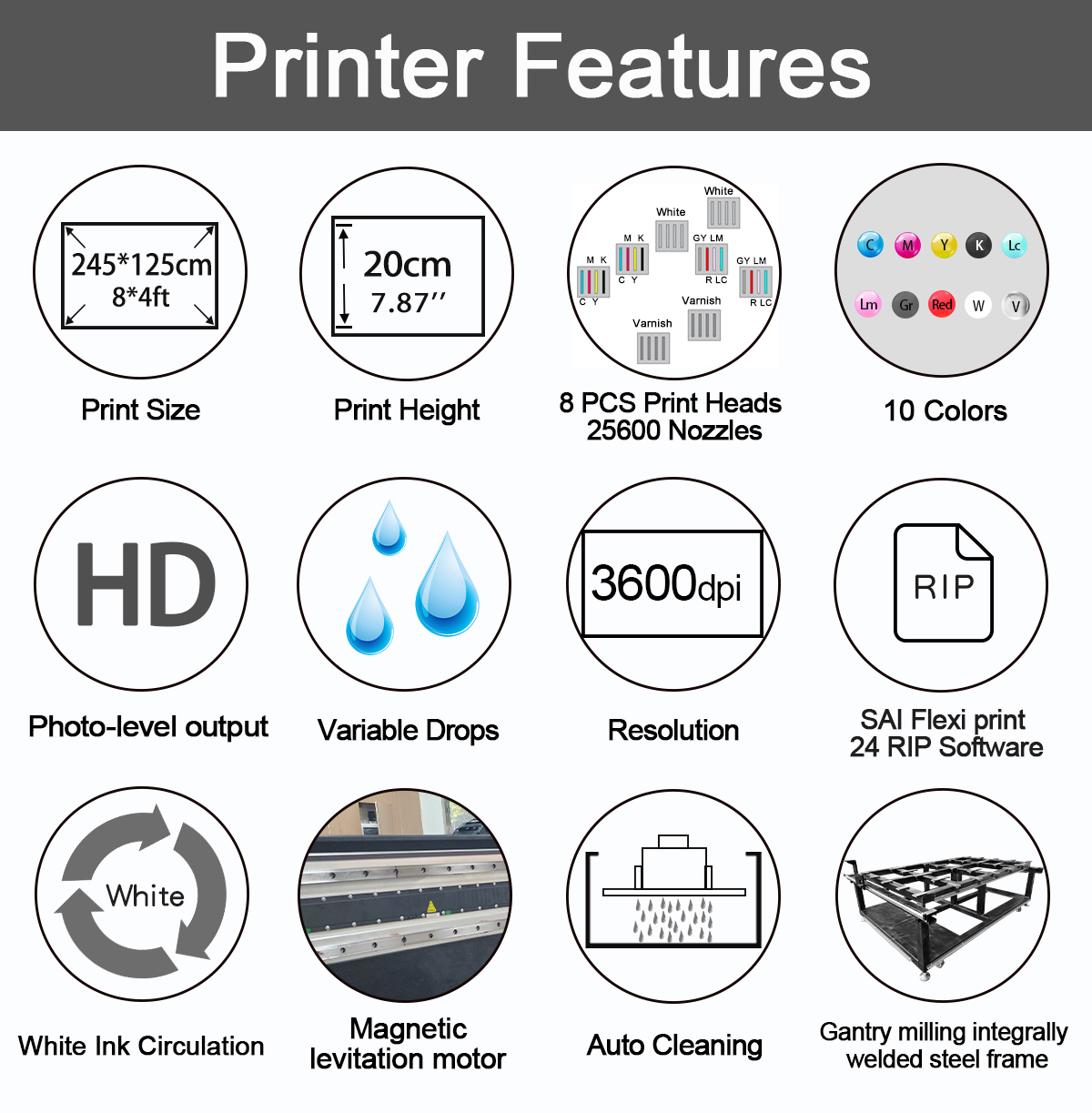

Productivity & Quality & Precision

10-color VOC-free eco-friendly ink

* 2-8PCS RICOH GEN6 industry metal printheads

* 10-color: White, CMYK, LC, LM, Gray, Red and Varnish

* HD Photo-quality printout

* 245 x 125cm/8 x 4' print size, 20cm/7.87" print height

* Optional AI camera auto vision positioning system

* (SUPPORT 5/10/15/20MM high droplet) 3D relief printing, Varnish gloss and matte printing

* Variable droplet technology minimizes graininess

* High-speed printing, supporting bidirectional printing

* High stability, low maintenance, and open design for easy maintenance

* Magnetic levitation motor, higher precision, faster speed, and lower noise

* Japanese THK high-precision guide rails, increased durability and quietness

* Magnetic strip encoder more accurate printing and lower failure rates

* Dual negative ink supply, greater stability and continuous ink supply

* White ink circulation effectively prevents ink settling

* Ink constant temperature heating system effectively ensures smooth ink flow

* Auto cleaning and moisturizing unit

* Auto ink scraping system eliminates the need for manual scraping

* Highly sensitive print head anti-collision and light shielding system effectively protects print head

* Gantry milling steel welded body structure ensures stability, deformation resistance, enhancing precision

* 250 x 130 cm scratch-resistant Teflon-coated vacuum adsorption platform with built-in auxiliary positioning pins

* High-precision Y-axis screw drive for smoother operation

*Jucolor CJ-UVF2513Pro-RICOHHD High Definition 84' Industry Large Format UV Flatbed Printer**
Model	CJ-UVF2513Pro-RICOHHD	Ink type	UV Led curing ink
Print head	RICOH MH5320 Industry heads (G6)	Ink color	CMYK, LC,LM,Gray, Red W, V
Print size	245125cm/8’4’	Print height	20cm/7.87’’
Numbers of print heads	2-8 pcs	Cartridge Capacity	1500 ML each color, lack of ink alarm,White Ink Stirring
Printing medias	Glass, Acrylic, Wood, , Metal sheet, PVC,Plastic,Ceramic,Paper Leather, PP, PE, PTFE… etc
Printing speed	Print head amount	4 PCS	8 PCS
	Draft	18.37 ㎡/h	45.9㎡/h
	Production	15.31㎡/h	30.62㎡/h
	Quality	9.1 ㎡/h	18.37㎡/h
	High quality	6.12㎡/h	12.25㎡/h
Resolution	900DPI,1200DPI, 1800DPI, 2400DPI,3600DPI
Power Supply	50/60Hz, 220-240V 5KW	Working temperature	20℃-30℃（72℉-86℉）
RIP software	RIP Print/SAI flexi print 26 Jucolor Edition	Working humidity	40%-60%
Printer size	437521371607mm,1100KG	Packing size	458022501800mm, 1300KG

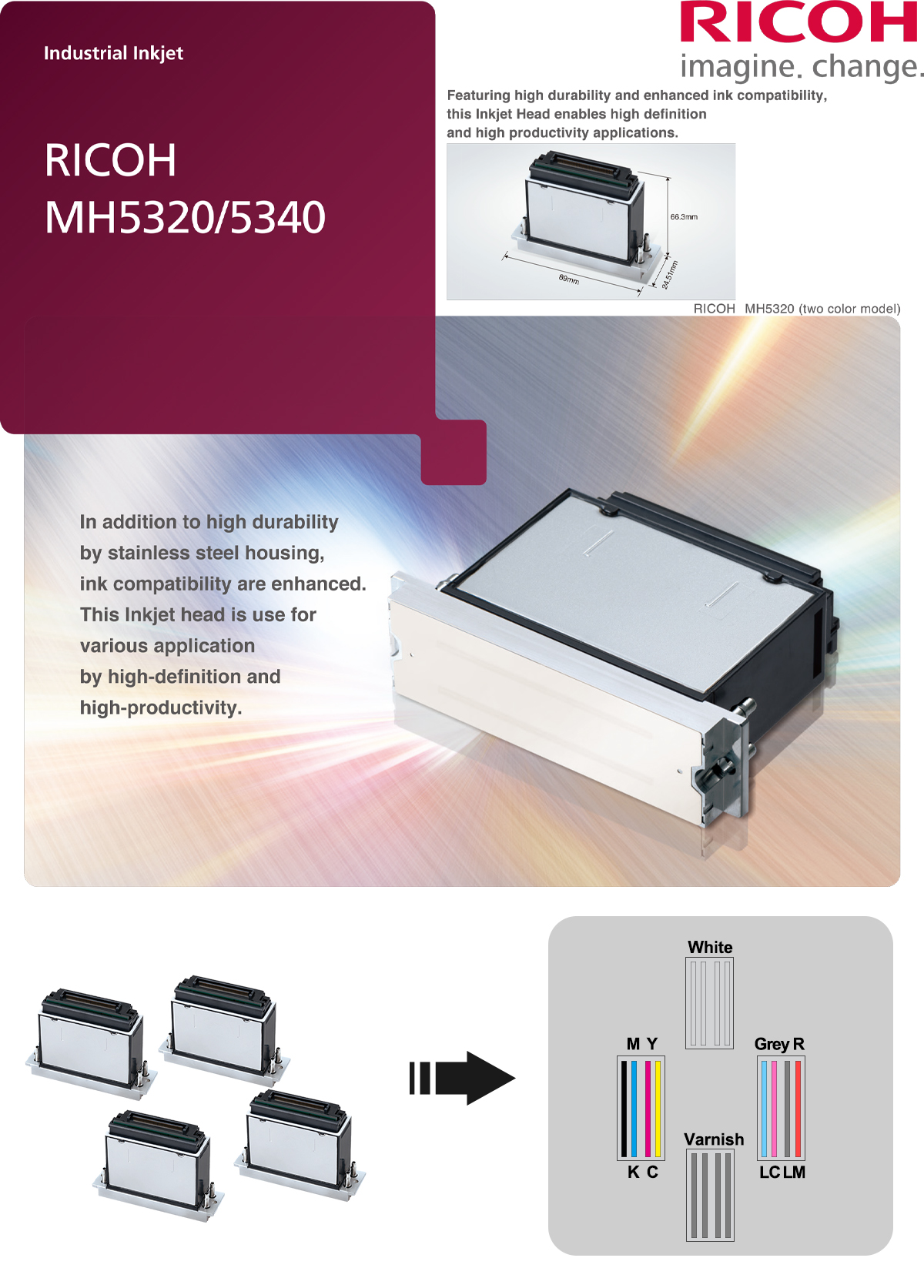

Japan Ricoh Gen6 (MH5320) metal industry inkjet head

Ricoh head adopts all-steel structure, with strong corrosion resistance, ultra-long working life of up to 4-6 years, high stability, greatly reducing maintenance time and cost,

variable drop technology produces excellent print output quality,

54.1mm effective print width allows the printer to obtain a much faster print speed than EPSON heads

High droplet printing up to: 10/15/20mm, special ink up to 30mm

1,280 nozzles, print width 5.41 cm

Made of stainless steel, with excellent durability and extended service life.

Built-in heater

Variable drop capacity 5PL, 10PL, 15PL

The Jucolor HD series UV printers utilize specialized neutral gray ink to significantly enhance image print quality

This color ink delivers pure and smooth grayscale transitions, enriches photographic tonal depth, effectively expands the color gamut, and improves performance in light-color areas.

The output exhibits natural gradients without color cast, noticeably reduces ink dot accumulation and graininess, and ensures even, delicate color distribution with barely visible dots.

The result is a highly flat surface and sharp, clear reproduction detail.

Furthermore, this ink system helps reduce ink consumption, increases printing efficiency, and ensures outstanding color stability and consistency, meeting professional-grade printing demands.

Jucolor uv printer hd printer red printing

The Jucolor 2513Pro-RICOHHD UV printer employs dedicated red UV ink to deliver an exceptional printing experience and professional-grade output:
Excellent Color Performance
Vibrant and saturated colors significantly expand the color gamut, producing striking bright red tones

Accurate spot color reproduction ensures high consistency across different print batches
Effectively reduces graininess and enables smooth gradients with refined, natural transitions

High-Efficiency Printing
Large red graphics can be covered in a single pass with specialty ink, dramatically increasing printing speed

Combined with a white undercoating process, it achieves excellent coverage and color saturation even on dark materials
Expanded Creative Possibilities

Offers more efficient production solutions and broader creative opportunities for high-end packaging, brand displays, artistic creation, and professional signage.

The JuColor CJ-UVF2513Pro-RICOHHD UV printer is equipped with an 10-color eco-friendly UV ink system, including white, CMYK, light cyan (LC), light magenta (LM), photo Gray, vibrant specialty red, and transparent varnish.

Leveraging this extensive range of standard and specialty inks, this 8*4ft uv printer achieves 2.5D embossed effects, producing outputs with exceptional gloss, vivid color reproduction, refined detail, minimal graininess, and smooth gradients—delivering outstanding visual and tactile quality.

2.5D/3D Embossed Texture Printing

Utilizing high-frequency industrial-grade print heads, with separate print heads for varnish and white ink, it can quickly print 2.5D/3D embossed textures with a strong three-dimensional effect.

Varnish gloss and matte printing
Supports white, color and varnish inks printing together, outputs good varnish glossy effects, also can prints matte varnish effects.
Printing varnish inks on top of printed medias can also protect the printed image to avoid scratches.

JuColor's three-in-one AI visual positioning system
Utilizing 1200dpi,4K large-format camera, effectively ensures scanning accuracy within 0.1mm, enabling a single scan width of up to 70mm. Bidirectional scanning is supported, ensuring both speed and precision.
It features fast scanning speed and high accuracy, effectively ensuring accurate scanning. Its simple operation eliminates shortcomings such as misalignment and high print rejection rates, significantly simplifying the printing process, improving speed and productivity, and reducing defect rates.

Three-in-one RIP software, printer control software, and visual scanning control software greatly simplify the user experience and provide convenient user experience.

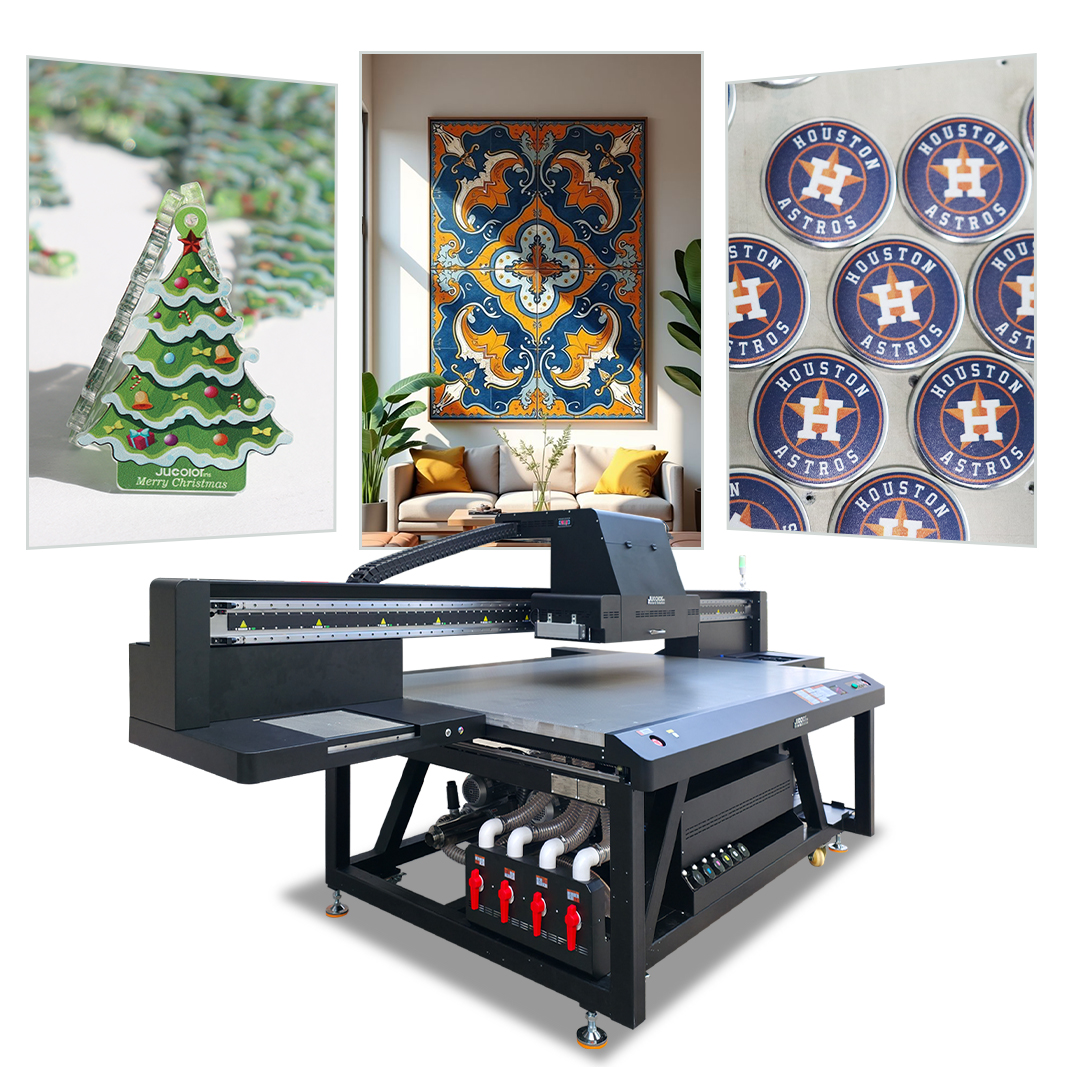

It can be used for printing on lighters, handicrafts, buttons, gift boxes, badges, toys, and industrial production.

jucolor uv printer with SAI flexiprint rip software

USA brand SAI Fleix print 26 Latest version Jucolor Edition RIP software
International advanced professional RIP color management software, Fleix print Easy to use, stable, high color reproduction.

Led-UV Curing lamp
Using high-performance lamp bead water-cooled curing lamp, the light source is environmentally friendly and pollution-free, in line with UL standards, the lamp bead life is about 40,000 hours, the light source temperature is low, and it can adapt to more temperature-sensitive materials.

JuColor 2513Pro-HD 4’*8’ UV printer adopts linear motor

reliable and long life, fast printing speed, simple structure, accurate ink point position, high positioning accuracy, easy maintenance, low printing noise, fast response speed, long running time without wear.

Compared with transmission belt drive, printing speed of the linear motor is increased by 20%-25%, which greatly meets the customer's requirements for printing speed.

Low noise effectively alleviate noise in working environment, reliable and long life can effectively reduce replacement cost.

Jucolor uvprinter White ink circulation_

JuColor 2513ProHD uv printer is equipped with white ink circulation device independently developed by Jucolor

As we all know, uv led white ink is easy to precipitate, the color of white ink printing turns yellow, and head easy to be blocked, which greatly affects the life of print heads and the printing quality. Users often need to repeatedly clean print heads and pump ink to make the white ink print normally, which wastes manpower, time and ink.

JuColor engineers optimized ink supply system and added pump to make the ink circulate in the ink tube and ink cartridge, which can avoid white ink precipitation to the greatest extent, improve printing quality and reduce maintenance time and cost.

Jucolor 2513HD UV Printer with layout pins

Hard oxide adsorption platform with automatic positioning function.
Jucolor 2513 4’*7’ size uv printers use Hard-oxidized honeycomb-hole sub-chamber adsorption platform has strong adsorption capacity, which can effectively absorb printing material during printing process, prevent printing material from shifting, effectively ensure high-precision printing output, avoid print heads scraping caused by material warping. Damage problem, adsorption area can be adjusted at will, platform surface has high hardness, scratch resistance, corrosion resistance, easy to clean
Pin Position System
easy to alignment of substrate quick loading, facilitate users to quickly find printing position and allow customers to quickly place materials.
Auto Thickness Sensor
pin sensor to measure thickness upto 20cm/7.87inch.

CJ-UVF2513ProHD uv printer vacuum suction system_

Four wind zone design

can open the area that needs suction at will, and the application is more flexible.

Adopt a new four-pipe process, simplify the pipeline, and the suction force is not reduced.

Jam detection sensor protect print heads

Automatic height measuring system
Automatically detect the suitable printing distance between the nozzle and the printing material. Accurate, efficient, convenient and fast, effectively avoid problems such as ink flying and blurred printing quality caused by incorrect printing height, ensure high-quality print output, effectively support bidirectional high-speed printing

Auto Thickness sensor
Automatically detects medias and sets correct print height
Easy to operate and user friendly
Manual thickness setting available

Ionizer to eliminate static electricity_

All Lifetime Service
About Jucolor After-sales Service

Jucolor Warranty and service guarrantee:
1.One year warranty, all lifespan service
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.

2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free, except for the print head

3. Convenient online consultation
The technician will keep online, No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.

4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it.

The main printing cost of uv printer is ink cost, 1 liter ink can print 50-65 sqm.

For example, printing an A3 size picture with CMYK+W+V 3 layers, the ink cost is about $0.36, and the A3 size painting for sale online up to $35, the wholesale pricing for as little as $3.

The CJ-UV9012pro uv printer can print about 18 pcs per hour, please think about how profit you can get every hour?

$576 profit per hour!!!

Unsere Kunden sind auf der ganzen Welt. In der UV-Druckerbranche ist JUCOLOR sehr professionell und führend. Wir verlassen uns auf unser solides Fundament und unser starkes After-Sales-Team, um in den Herzen vieler Kunden sehr gute Ergebnisse zu erzielen.

Our products are sold in more than 60 countries on five continents around the world. If you have any needs or doubts, we can give you corresponding praise. You are completely free from worries and can purchase our products at any time.

One year warranty

The printer has 1 year warranty, during this period, any parts are damaged, we will repair and replace new for you, except print head, all shipping cost of after-sale is our responsibility

One on one lifetime technical support

We established a professional engineers team, we will give you lifetime service. When you get the printer, our engineers team will set up a group to provide you with one on one technical support, guide you how to operate the printer step by step till you use well

Choose Jucolor, Choose quality and guarantee

Jucolor adopts latest technology, strict quality control for every parts before printer shipment, hope you can get a good cooperation experience with us.
