UV Printing on Wood Products Custom Wood Sign Printing

Short Description:






  • Print Size: 43*60cm/16.9*23.6 Inch
  • Print Head: 3pcs TX800/DX7 heads,fast printing
  • UV Inks: cmyk/cmyk,lc,lm, 6 white, 6 varnish
  • Best Platform: Vacuum adsorption platform
  • UV Printer Advantage: Automatic cleaning unit
  • Print height: 25.6 cm/10 inch
  • Ink consumption: 9-15ml per sqm
  • Print speed: 5-13 sqm/h
  • Product Detail

    uv printing machine

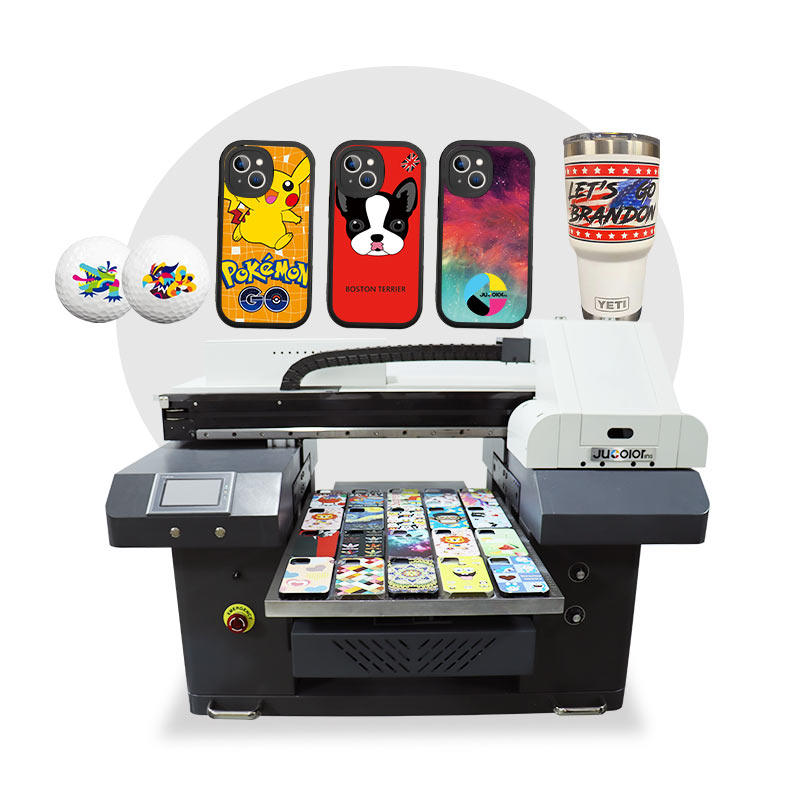

    CJ-UV4560D A2 uv flatbed printer can print on flat and rotary materials This A2 uv printer can print max printing size is 43*60cm and 25.6cm printing height. with three pcs Epson TX800 or DX7 print heads, can print CMYK, Lc,Lm white and varnish inks at the same time,fast uv printing machine. It can print on various items and wide applications, such as phone case, golf ball, metal, wood, acrylic, rotary bottles, USB disks, CD, bank card etc.

    uv printing on wood

    It's best for wood printing with 3D embossed three-dimensional golssy effect .no matter you want to print small text or personal photos,all can be printed out with high quality.

    Product Name CJ-UV4560D Digital A2 UV Printer Features 1.Accept 10 inch material height printing
    Machine Type Automatic Flatbed Small UV Inkjet Printer 2.Total 5 Ball-screws driver on Y-axis and  Z-axis
    Printer Head 3 PCS EPSON DX10(TX800)/E1600/DX7 Print Head 3.Rugged aluminum alloy machine structure
    Max Printing Size 43*60 CM/16.9*23.6 Inch 4.Aluminum alloy automatic cleaning unit
    Max Printing Gap 25.6 CM/10 Inch 5.LED touch control panel
    Height Adjustment Automatic with Sensor 6.Vacuum adsorption table with margin rule mark
    Ink Color CMYKCM+ 6 White+6 Varnish, 18 Colors 7.The UV light source can be adjusted
    Ink Type UV LED Curing Ink 8.With 3 pcs printing heads ,fast printing
    Ink System CISS Built Inside with Ink Bottle 9.Can printout with 3D emboss glossy effect
    Ink Supply 500ml/Bottle 10.Finished product is water and scratch proof
    Ink Consumption 9-15ml/SQM. Operation System Microsoft Windows 98 / 2000/XP/Win7/Win8/Win10
    UV Curing System LED UV lamp (Water Cooling) Languages English/Chinese
    RIP Software Maintop 6.0 or PhotoPrint DX Plus Interface USB2.0/3.0 Port
    File Format EPS/TIFF/PSD/BMP/JPG Driving Power 110 V/ 220 V
    Printing Method Drop-on-demand Piezo Electric Inkjet Power Consumption 850 W
    Printing Resolution 720*1080 dpi,720*1440dpi, 720*2160 dpi Working Environment 20 ~ 28 ℃ HR40-60%
    Printing Speed About 85 Seconds for A4 Size (with 1440 dpi ) Power Requirement 50/60HZ 220V(±10%)<5A
    Printing Direction Smart Bi-directional Printing Mode Machine Dimension 110*95*80 CM
    Printing Quality True Photographic Quality Packing Size 115*125*94 CM
    Applicable Materials Pen,Phone Case,Bottle,Mug,Ceramic Tile,Lighter,Gift Box,USB,Card Machine Net Weight 115 KG
    Metal, Wood, Glass, Plastic, Leather, PVC, Marble,Paper,TPU,Etc Gross Weight 210 KG
    Media Feeding System Auto/Manual Packing Plywood Case

    uv led printers

    uv inkjet printer

    Jucolor A2 uv led printer with vacuum adsorption platform which can be controlled by touch screen;it's accept medias thickness up to 25.6cm ,so that we can print most of medias like the suitcase football wood box gift box so one.The platform is sturdy and can bear the printing of items of different weights,so you can print which you want ,like the ceramic tile glass metal plate uv printing

    Automatic uv printer

    Special design, made by aluminum alloy, anti-corrosion, anti-oxidation, never deformed. automatic cleaning with motor and pump, can adjust cleaning position automatically, no need adjust by hand, can match print head well, prevent the print head from clogging.

    Jucolor A2 UV flatbed printer with 3 pcs print heads one pass fast printing for business.

    1

    HI-WIN guide rail and screw guide
    Stout 4 article straight rail up and down, smooth, stable ,make sure all position of the platform has same height, so can accept Bi-direction printing.also with long lifetime

    2

    Jucolor A2 UV Printer body frame & platform base which ​is thickened aluminum profile to ensure the machine stable working.

    3

    43*60 cm printing size of vacuum adsorption table with margin rule mark which can allow printing on the flexible media also, more productively.

    9

    CJ A2 UV printer uses HI-WIN 3.5 cm straight square rail on X axis which drive the carriage move more high precision.

    8

    From Germany belt high precision and anti-friction.Well protect lines and water pipes, no deformation for decades using.

    10

    Optional Adjustable cylindrical print tooling supports digital UV printing on bend surface, cylinder objects and balls.

    6

    Printer head bracket, all-aluminum alloy, stable corrosion resistance, long life. Support 3 pcs DX10/DX7 heads,one-pass printing for all color CMYK white varnish.

    7

    Automatic inks protection suction unit, automatic wiping the print head and keeping it wet, automatic flushing when power on and keep wet when off, which is best for preventing the print head clog during idle and after printing.

    4

    Ink alarm system 500ml/bottle, The white ink circulation system work constantly to keep white ink from sediment and last the lifespan of the print head.

    12

    Leadshine servo motor, Lower noise, and heating.smoother operation high printing accuracy Strong anti-interference capability and long service life.

    13

    Jucolor popular A2 UV led printer with LED control display screen is easier to operate and control the working status of the machine than the button screen.

    15

    Water-cooled circulation system which ensures that the LED lamp maintains a constant temperature, extending the LED lamp to 40,000 hours, avoiding high temperature hurt.







    printer

    APPLICATIONS & SAMPLES

    You can print any medias if you want .please contact us to check how to printing .We will prodivd the printing solutions for you .Some special shape need the custom jig or with coating liquid or with gold effect ,we will do our best to try it and know most of the printer technical.contact us if you meed problem or any questions.

    uv printing sample

    high quality uv printing

    Jucolor hot sale flatbed A2 UV printer with 3 pcs print heads ,one pass printing for 3d embossed glossy effect printing on wood glass metal phone case leather ,tiles, acrylic suitcase (our printer can accept 25.6cm media thickness) , high quality of uv led printer for business custom printing machine.

     printer

    CUSTOMERS FEEDBACK

    customer feedback



    good feedback printer

    We have feedback from customers in the United States, Russia, Canada, Ghana, the Philippines, Italy, Israel, Poland and other countries. You can contact us to get more local market conditions.

    printer

    ABOUT Us

    facotry uv machine

    uv printe good service

    printer for money

    uv company

    * We are original manufacturer who design and produce our printers,our own professional engineer team knows well about
    * One to one professional technical operation free training ,remote guidance maintenance,online technical service is more speedy and efficiency
    * Long-term supply of high quality oniginal ink and spare parts.

    Looking forward to your letter
